Lead time1 to 2 weeks
🎁 Free Proximity Dot with any smart lock. Add a Proximity Dot to your order and it’s free at checkout.
Ships in 5 to 7 business days. Free delivery New Zealand wide. Questions? Email sales@entrancehandles.co.nz.
The KS280 is our full-feature smart lever lock - keypad, RFID card, Bluetooth app, proximity unlock, mechanical key, anti-lock button, and an extra-large 280 mm panel that makes a statement on a main entry door.
Managed through the TTLock app, the KS280 gives you everything: passcode sharing, temporary access for guests or trades, full access logs, and an anti-lock button on the inside. The aluminium body comes in matte black or brushed silver.
Built for NZ conditions. IP65 dust- and water-resistant for full exterior exposure - survives anything the NZ weather throws at it. Backed by Keyless Solutions' 2-year manufacturer warranty, with any claim handled through us.*
Key features
- TTLock app (iOS & Android) passcode sharing, eKeys, access logs, remote management
- Temporary passcode generator perfect for Airbnb, trades, deliveries
- Anti-lock button (inside)
- Hidden mechanical key cylinder for emergency override
- USB emergency power port
- IP65 dust- and water-resistant, built for NZ conditions
- Powered by 4 × AA batteries (8,000 to 10,000 unlocks / 8 to 12 months)
- Bluetooth 4.0; Wi-Fi gateway compatible
- 2-year Keyless Solutions manufacturer warranty, claims handled through Entrance Handles*

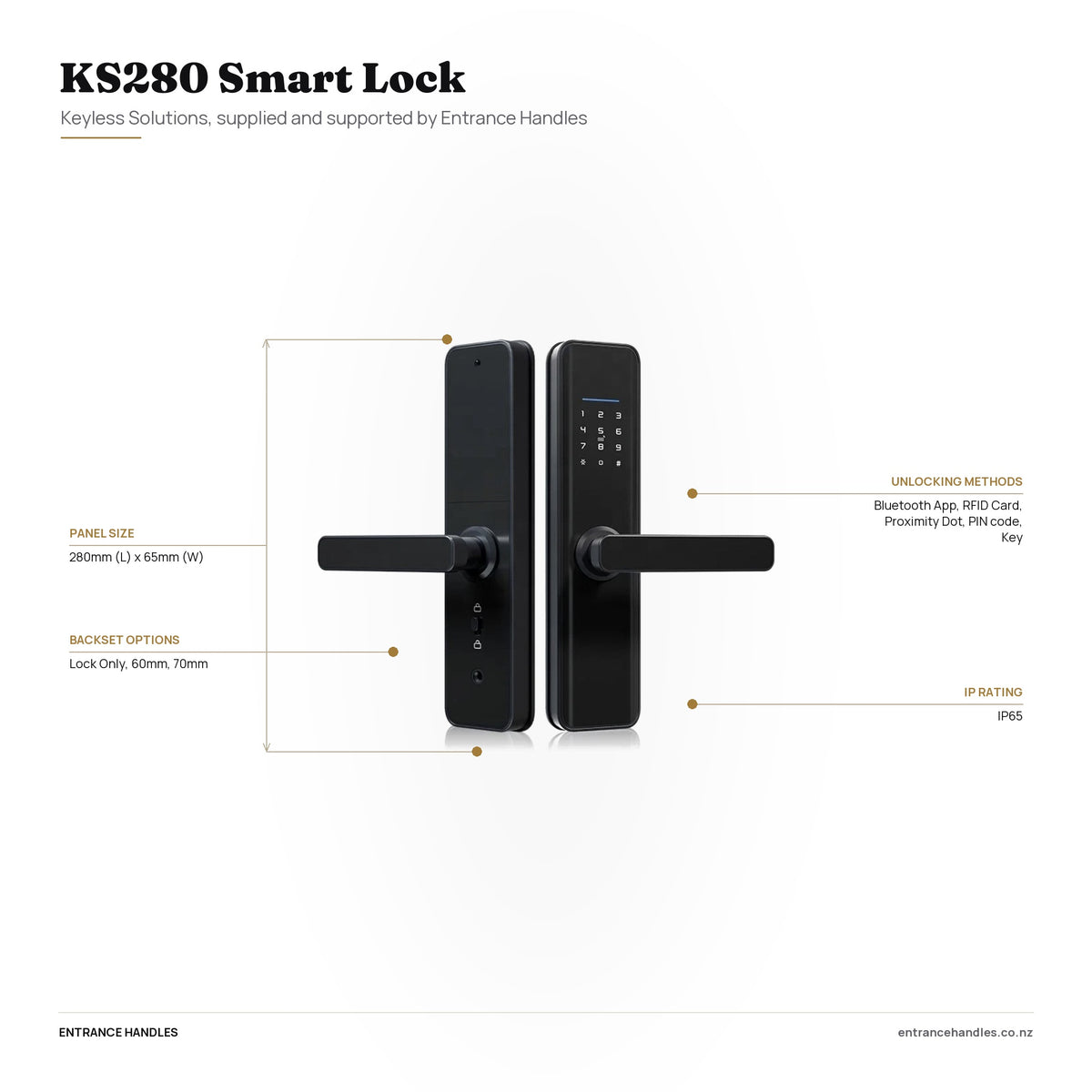

Specifications

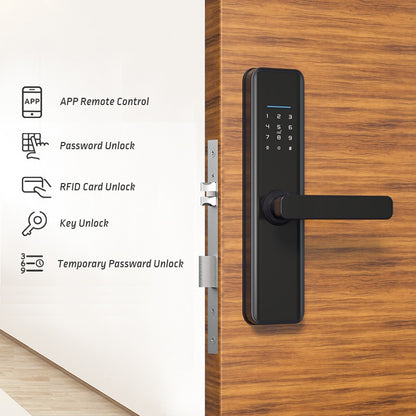

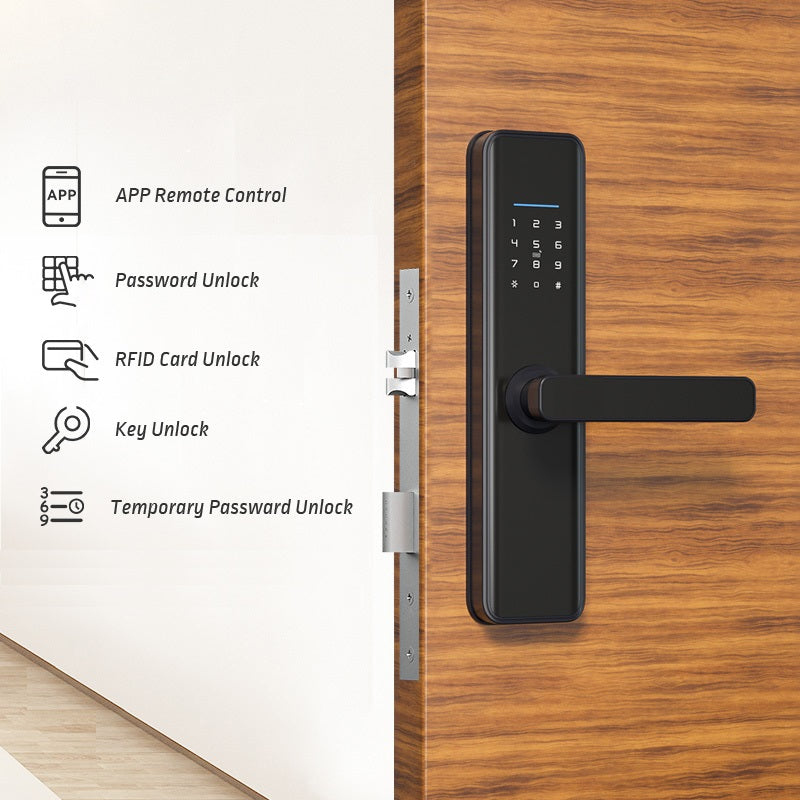

- Unlocking methods: Bluetooth App, RFID Card, Proximity Dot, PIN code, Key
- App: TTLock (iOS + Android)
- Material: Aluminium Alloy
- Colour: Black or Silver

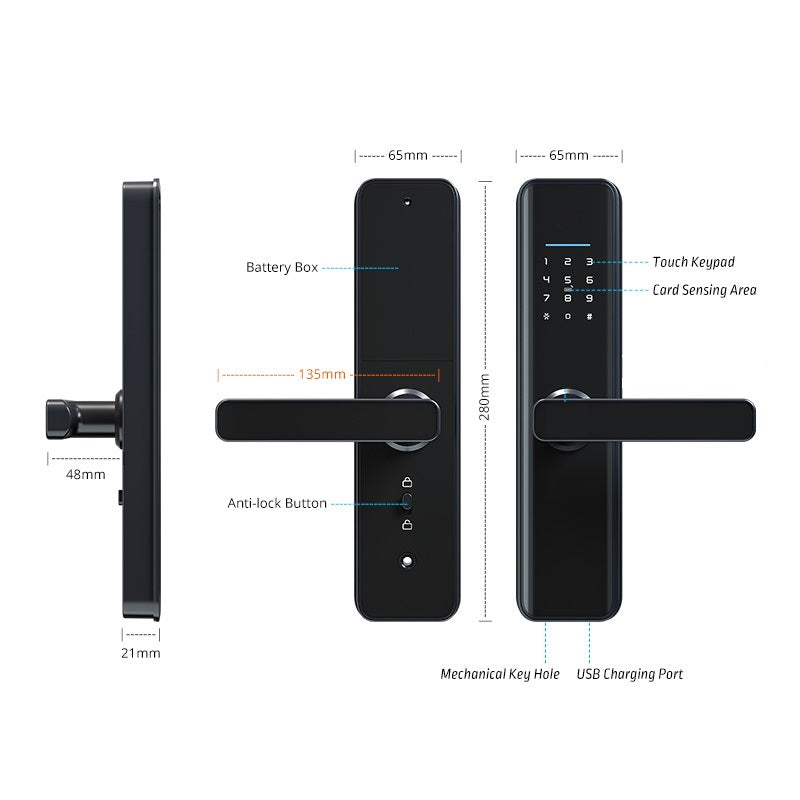

- Panel size: 280mm (L) x 65mm (W)
- Backset options: Lock Only, 60mm, 70mm
- Communication: Bluetooth 4.0 or above
- Supported systems: Android 4.4+, iOS 7.0+
- Operating temperature: -10°C to +50°C
- Operating humidity: 10% to 95%
- Power: DC6V, 4x AA alkaline batteries (Duracell Industrial recommended)
- Battery life: 8,000-10,000 unlock operations (8-12 months)

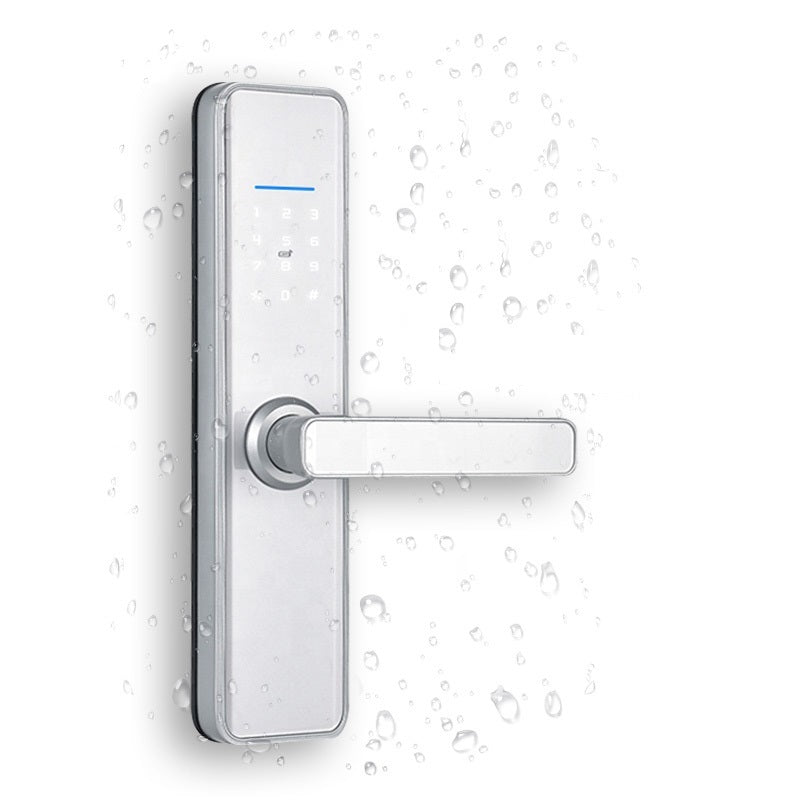

- IP rating: IP65
- Wi-Fi gateway: Compatible (sold separately for remote access)
- Five ways to unlock: Bluetooth app, RFID card, proximity dot, PIN code or physical key

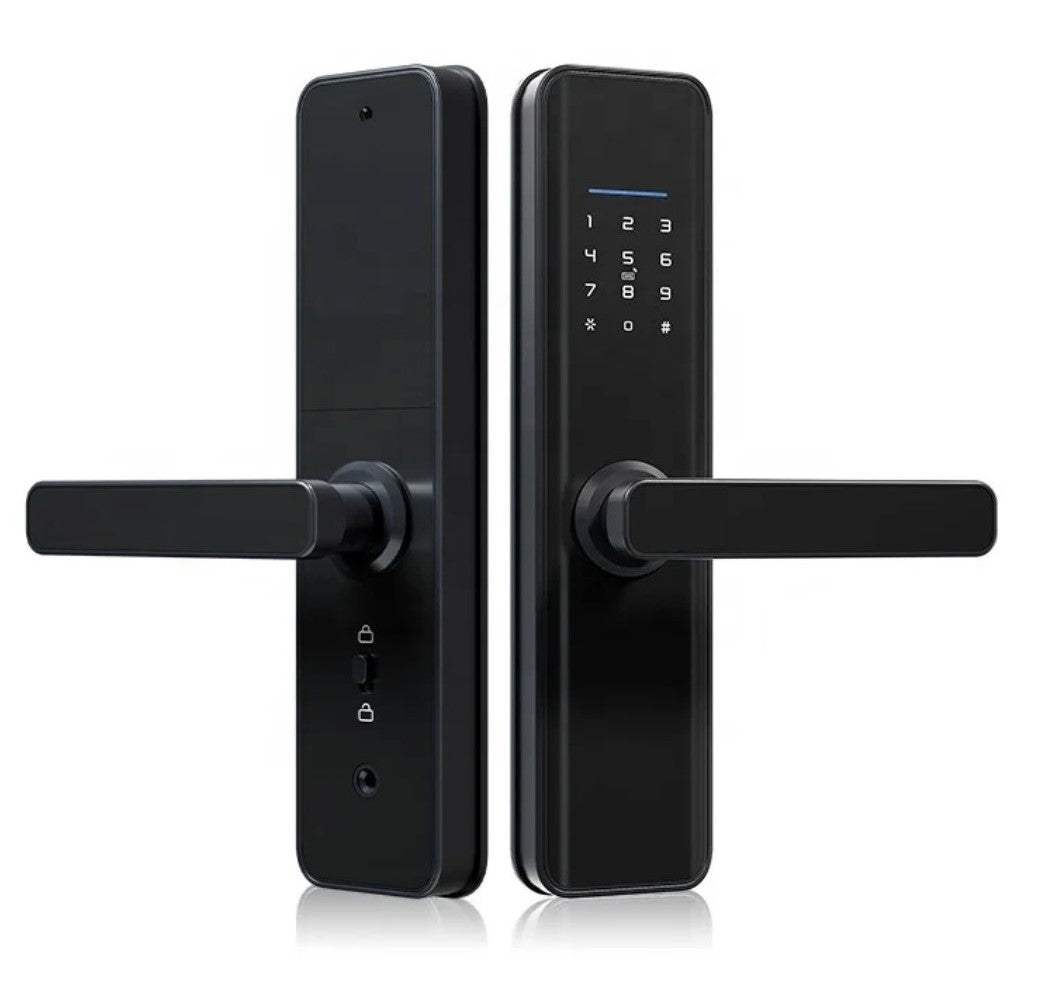

- Finish: Matte black or brushed silver
Installation
The KS280 fits any standard NZ entry door with a 60 mm or 70 mm backset mortice. Select the "Lock Only" option if you already have a compatible mortice case, or choose your backset and we'll ship a matched KSE85 mortice with the lock.
- Confirm your door's backset (distance from door edge to centre of the spindle)
- Choose Lock Only, 60 mm or 70 mm at checkout
- Existing mortice pocket may need minor adjustment - fits most timber and aluminium doors
- Pair with the TTLock app in under 5 minutes after install
Not sure of your backset? It’s the distance from the edge of the door to the centre of the lock cylinder. Measure yours before choosing, or contact us and we’ll help you spec it.
*The warranty is Keyless Solutions' and covers the lock mechanism and electronics for 2 years. Batteries excluded. Contact us first and we handle the claim with Keyless.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Front and rear lock panels with levers
- Mounting hardware
- 2x mechanical keys
- 2x RFID cards
- Mortice case (60mm and 70mm variants only)
- Instruction manual
- Screwdriver
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
