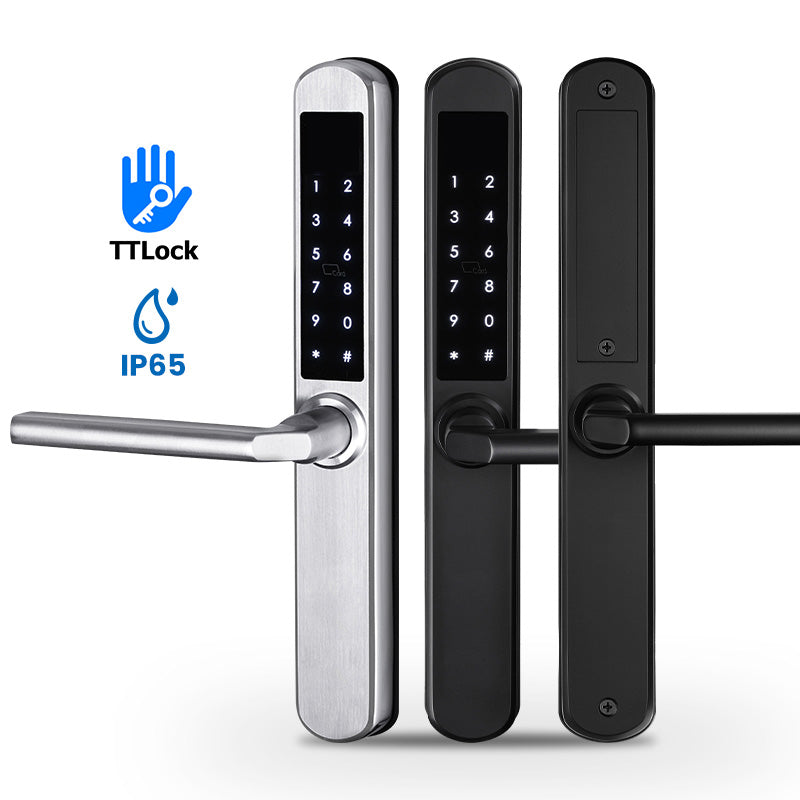

• KS300 Slimline Smart Lock in brushed nickel and black

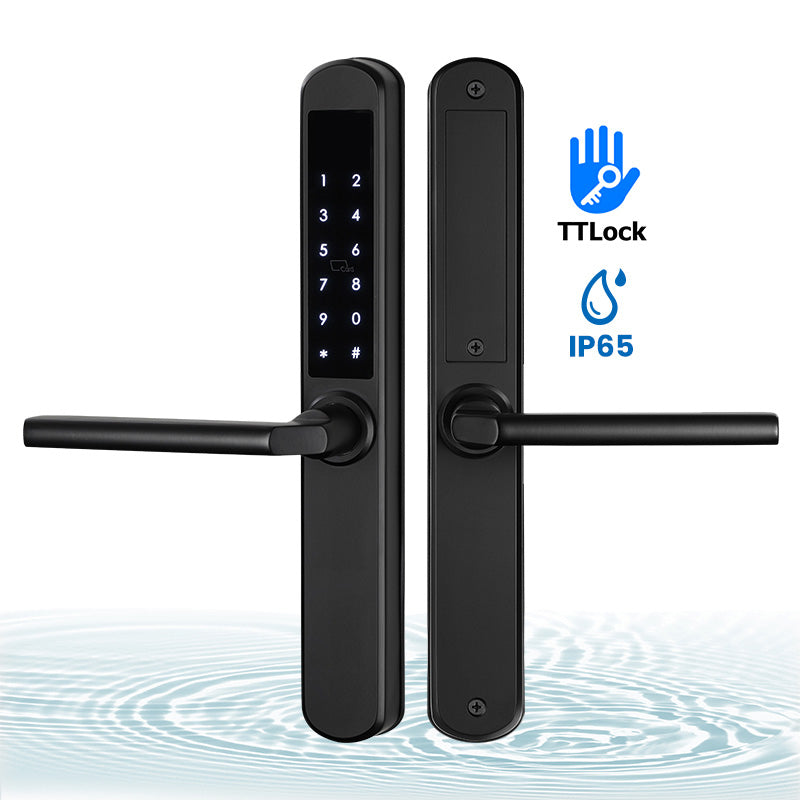

  • KS300 Smart Lock in matte black with TTLock and IP65 rating

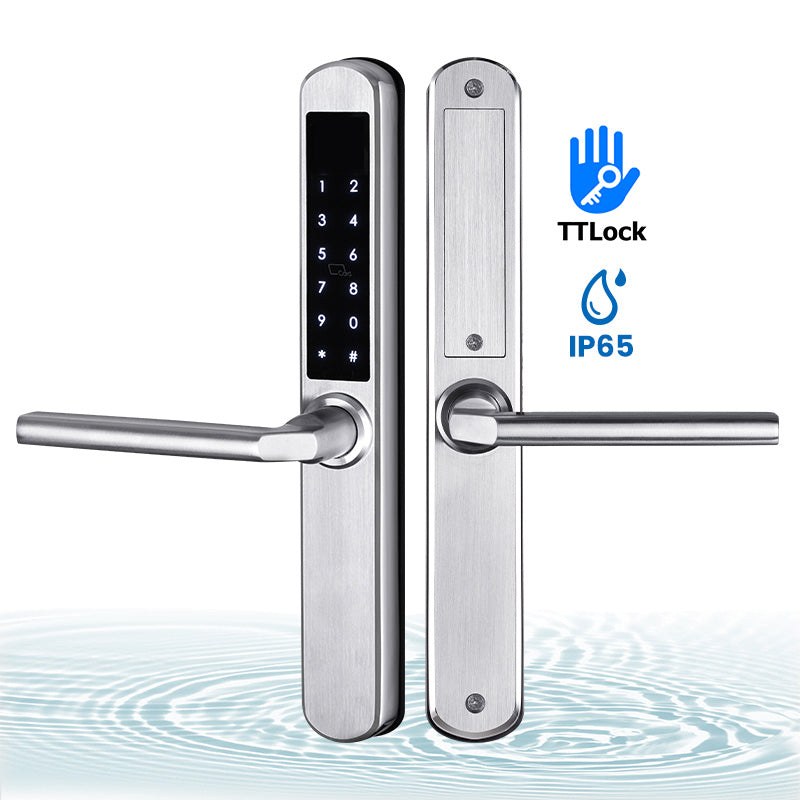

  • KS300 Smart Lock in 304 brushed stainless steel

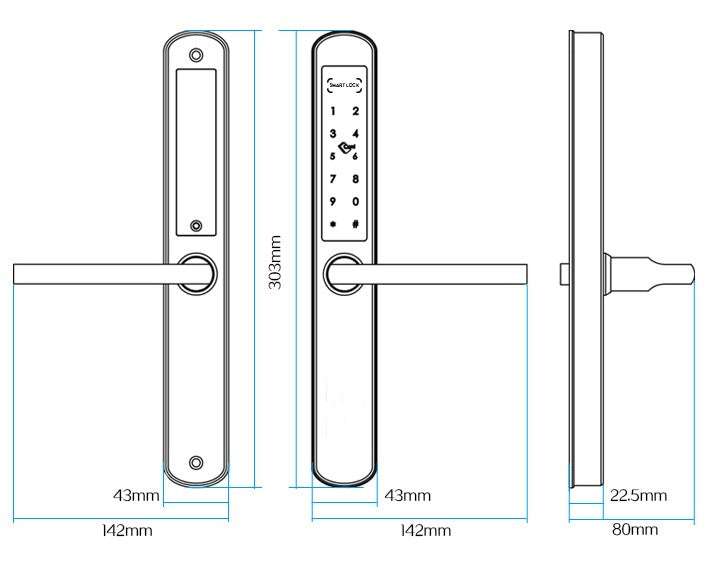

  • KS300 dimensions: 303mm tall x 42mm wide x 22.5mm depth — slim profile for narrow stiles

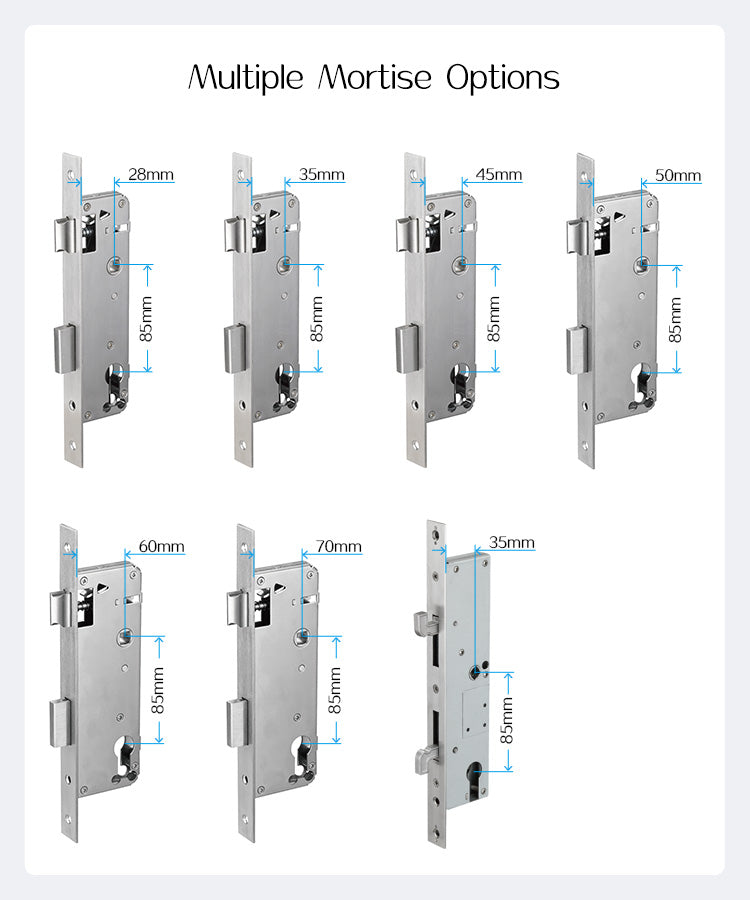

  • KS300 mortice backset options: 28mm, 35mm, 45mm, 50mm, 60mm, 70mm and sliding 35mm

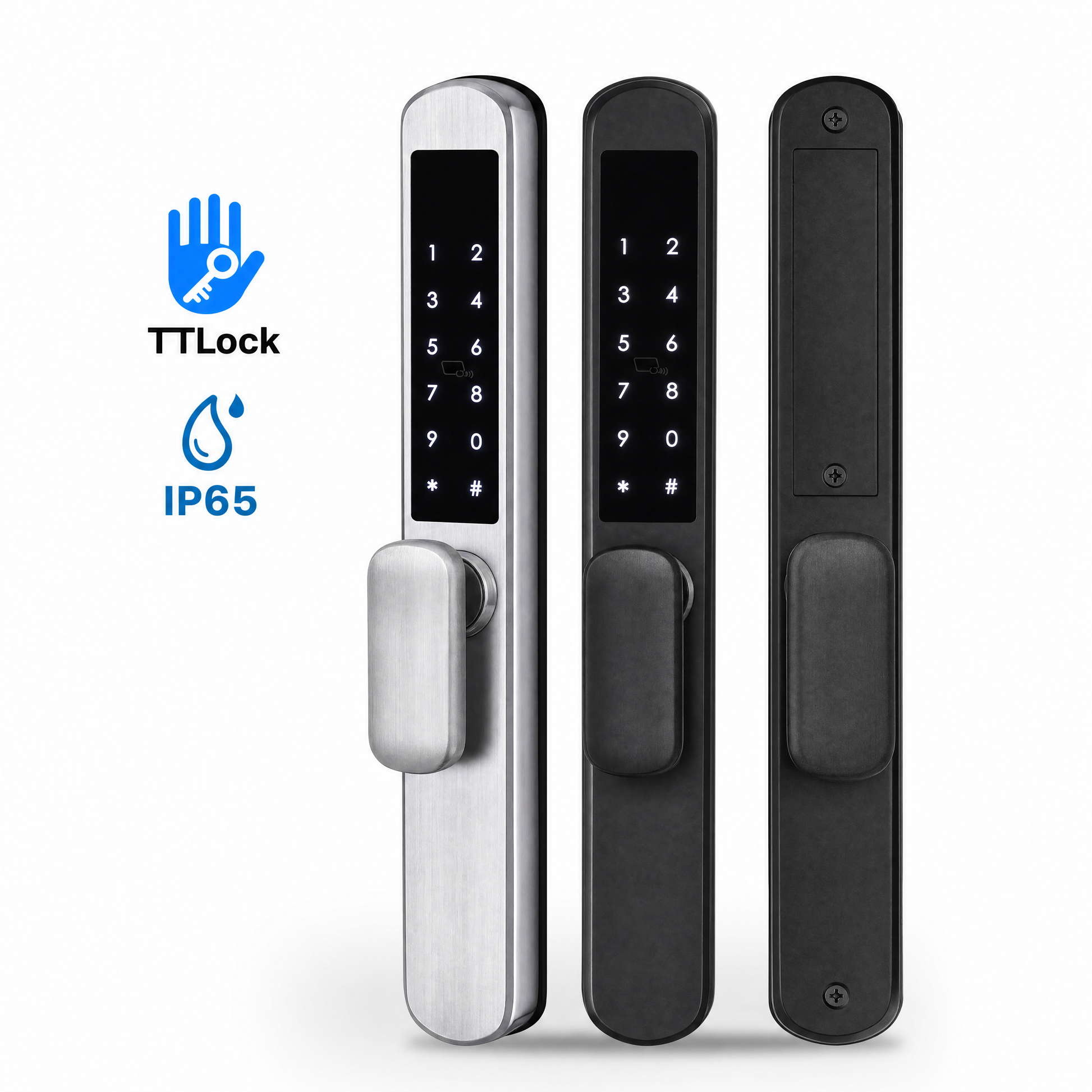

  • KS300 Smart Lock in silver and black with TTLock and IP65 ratings

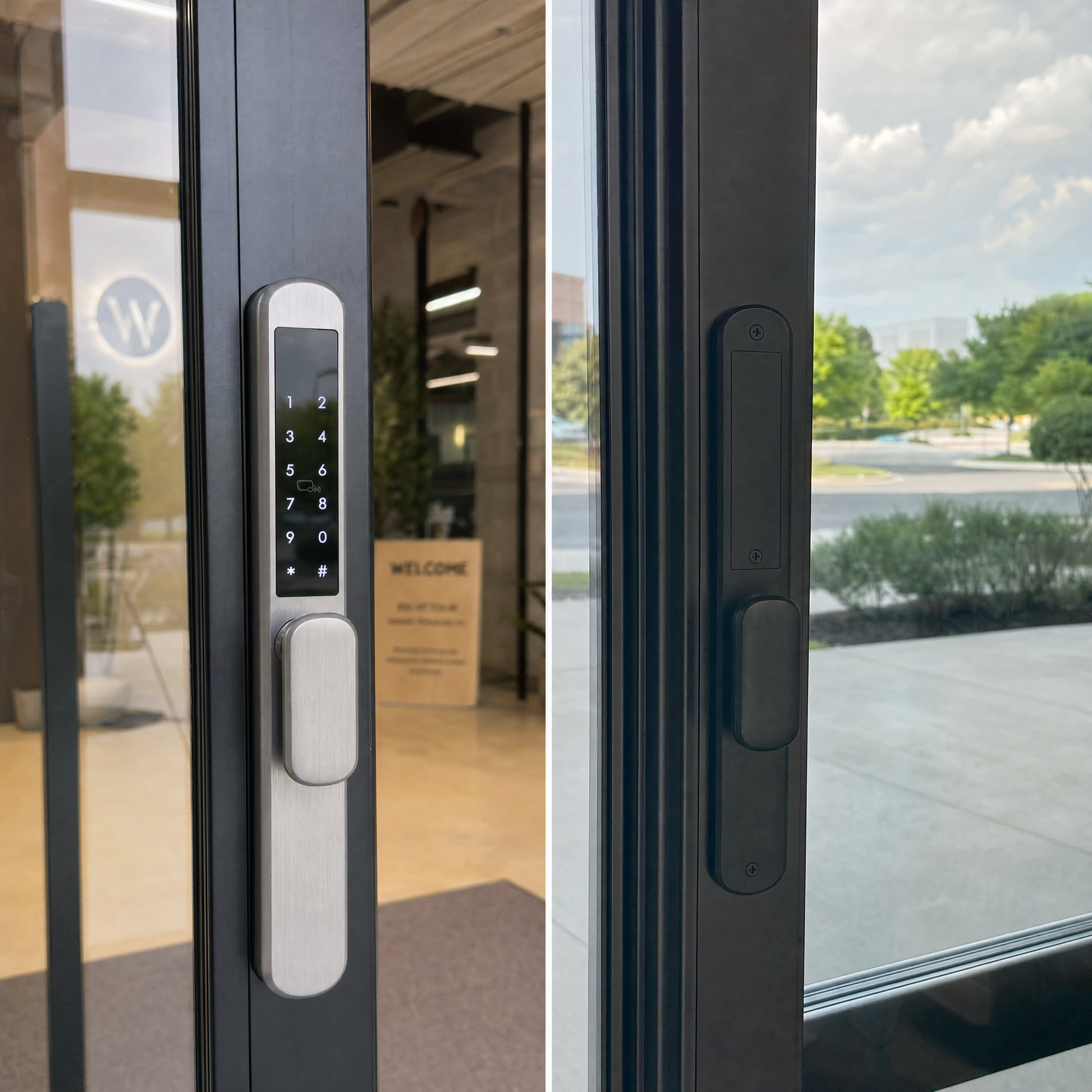

  • KS300 Smart Lock installed on aluminium glass door

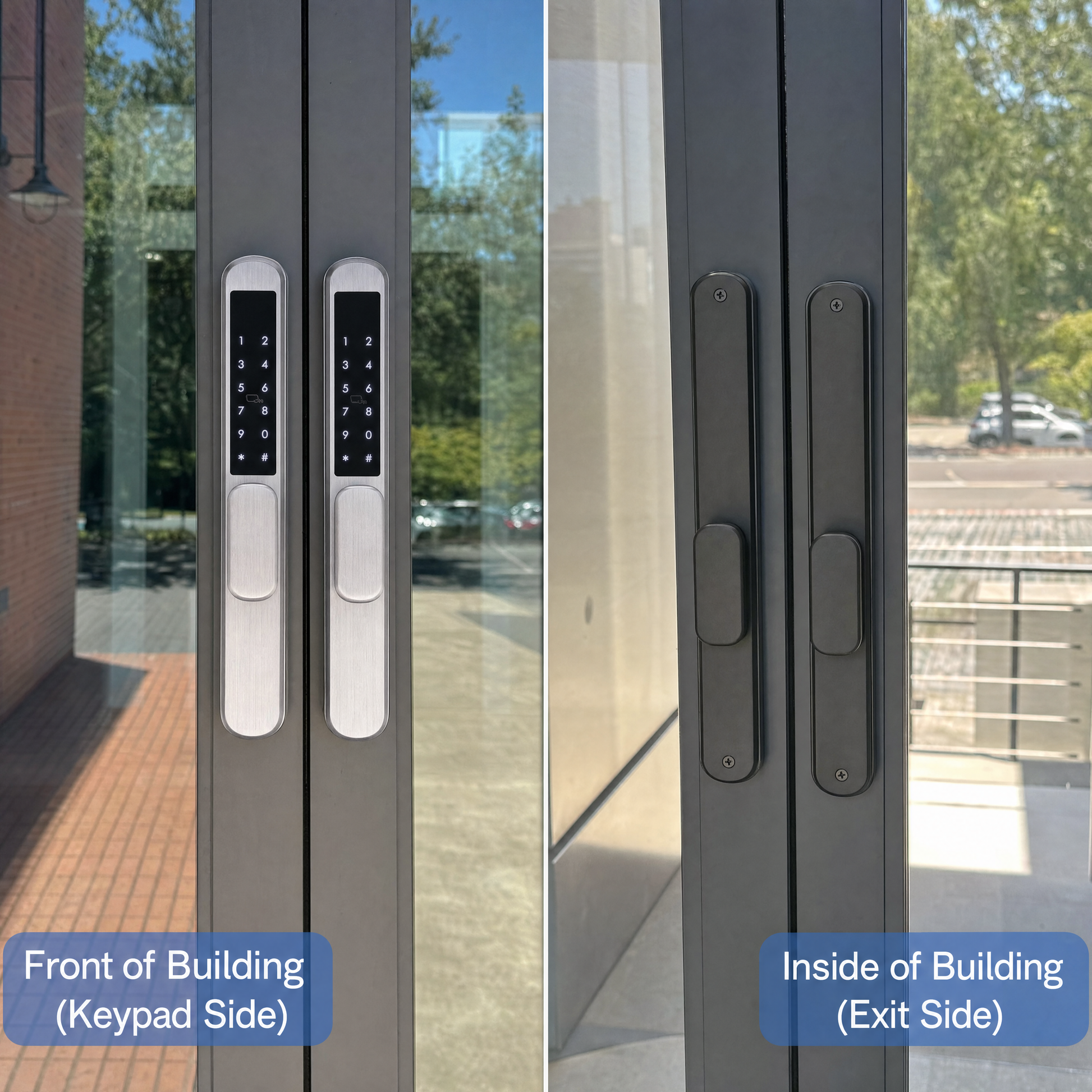

  • KS300 Smart Lock on dual glass entrance doors

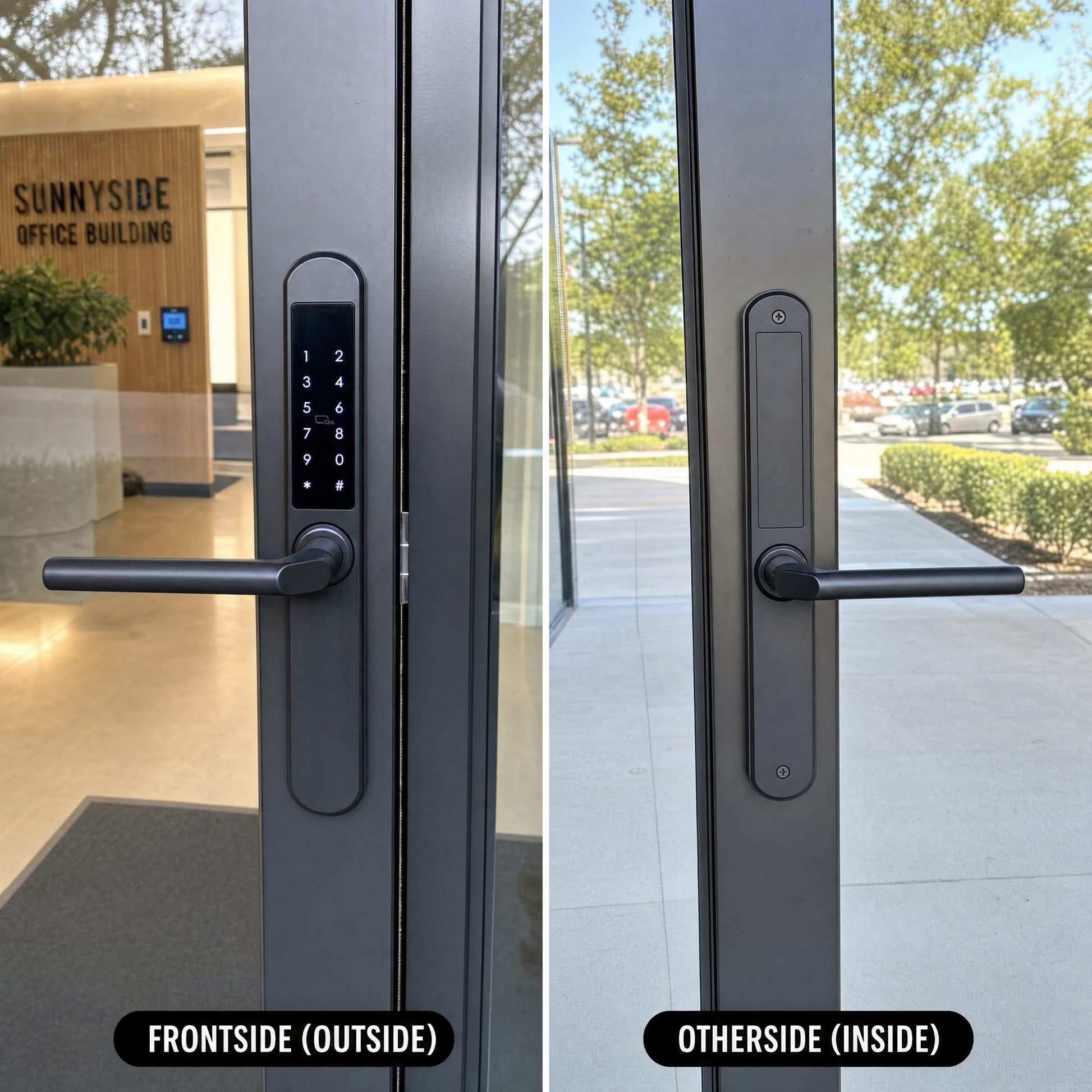

  • KS300 Smart Lock close-up on aluminium entrance door

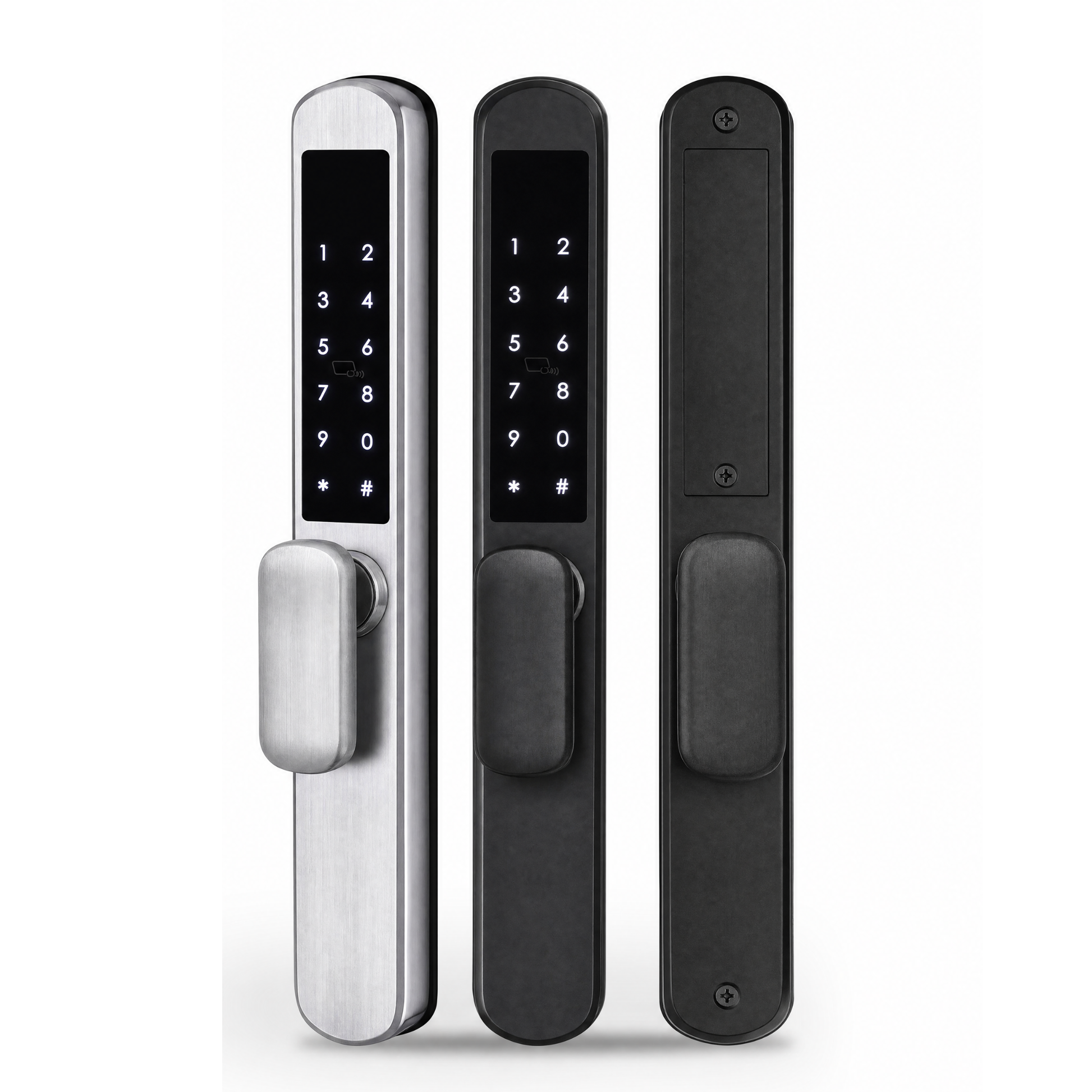

  • KS300 Smart Lock - 3-finish product lineup (silver, black keypad, plain black)
1 10

Keyless Solutions

KS300 Smart Lock

KS300 Smart Lock

$578.39 NZD
$578.39 NZD
Sale Sold out
Taxes included.
Colour
Backset
Have a question? Submit an enquiry › Ask us anything before you buy — installation, sizing, lead times, compatibility.

🔔 Currently being restocked. Place your order now to reserve from the next shipment — we'll email you the ETA and ship as soon as stock lands. Questions? Email hello@entrancehandles.co.nz.

The KS300 is our slimline smart lock — engineered for the narrow stiles found on french doors, aluminium joinery and sliding doors. A 303 × 42 mm panel squeezes into spaces no standard smart lock can reach, with the full TTLock feature set behind it.

Managed through the TTLock app, the KS300 brings keypad, RFID card, Bluetooth app, proximity unlock and a mechanical key backup to doors that previously couldn't fit a smart entry system. The slim profile pairs cleanly with both aluminium and timber construction.

Built for NZ conditions. IP65 dust- and water-resistant for full exterior exposure on covered or uncovered entries. Backed by a 2-year manufacturer warranty.*

Key features
  • Slimline profile — fits narrow stile doors that standard smart locks can't
  • Five ways to unlock: Bluetooth app, RFID card, proximity dot, PIN code or physical key
  • TTLock app (iOS & Android) — passcode sharing, eKeys, access logs, remote management
  • Hidden mechanical key cylinder for emergency override
  • Material: Aluminium alloy (Black) or 304 stainless steel (Brushed Nickel)
  • Finish: Matte black or brushed nickel
  • Panel size: 303 × 42 mm
  • IP65 dust- and water-resistant — built for NZ conditions
  • Powered by 4 × AAA batteries (8,000–10,000 unlocks / 8–12 months)
  • Bluetooth 5.0; Wi-Fi gateway compatible
  • 2-year manufacturer warranty*

Choose your backset:

The KS300 supports a wider range of mortice backsets than any other lock in the range — 30 mm to 60 mm for standard hinged doors, plus dedicated sliding-door options at 28, 35 and 45 mm. Select "Handle Only" if you already have a compatible mortice in place.

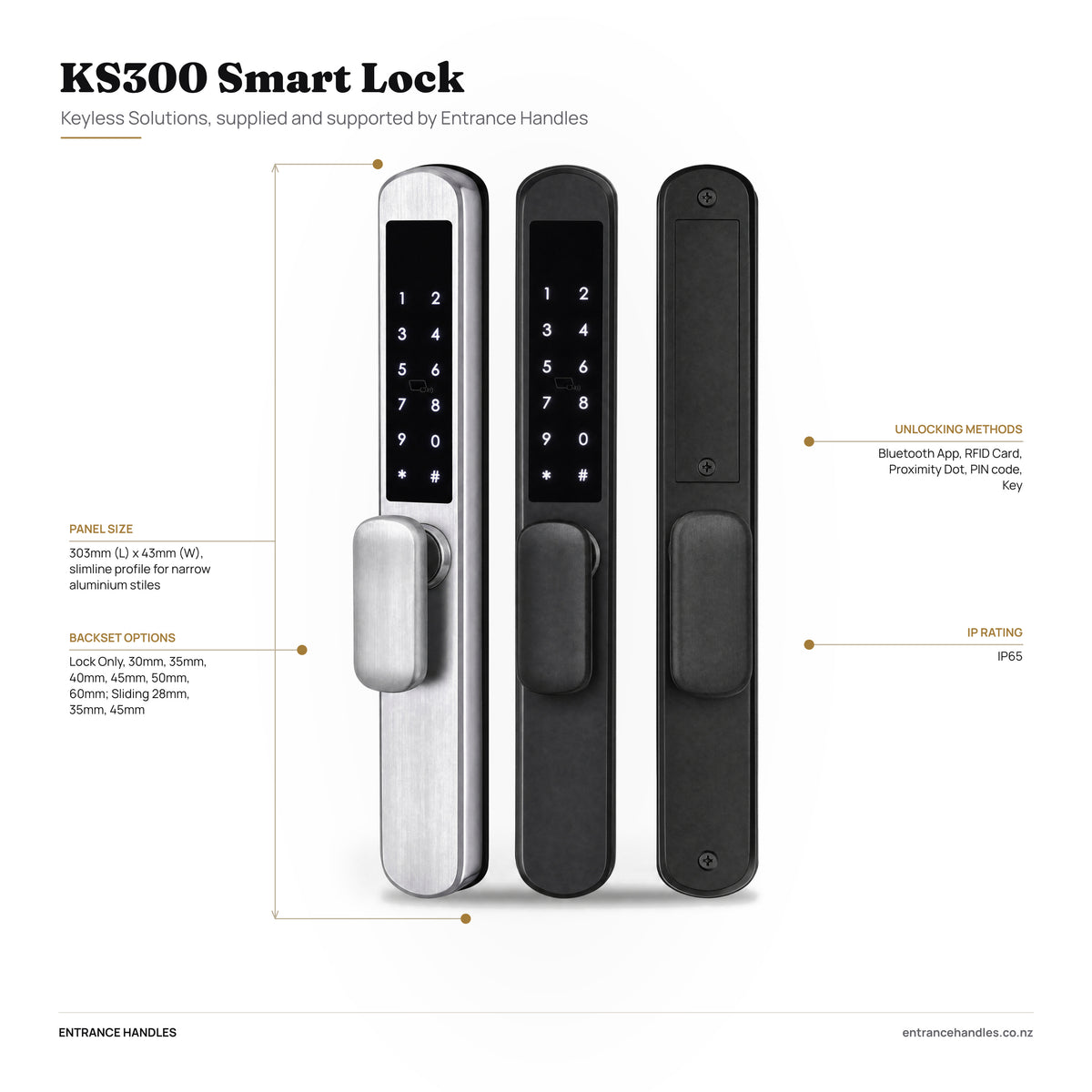

Full specifications
  • Unlocking methods: Bluetooth App, RFID Card, Proximity Dot, PIN code, Key
  • App: TTLock (iOS + Android)
  • Material: Aluminium Alloy / 304 Stainless Steel
  • Colour: Black or Brushed Nickel
  • Panel size: 303mm (L) x 42mm (W) - slimline profile for narrow aluminium stiles
  • Backset options: 0mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm; Sliding 28mm, 35mm, 45mm
  • Communication: Bluetooth 5.0 or above
  • Supported systems: Android 4.4+, iOS 7.0+
  • Operating temperature: -10°C to +50°C
  • Operating humidity: 10% to 95%
  • Power: DC6V, 4x AAA alkaline batteries (Duracell Industrial recommended)
  • Battery life: 8,000-10,000 unlock operations (8-12 months)
  • IP rating: IP65
  • Wi-Fi gateway: Compatible (sold separately for remote access)
Installation
  • Confirm your door type (standard hinged or sliding) and existing backset
  • Choose your backset at checkout — we'll ship the matched KSE85 mortice case with the lock
  • Existing mortice pocket may need minor adjustment
  • Pair with the TTLock app in under 5 minutes after install
What's in the box & warranty

What's in the box: Front and rear panels with levers, mounting hardware, 2× mechanical keys, 2× RFID cards, mortice case (all variants except Handle Only), instruction manual, screwdriver.

*Warranty applies to the lock mechanism and electronics. Batteries excluded.
