Lead time1 to 2 weeks
Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

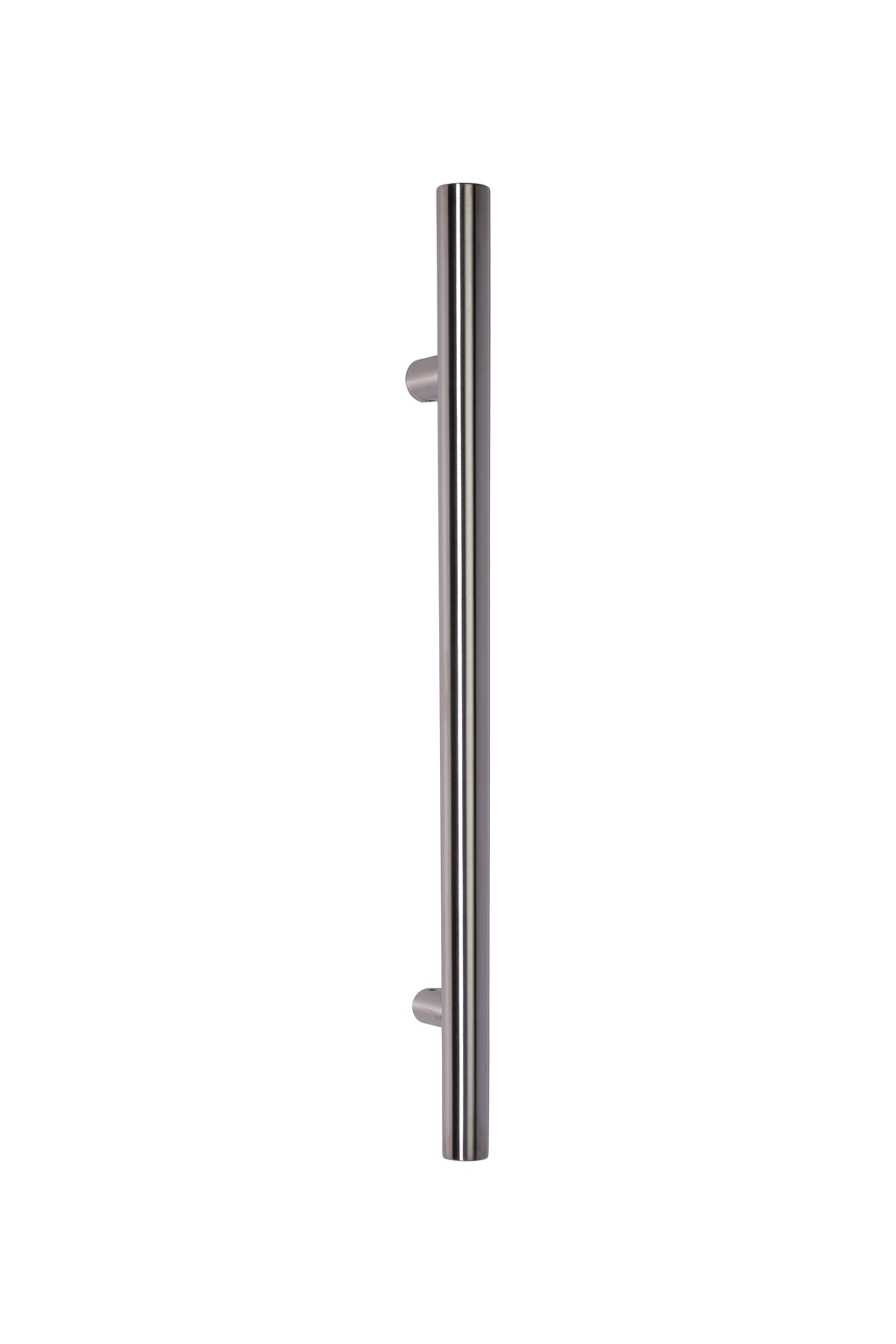

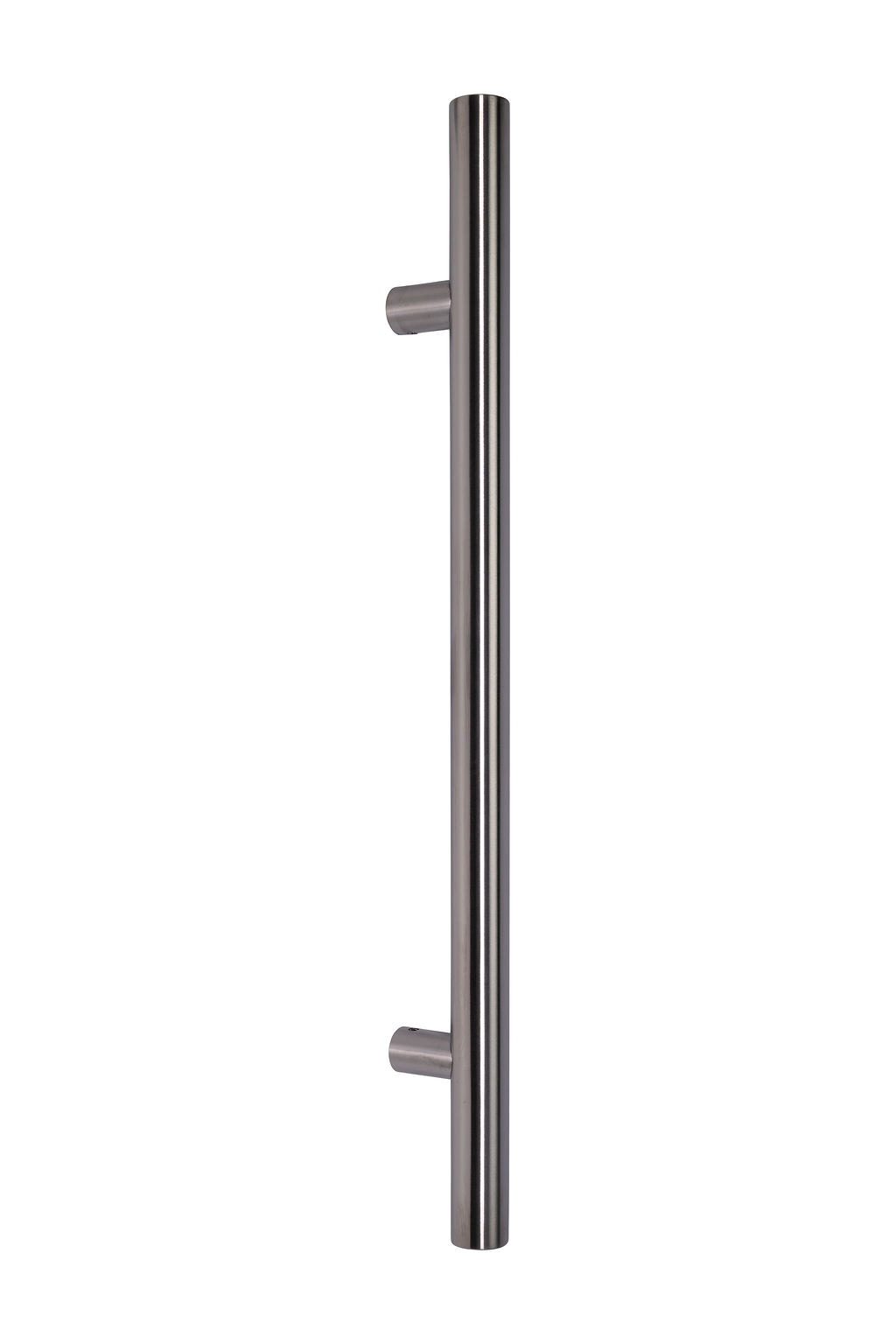

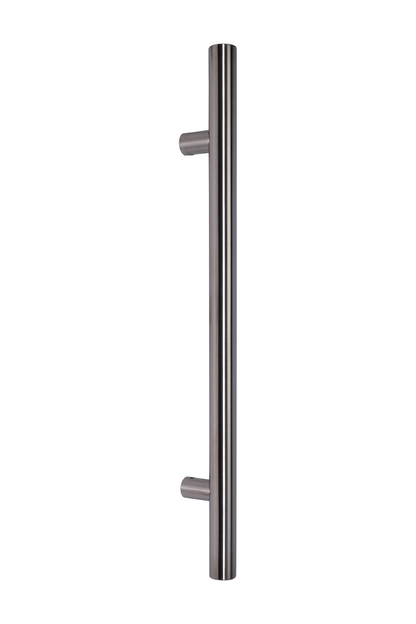

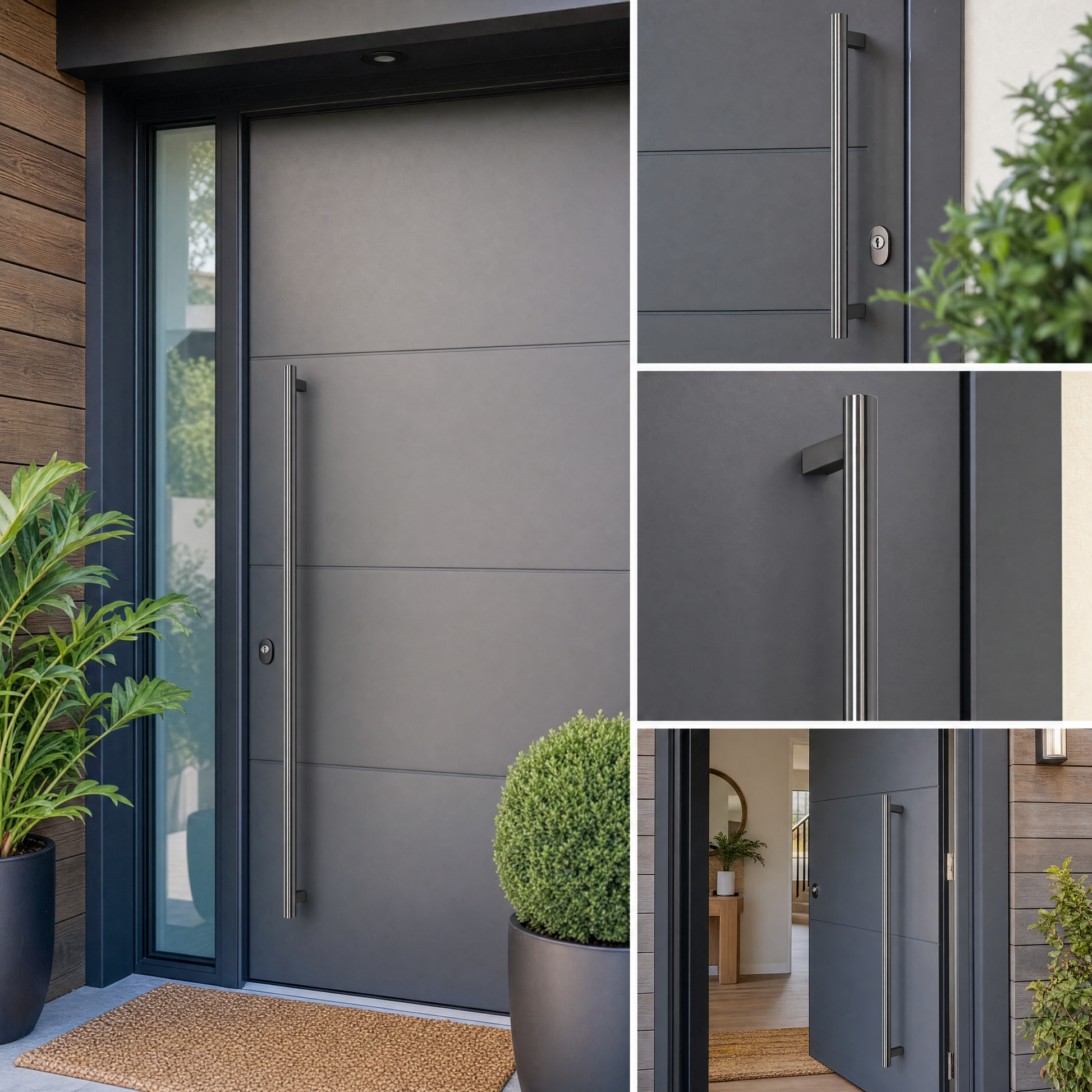

This straight tubular pull handle offers a timeless, minimalist look with the strength and reliability of 316 marine-grade stainless steel. Built to withstand coastal environments and heavy daily use, it’s a durable choice for both residential and commercial entrances.

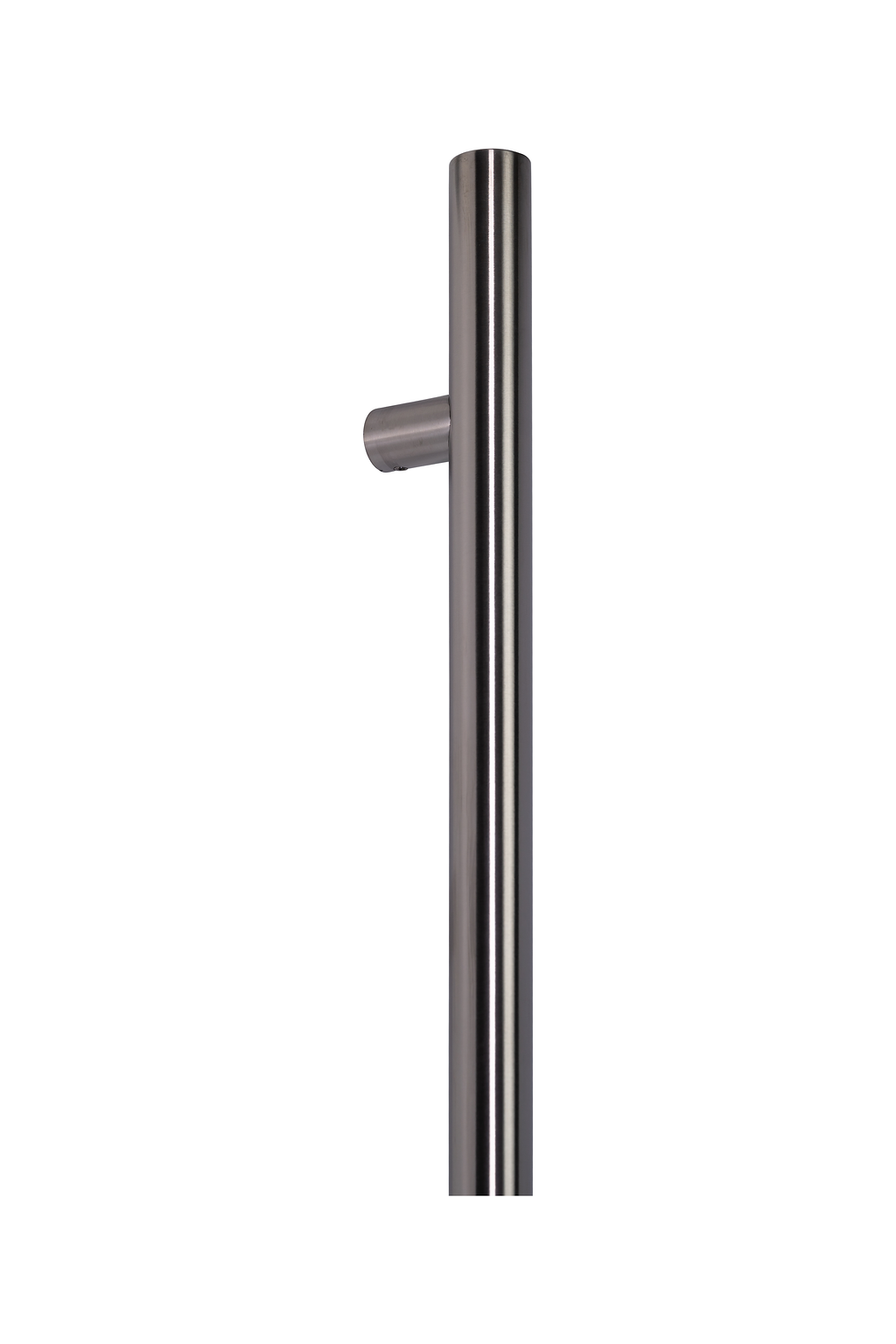

The 32 mm diameter tube provides a comfortable, full-hand grip, while the extended overhang at each end gives the handle a refined, balanced appearance. The straight-line design keeps the aesthetic clean and modern, making it suitable for contemporary timber, aluminium, and glass doors.

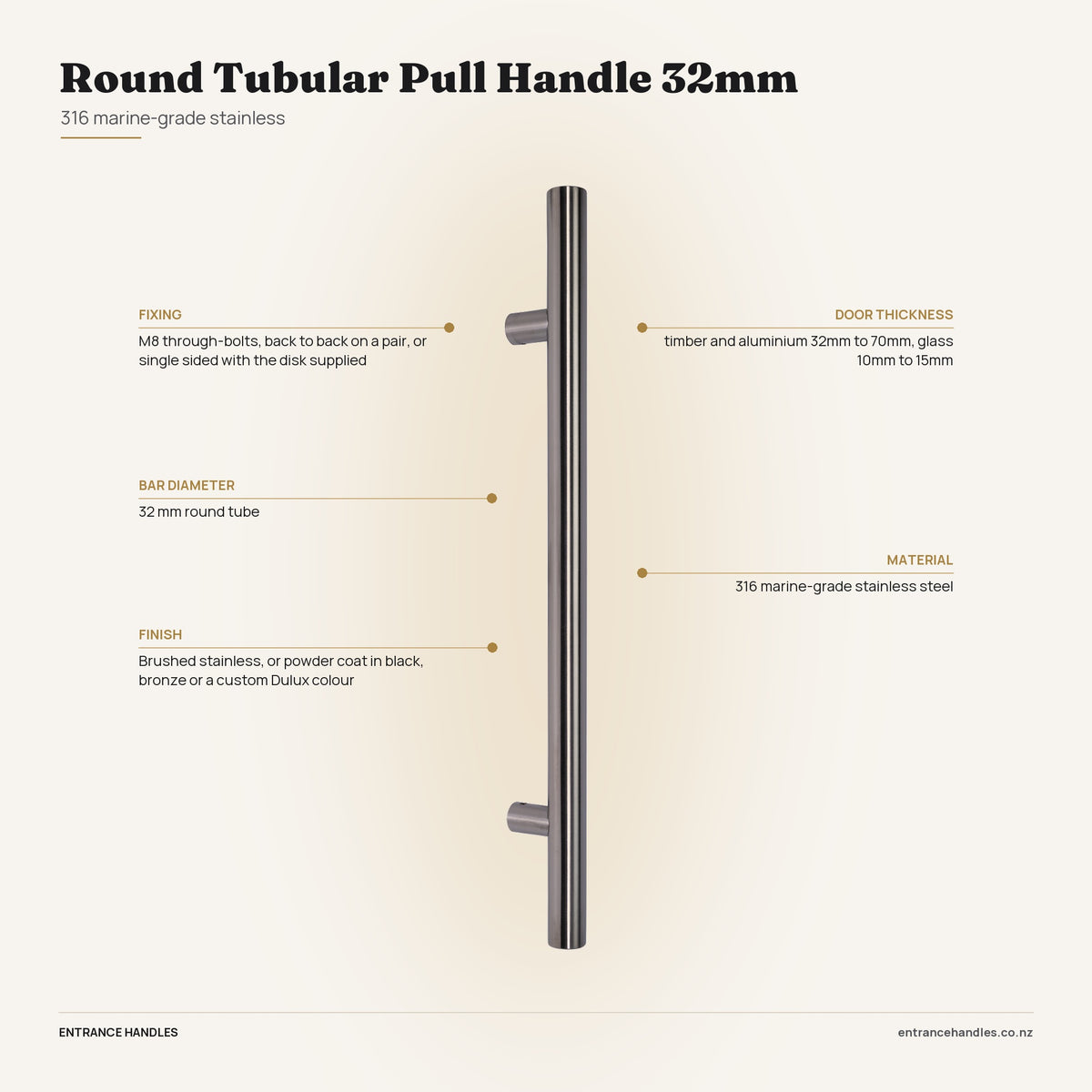

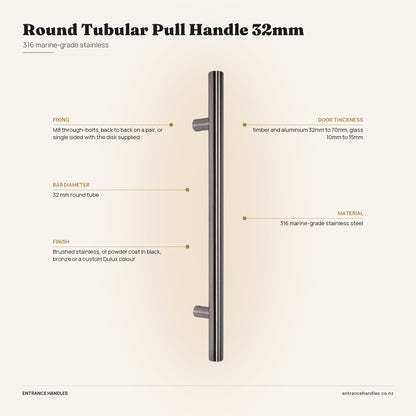

Specifications
- Material: 316 marine-grade stainless steel
- Accessibility: Compliant to AS 1428.1-2009 Design for Access and Mobility

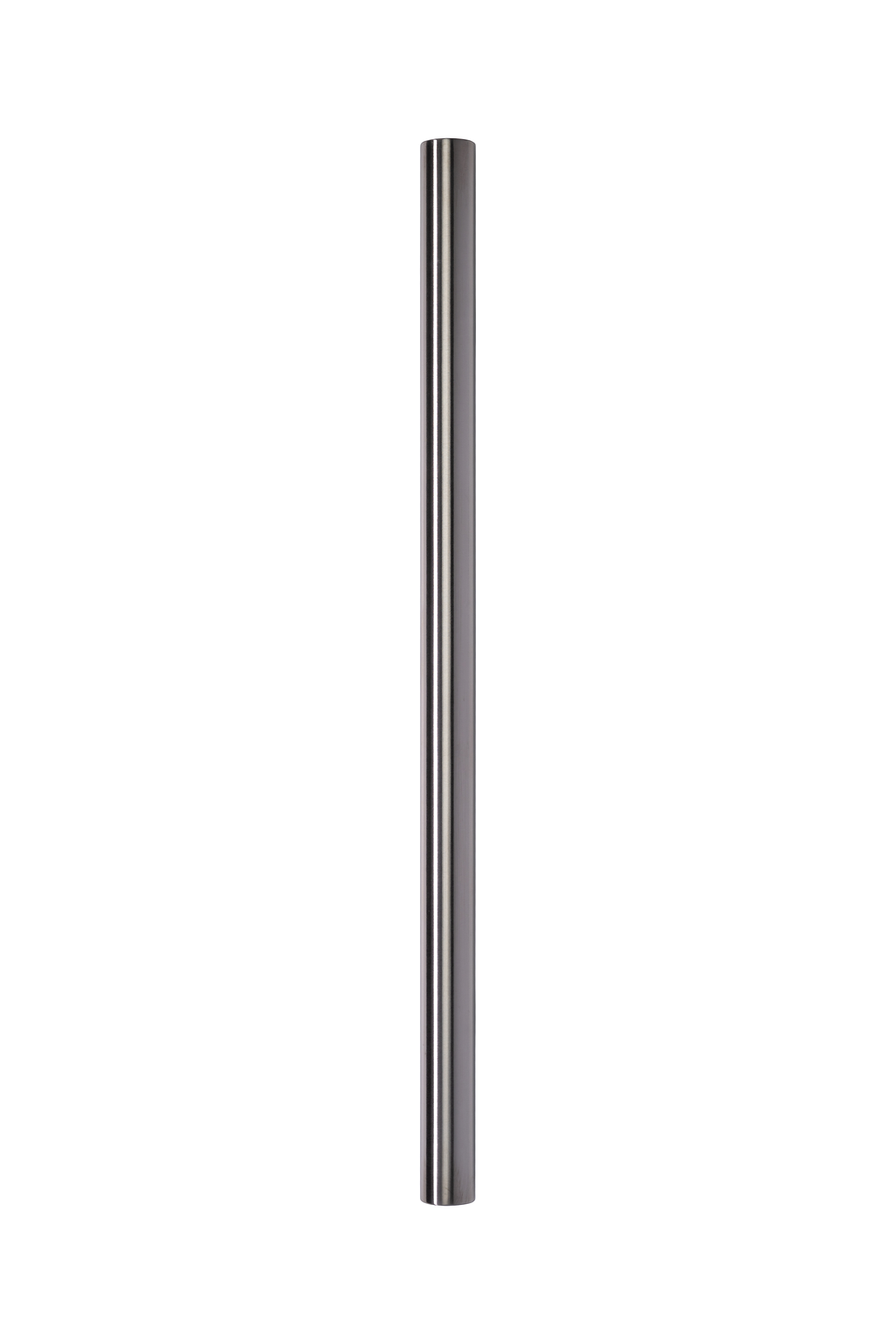

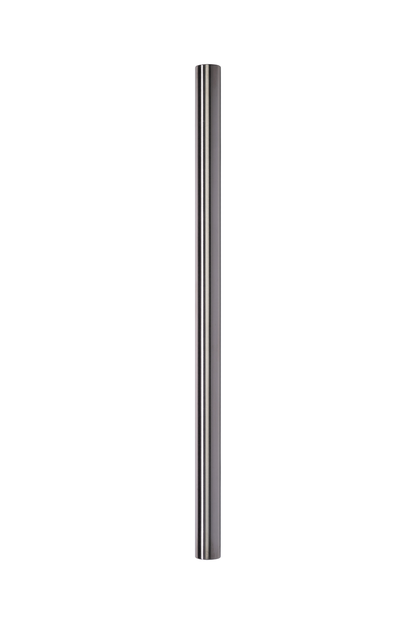

- Diameter: 32 mm round tube
- Design: Straight tubular handle with end overhangs on the grip
- Aesthetic: Minimalist, modern, architectural

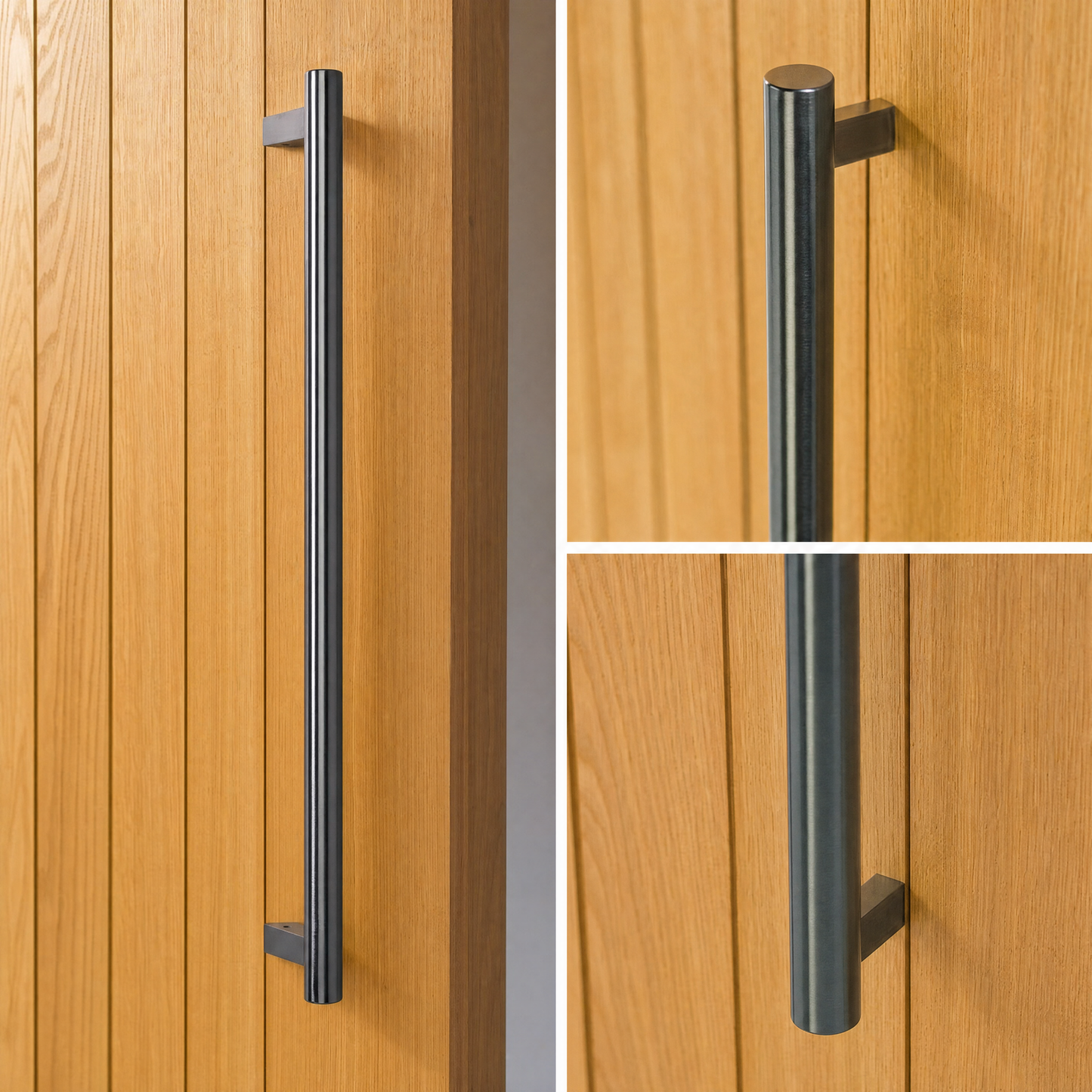

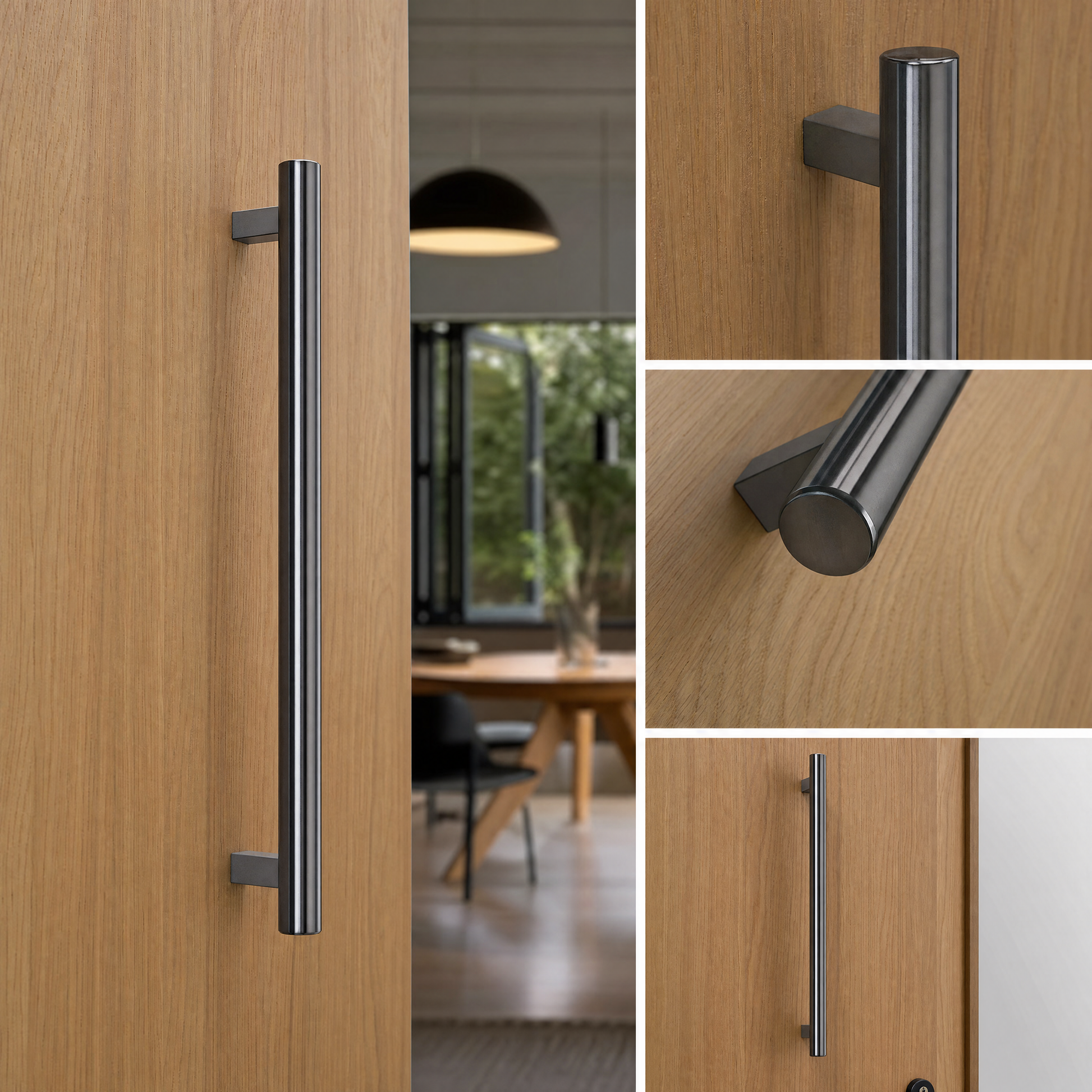

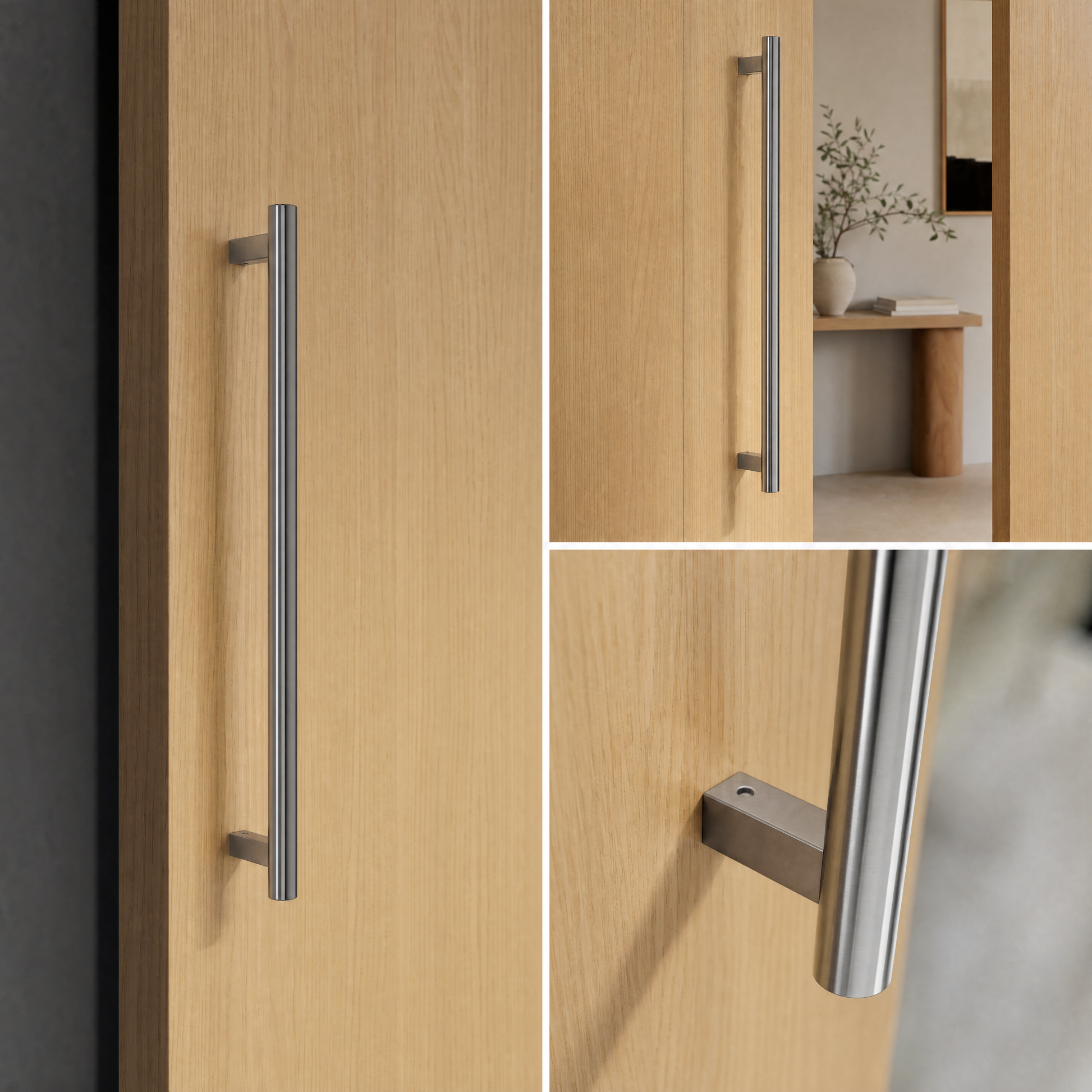

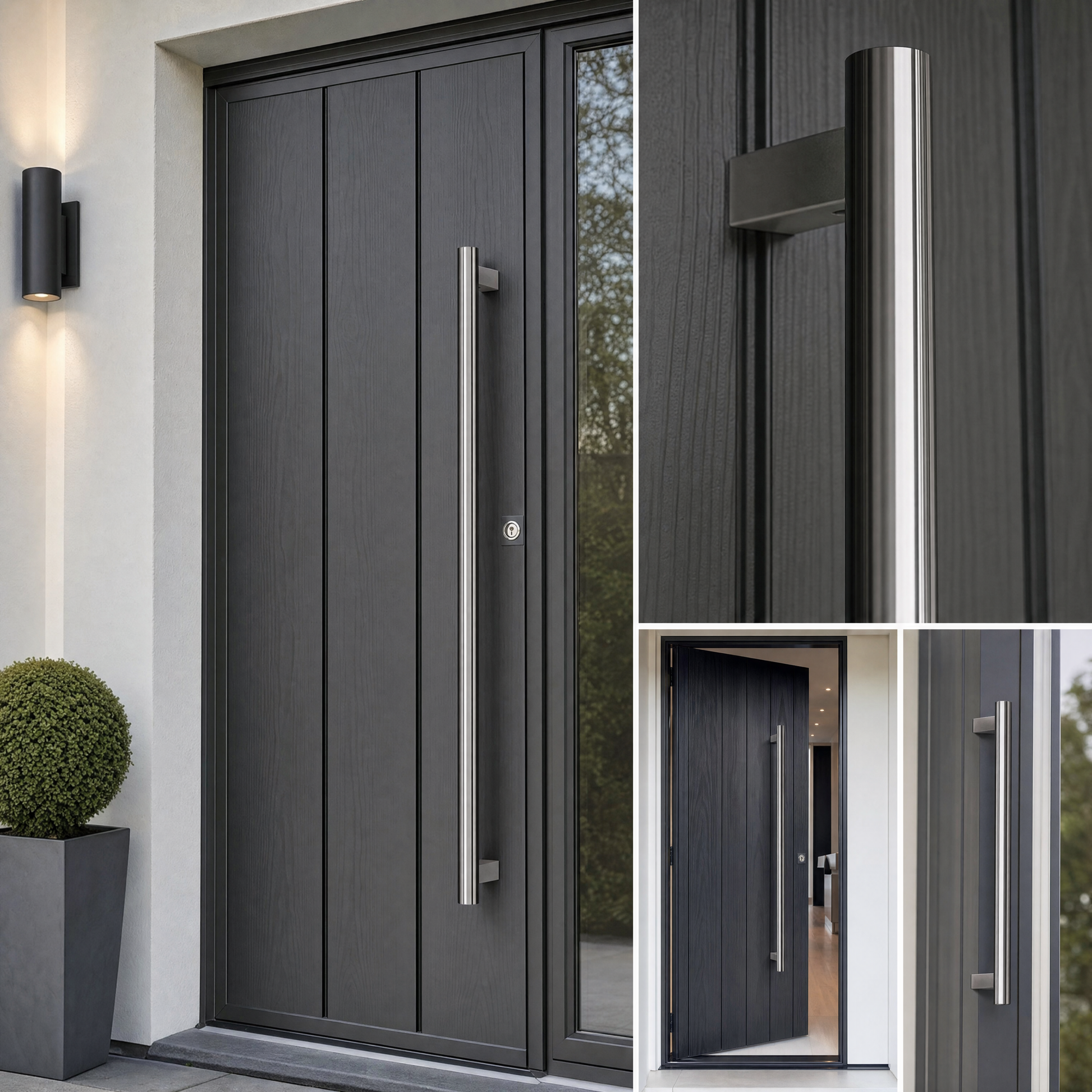

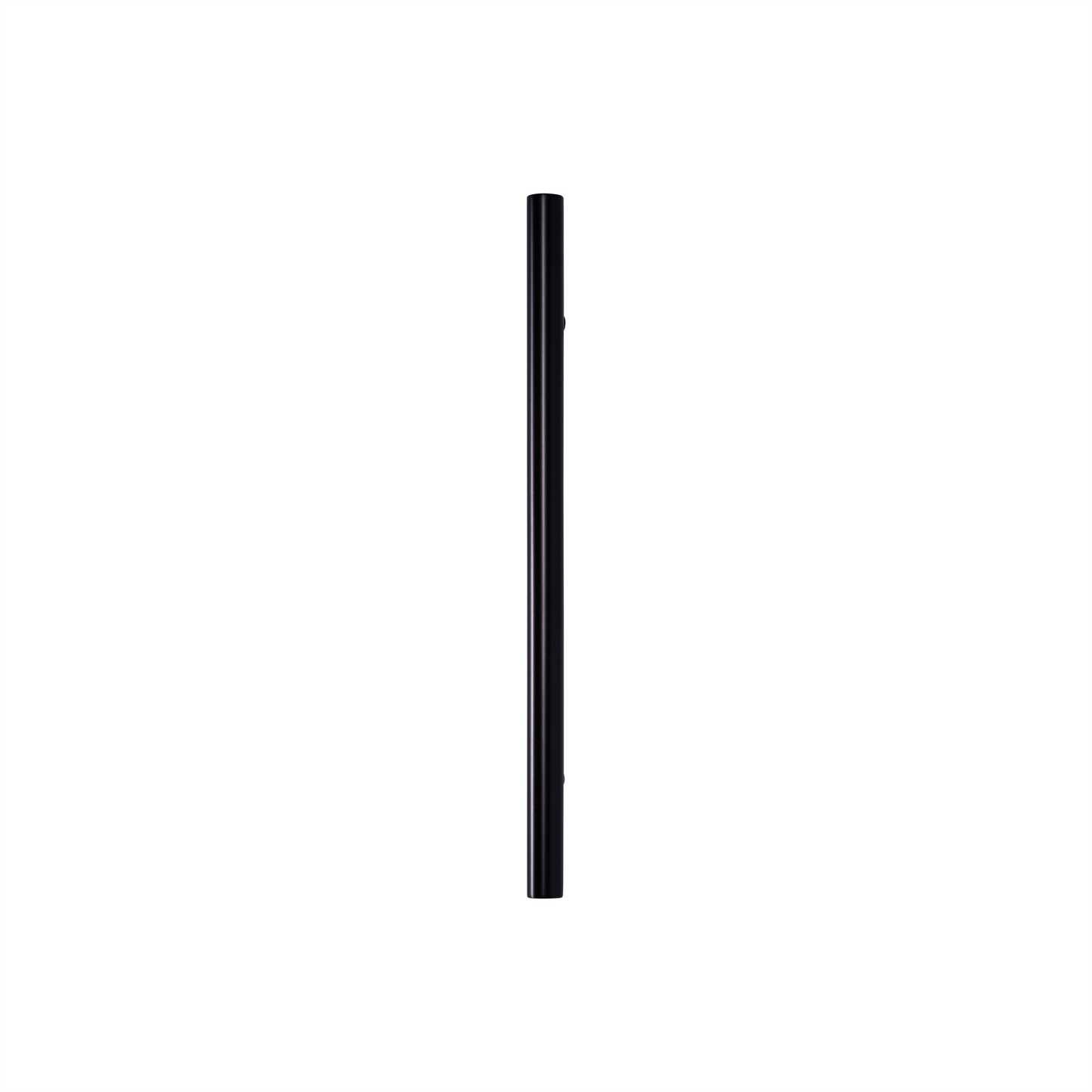

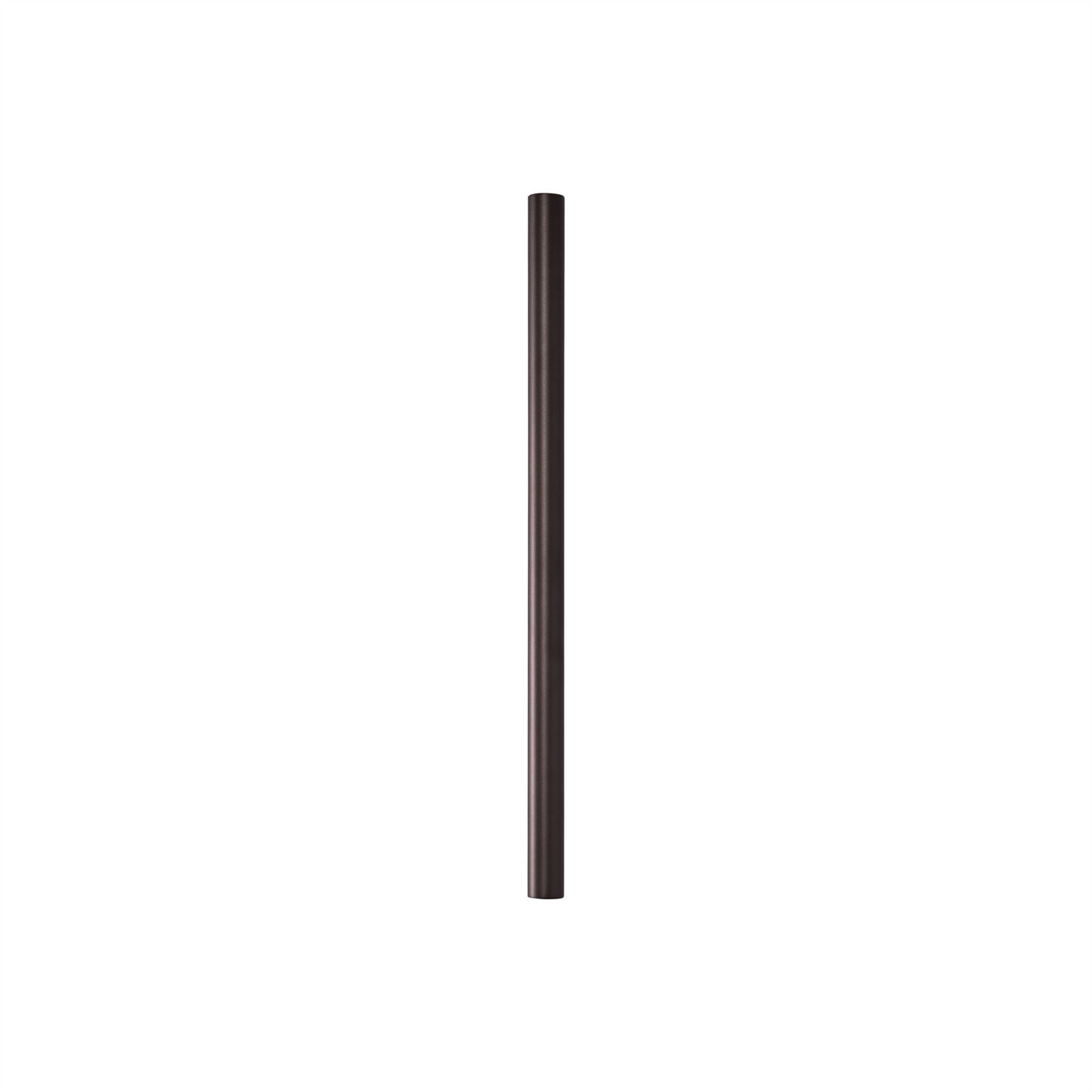

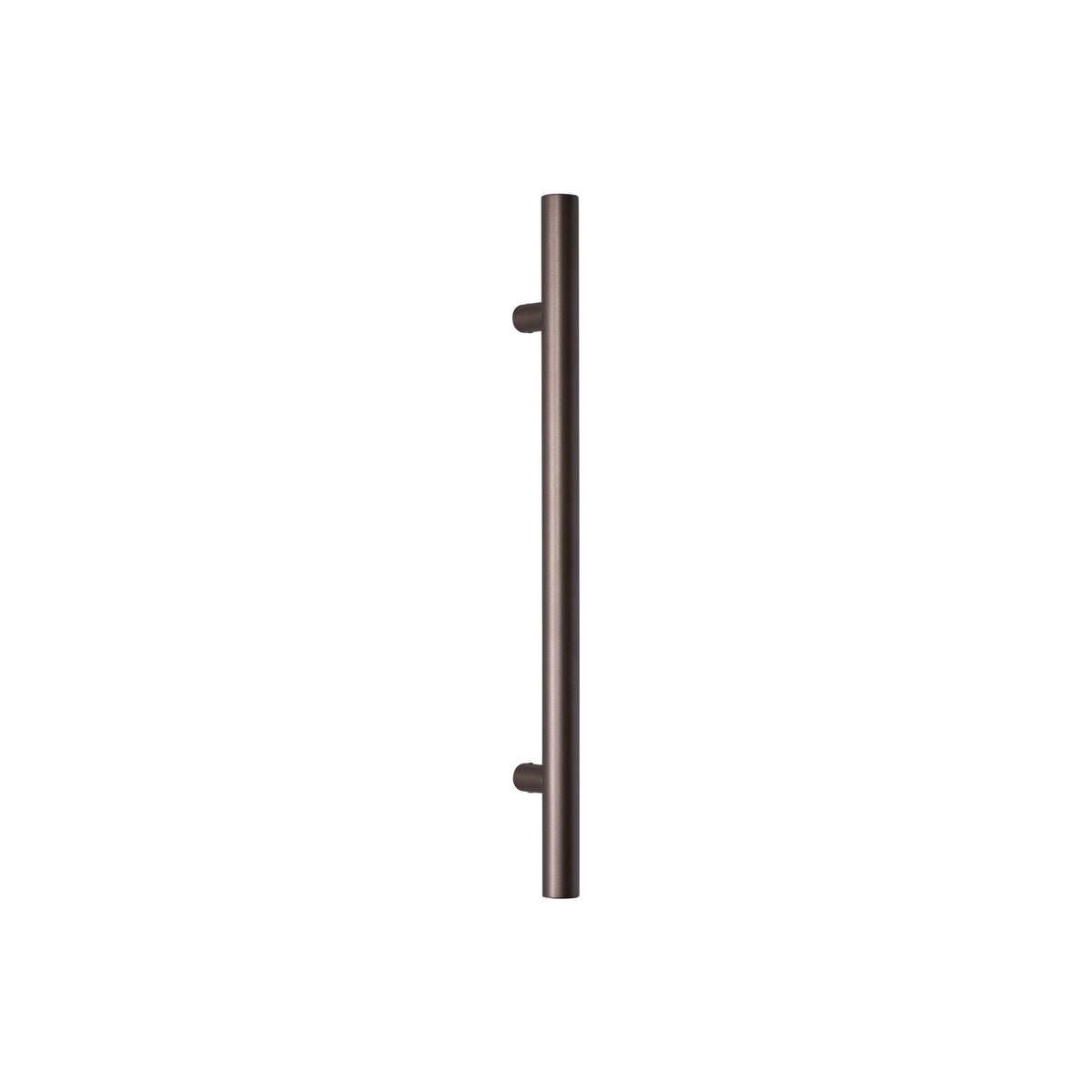

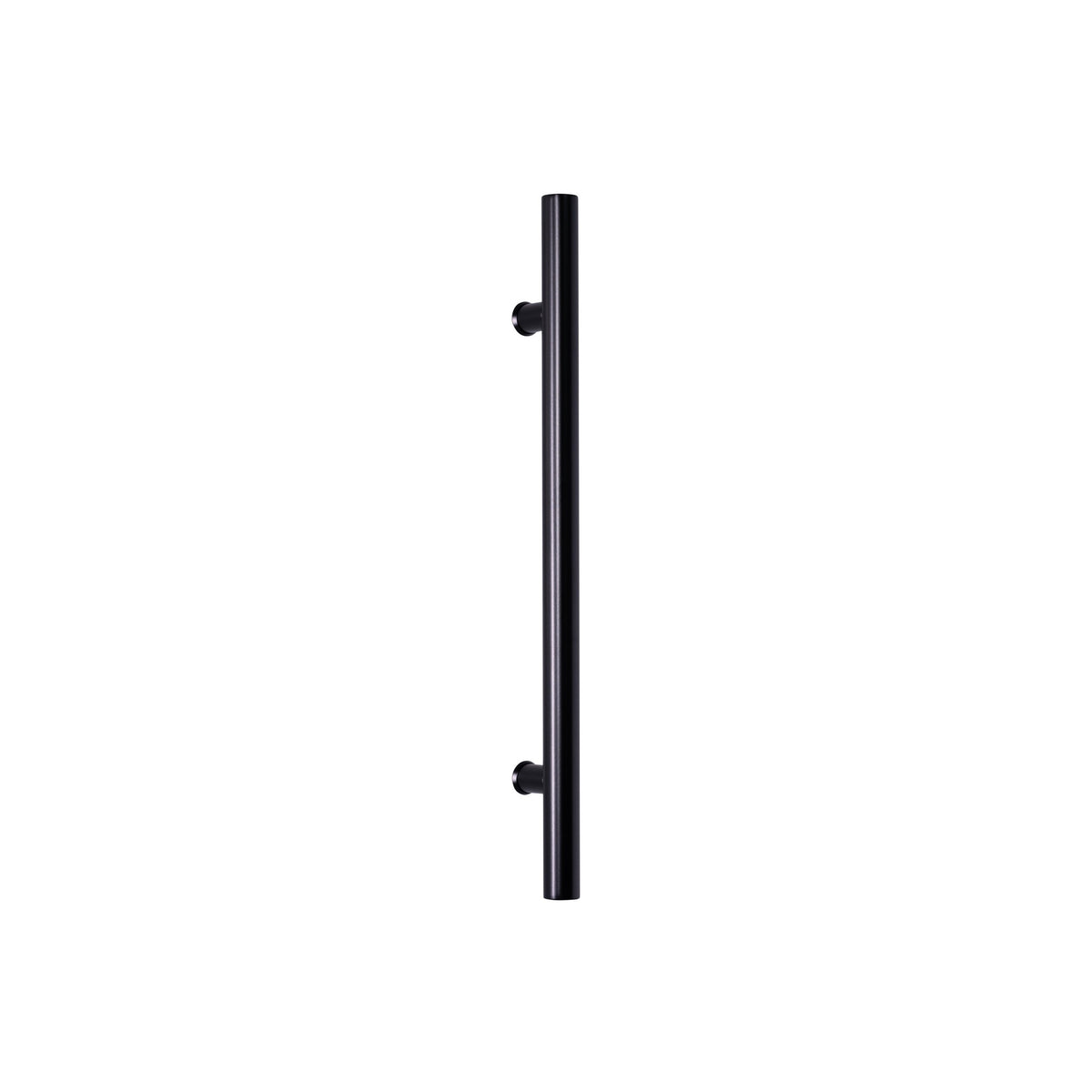

- Finish options: Brushed stainless, or powder coat in black, bronze or a custom Dulux colour

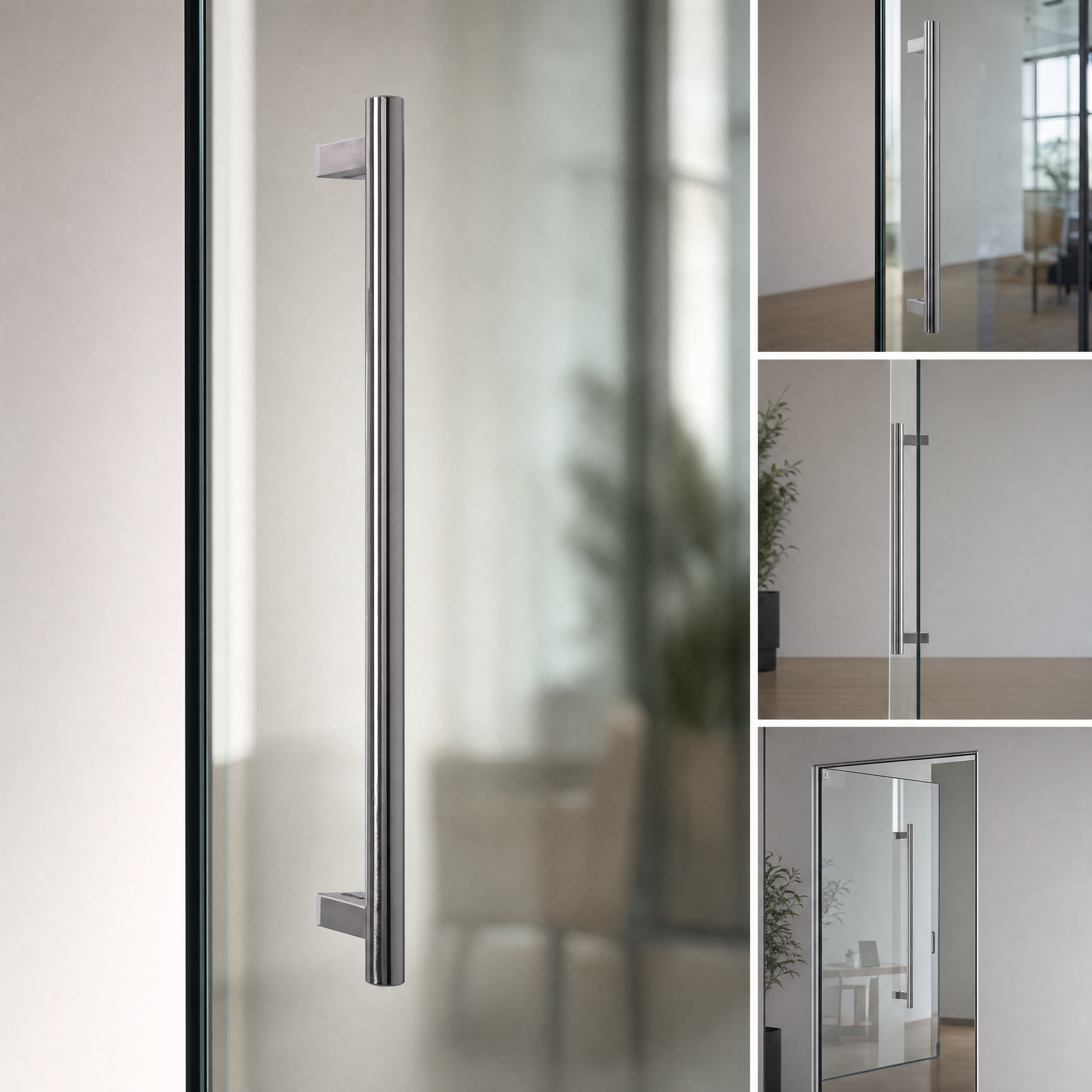

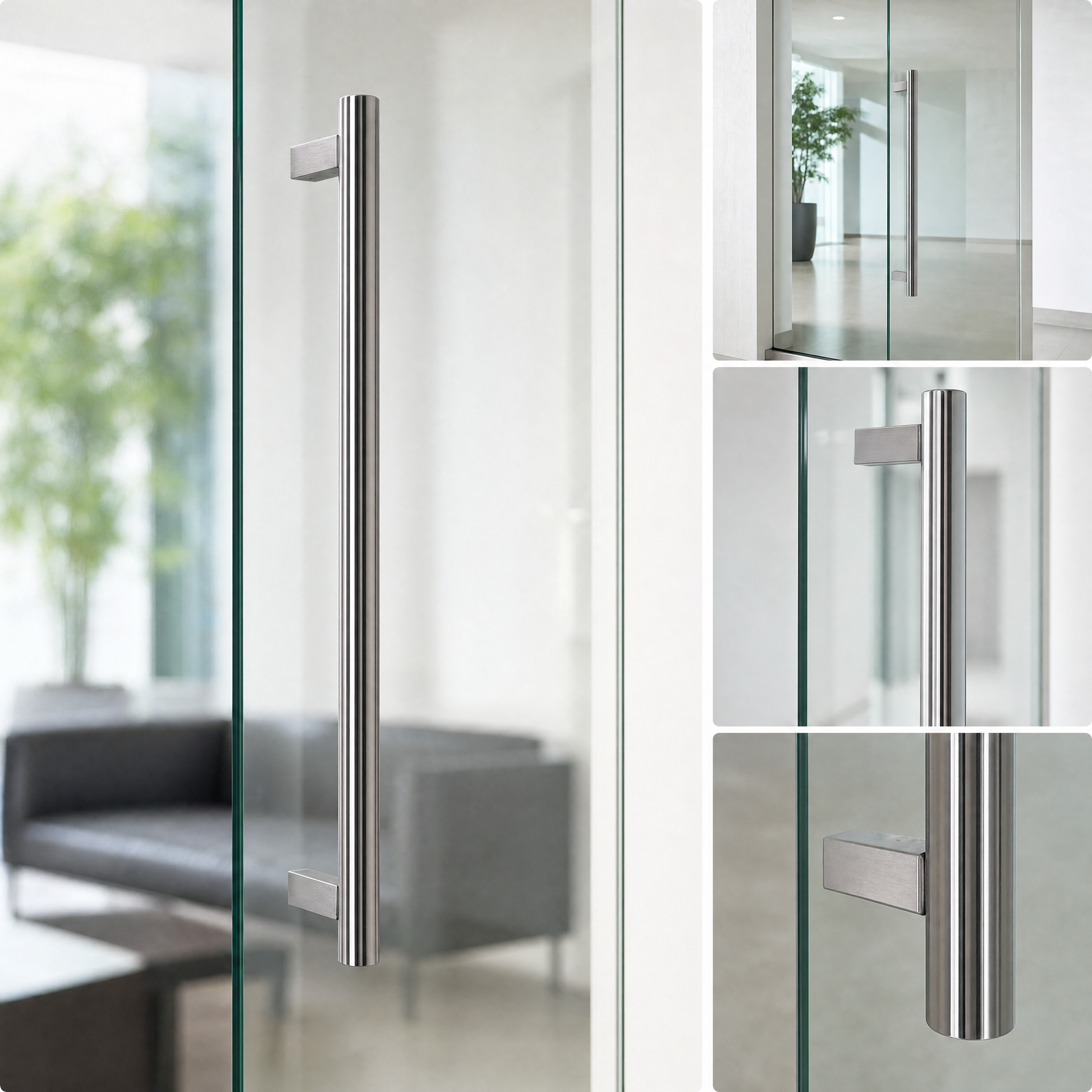

- Suitable for: Timber, aluminium, and glass doors
- Door thickness: timber and aluminium 32mm to 70mm, glass 10mm to 15mm
- Fixing: M8 through-bolts, back to back on a pair, or single sided with the disk supplied

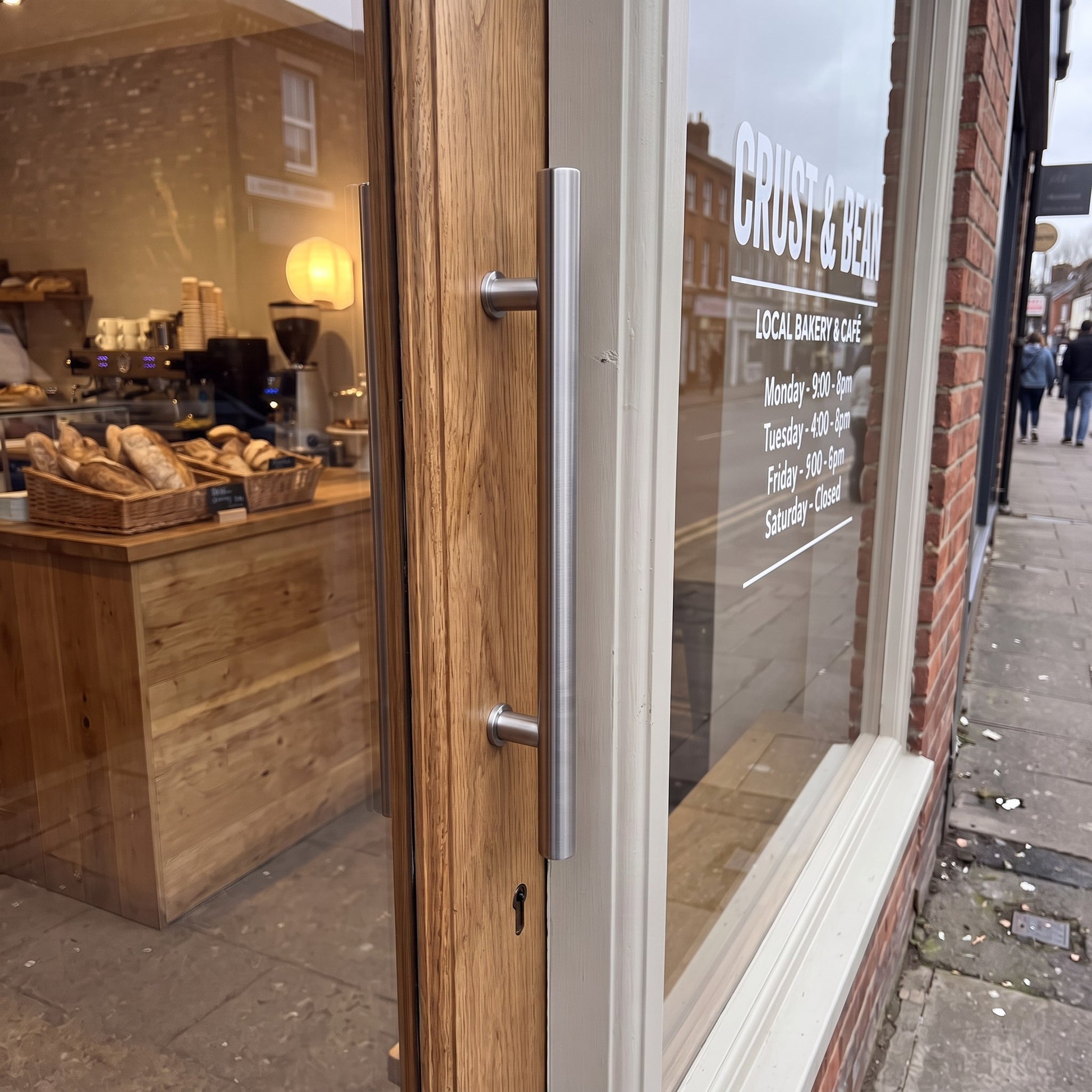

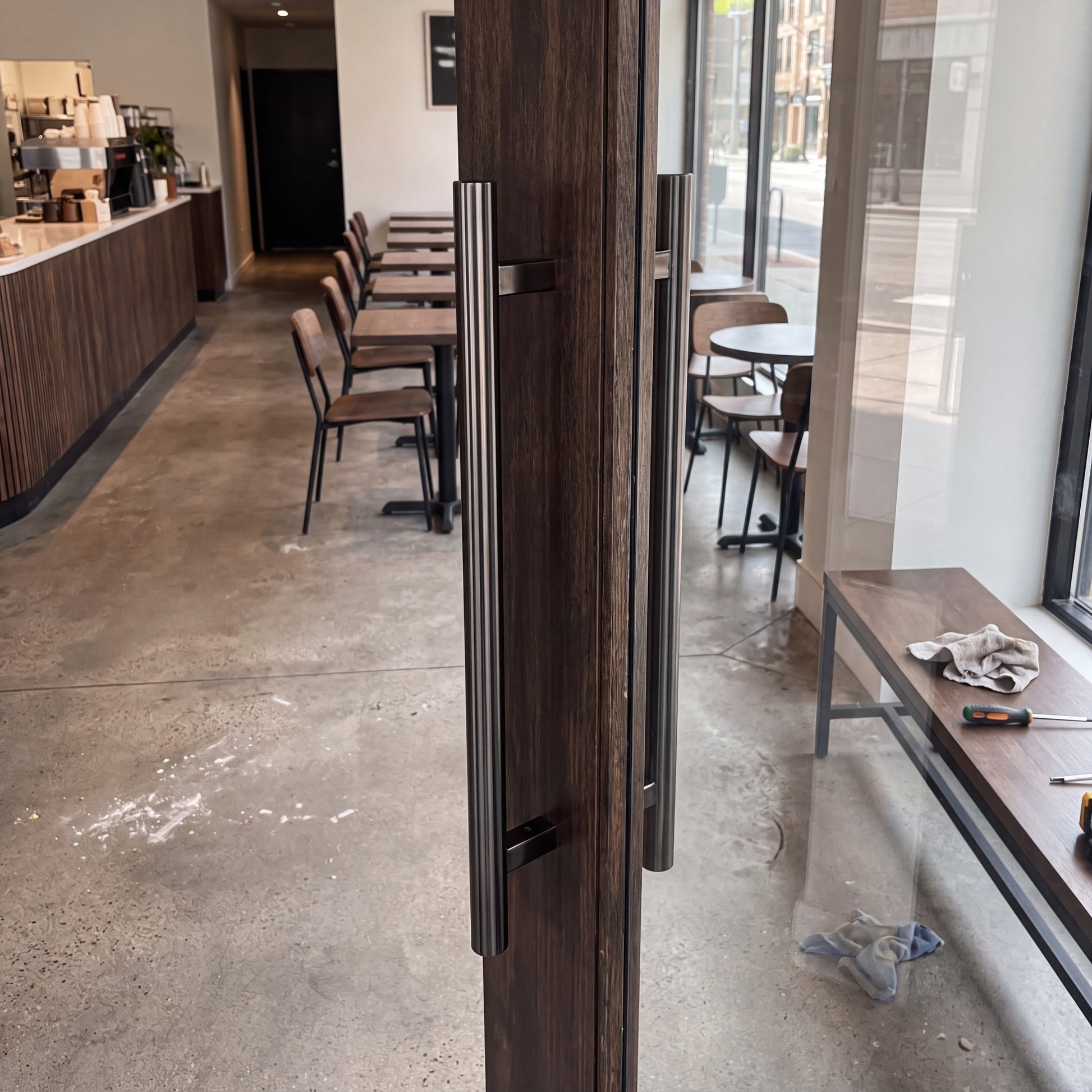

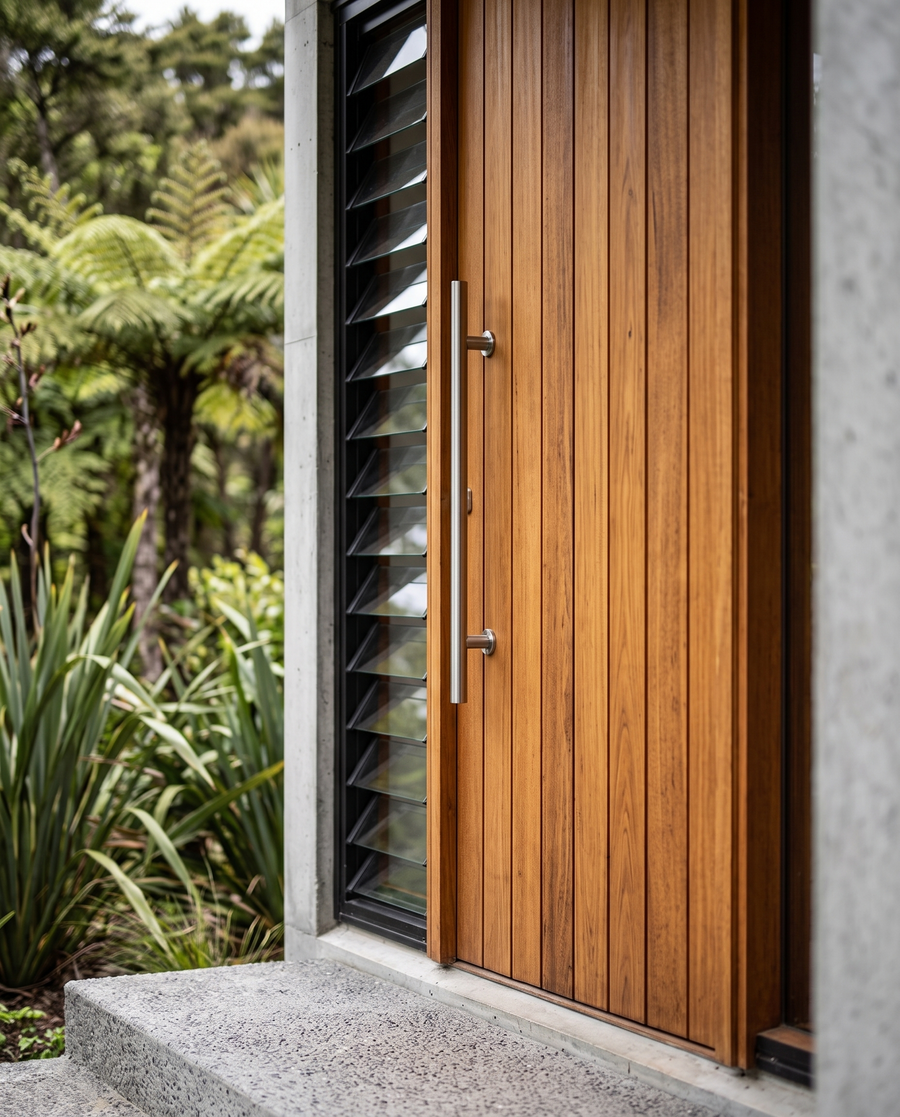

- Applications: Residential and commercial entryways

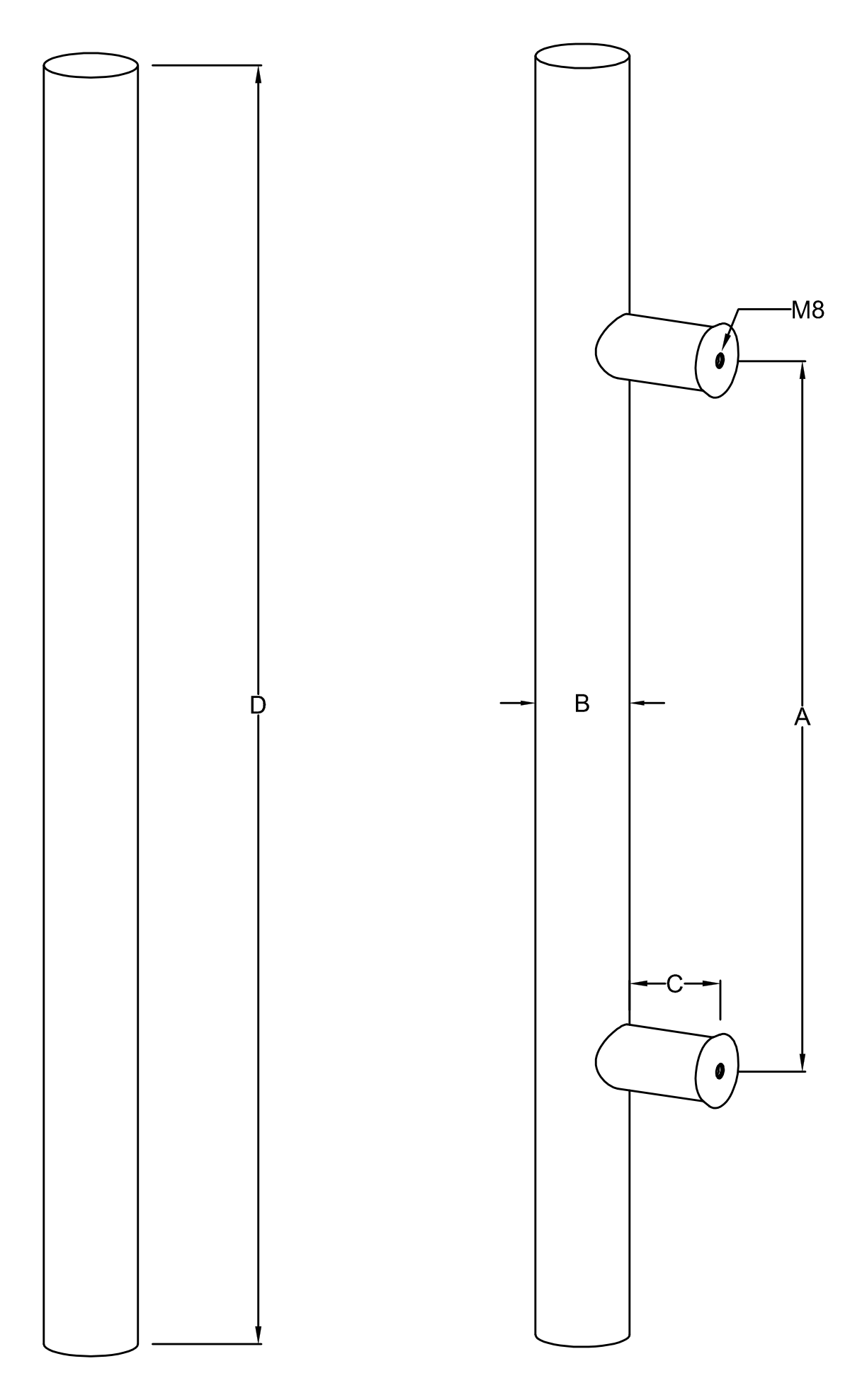

Dimensions
| Fixing centres | Overall length |
|---|---|
| 250mm | 450mm |
| 400mm | 600mm |
| 600mm | 800mm |
| 800mm | 1000mm |
| 1000mm | 1200mm |
Profile: 32mm round tube. Clearance from door: 35mm. Projection from door face: 67mm.
Installation
Installation is straightforward and can be completed in minutes. Each handle comes with the correct fixings for standard timber, aluminium or glass doors.
- Measure the fixing centres on the handle and transfer those measurements to the door in the position you want
- Pilot-drill at 3 to 4 mm, then open the holes to 8.5 to 9 mm for the M8 bolts. On a glass door the holes cannot be drilled on site: the panel has to be supplied cut to size and drilled by your glass manufacturer

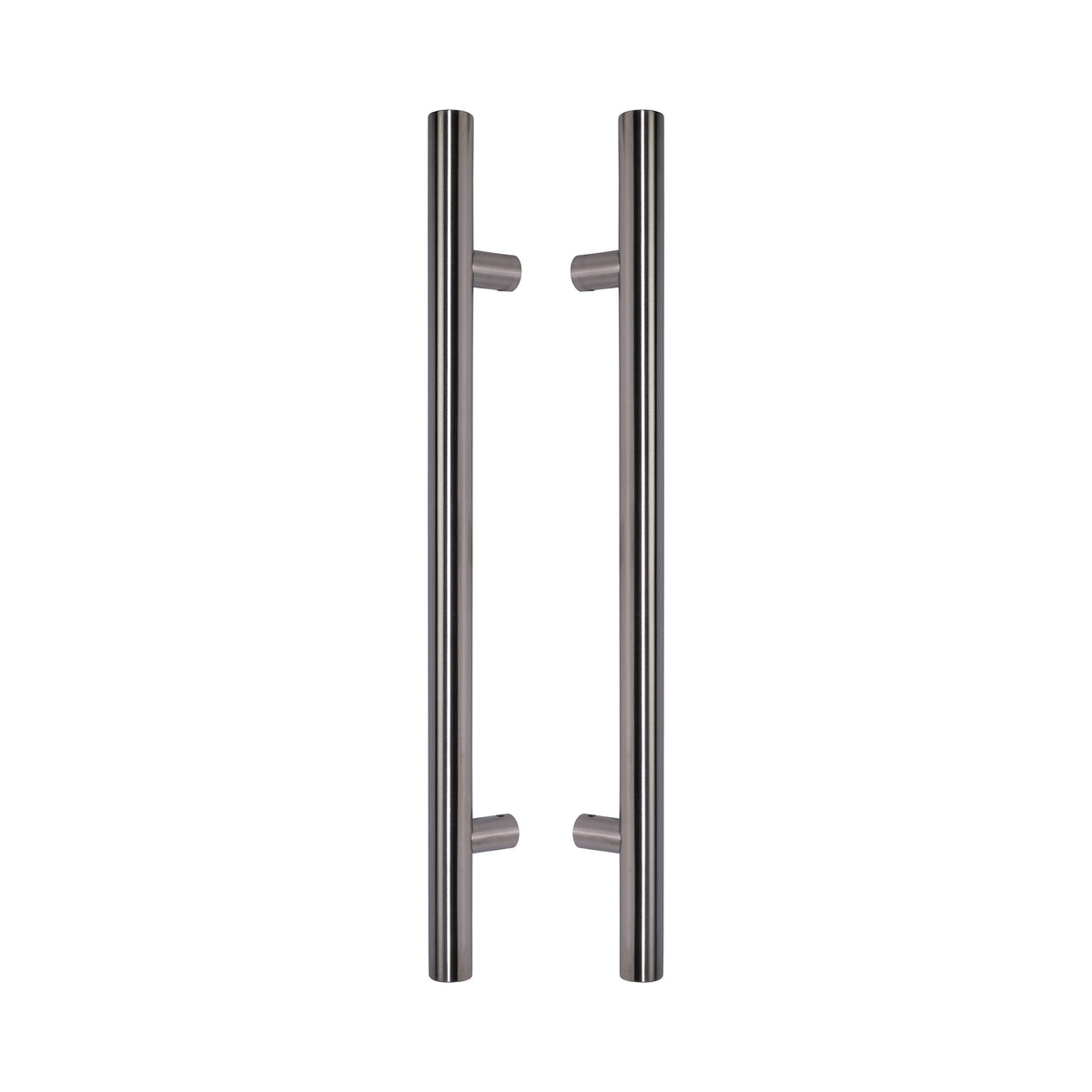

- Pass the bolts through from the back into the threaded ferrules in the handle legs. For a pair: the two handles join back-to-back through the door. A single handle is fixed with the disk supplied, which sits on the other side of the door
- Once the legs are fixed, the handle slides onto the ferrules on the inside of the door and locks tight with grubscrews for a rattle-free finish
A printed guide is included with every order.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Pull handles as selected (one for a single or two for a pair)
- Through-fix mounting bolts
- Installation template
- Care instructions
