Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

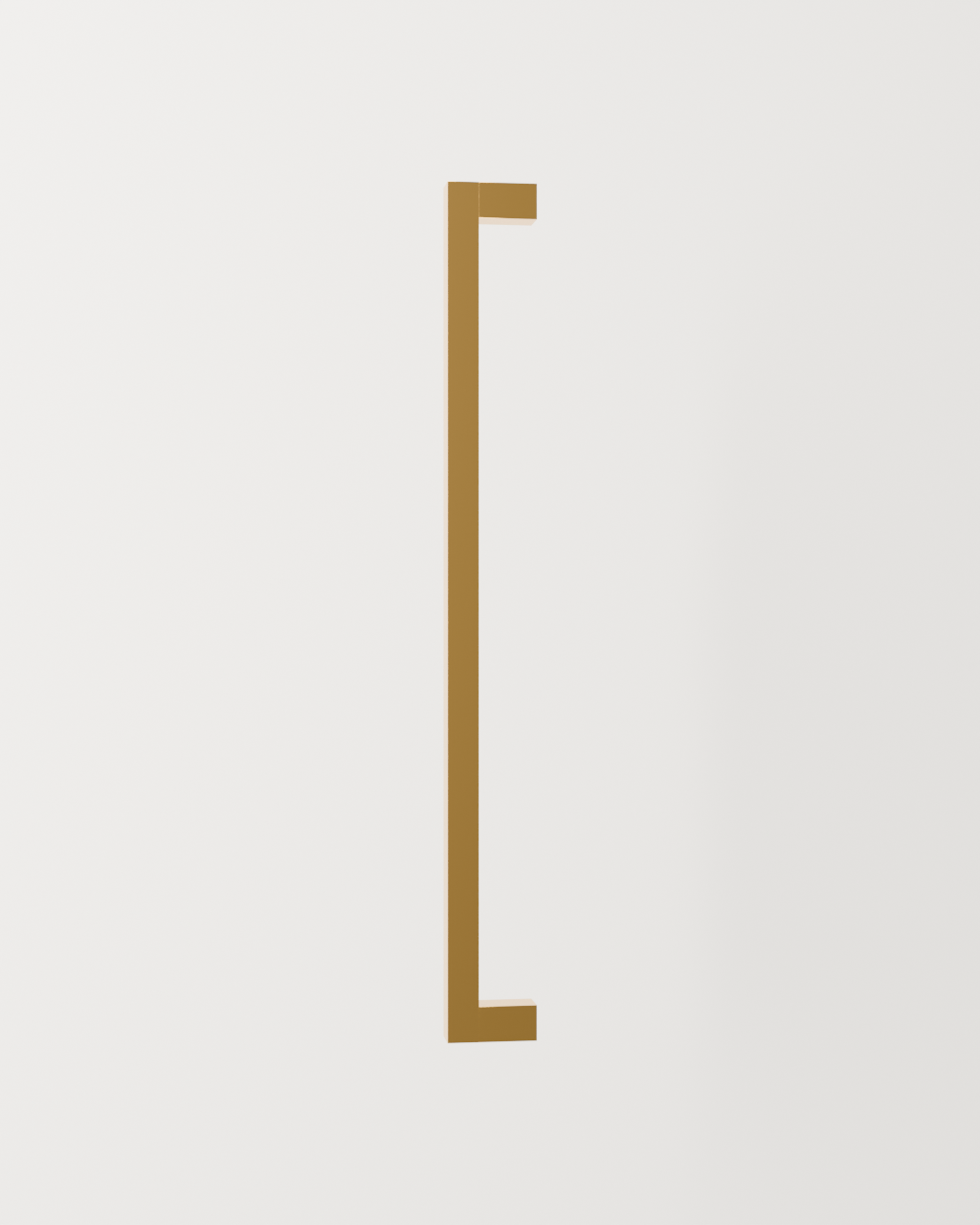

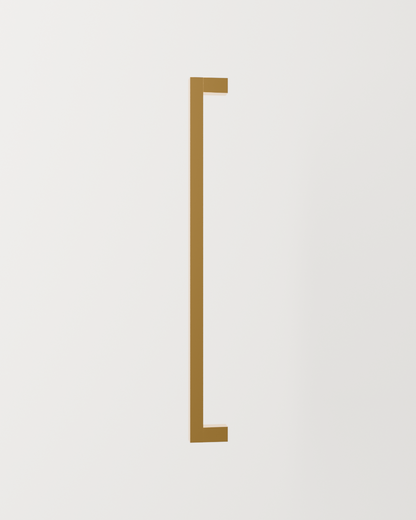

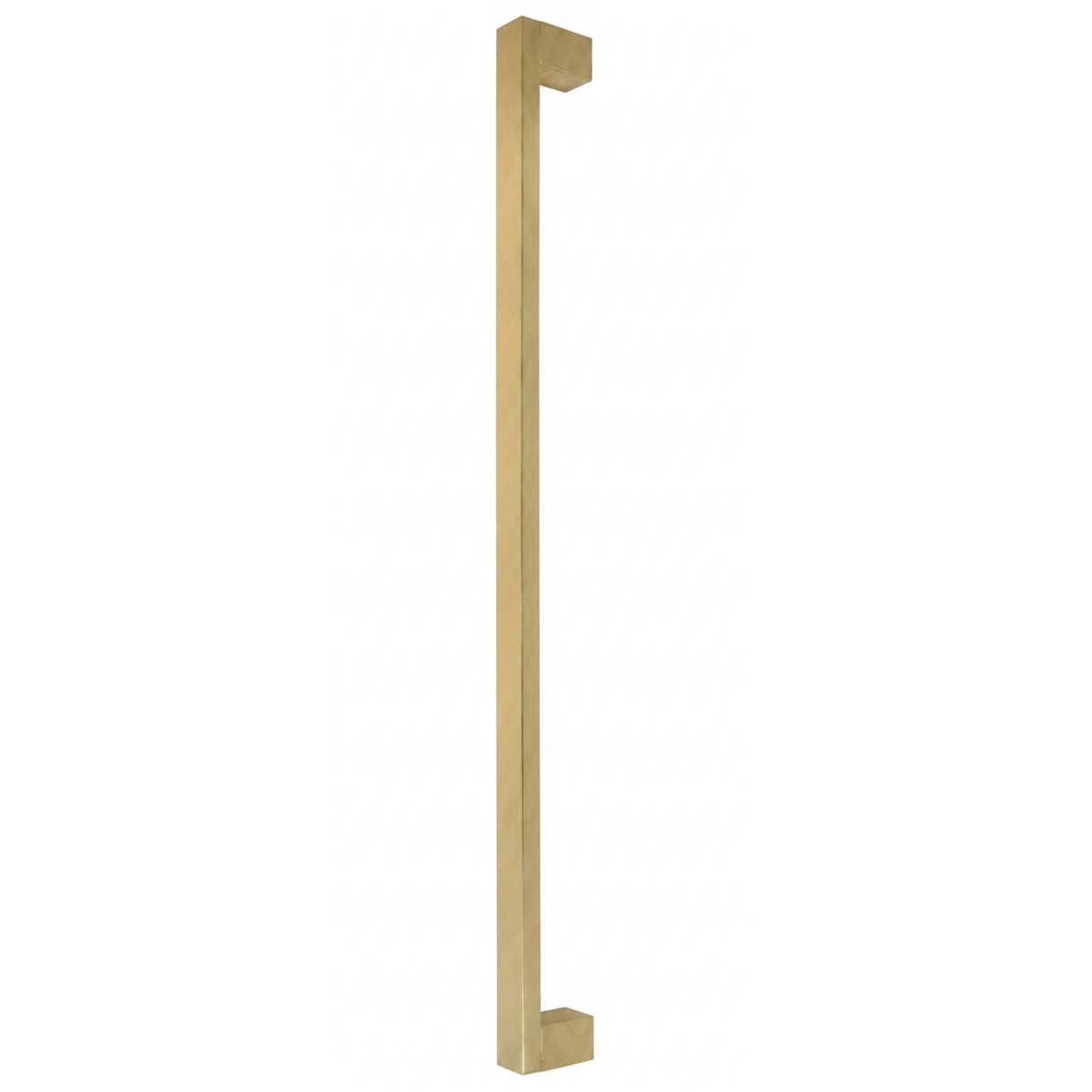

The Bluff is the sharper of our two flat-bar pulls: square-cut ends and square legs. For the same bar with rounded ends and round legs, see the Cascade Bar. The Bluff Bar Pull Handle in solid brass, made to order in New Zealand. Choose your finish, polished or brushed, then your coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time. Handles are never shipped bare.

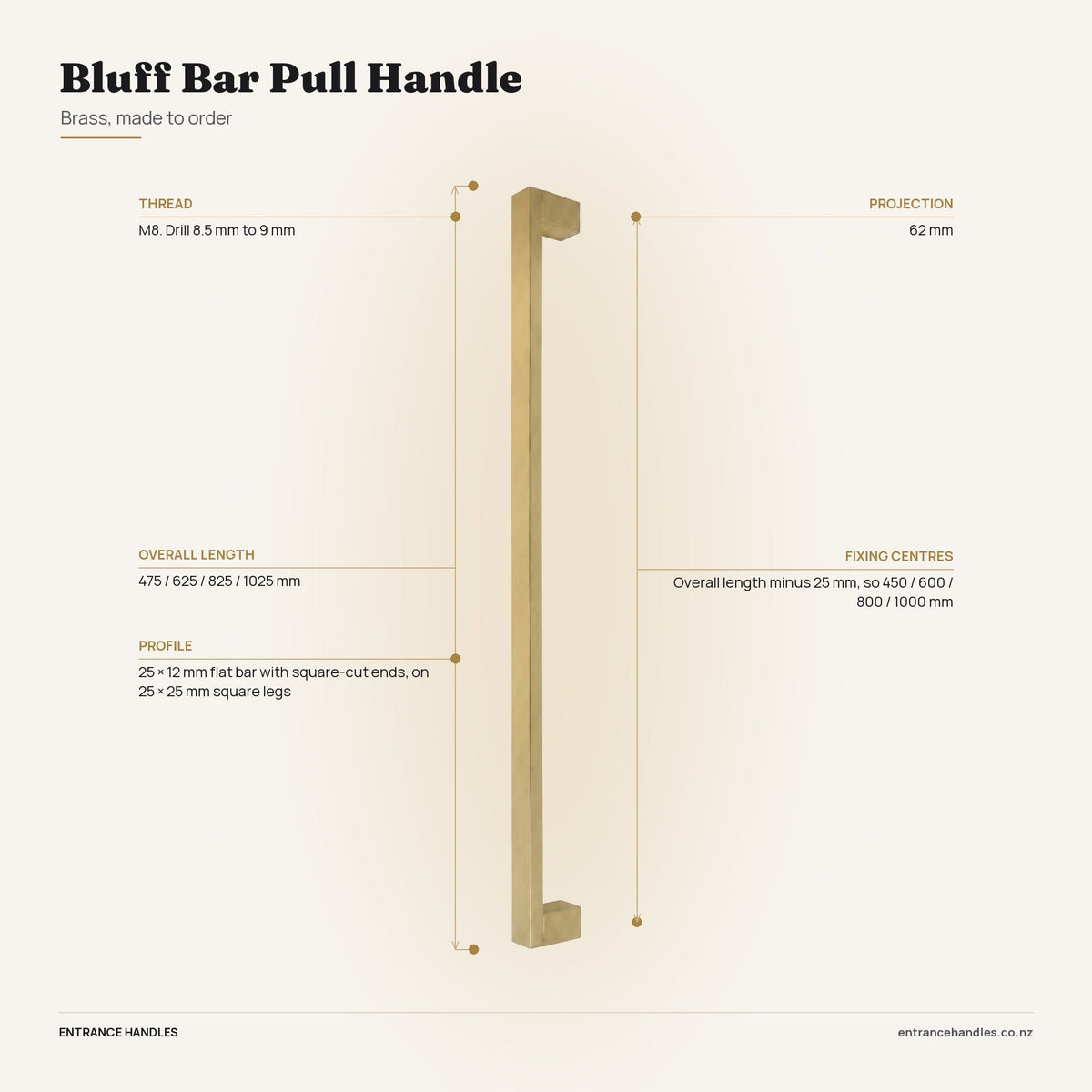

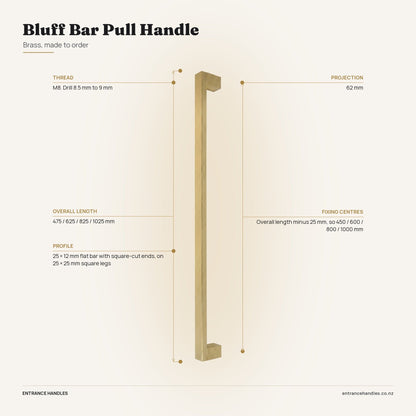

Specifications
- Material: Solid brass
- Finish: Polished or brushed, then a coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish. Never shipped bare
- Profile: 25 × 12 mm flat bar with square-cut ends, on 25 × 25 mm square legs
- Sizes (overall length): 475 / 625 / 825 / 1025 mm

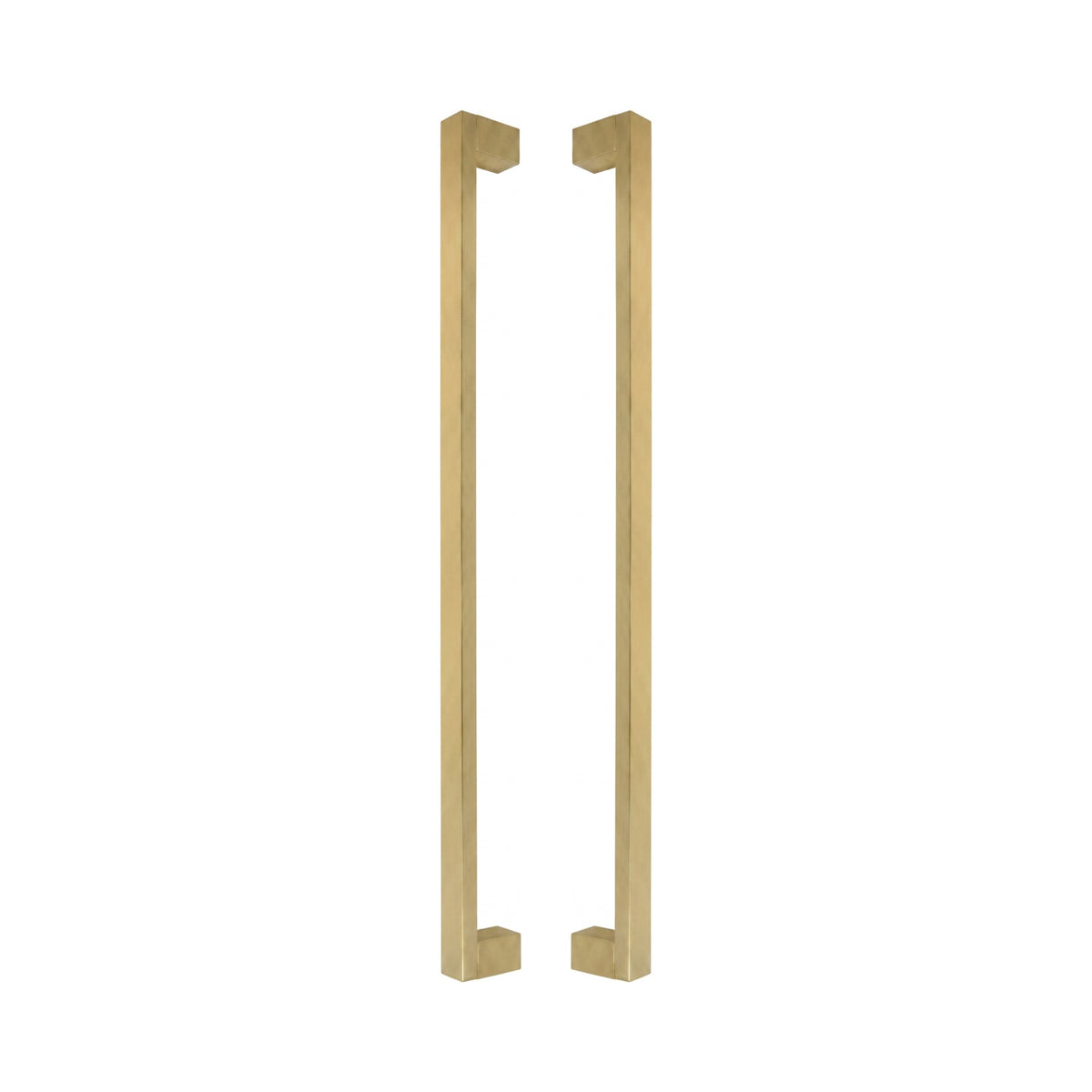

- Configuration: Pair (two handles, back-to-back, through-fixed) or single handle
- Lead time: Made to order - allow 3 to 4 weeks
- Fixing centres: Overall length minus 25 mm, so 450 / 600 / 800 / 1000 mm
- Leg height: 50 mm off the door face
- Projection: 62 mm
- Thread: M8. Drill 8.5 mm to 9 mm
- Screws: 45 mm for glass from 3 mm to 15 mm, 70 mm for doors 25 mm to 40 mm thick. 80 mm screws are available for doors to 50 mm and 90 mm for doors to 60 mm. All figures allow 10 mm of thread engagement
- Single fixing: A single is fixed with a matching round dome on the inside face, threaded into the handle thread
Not sure on sizing? Get in touch and we'll help you spec it.
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
