Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

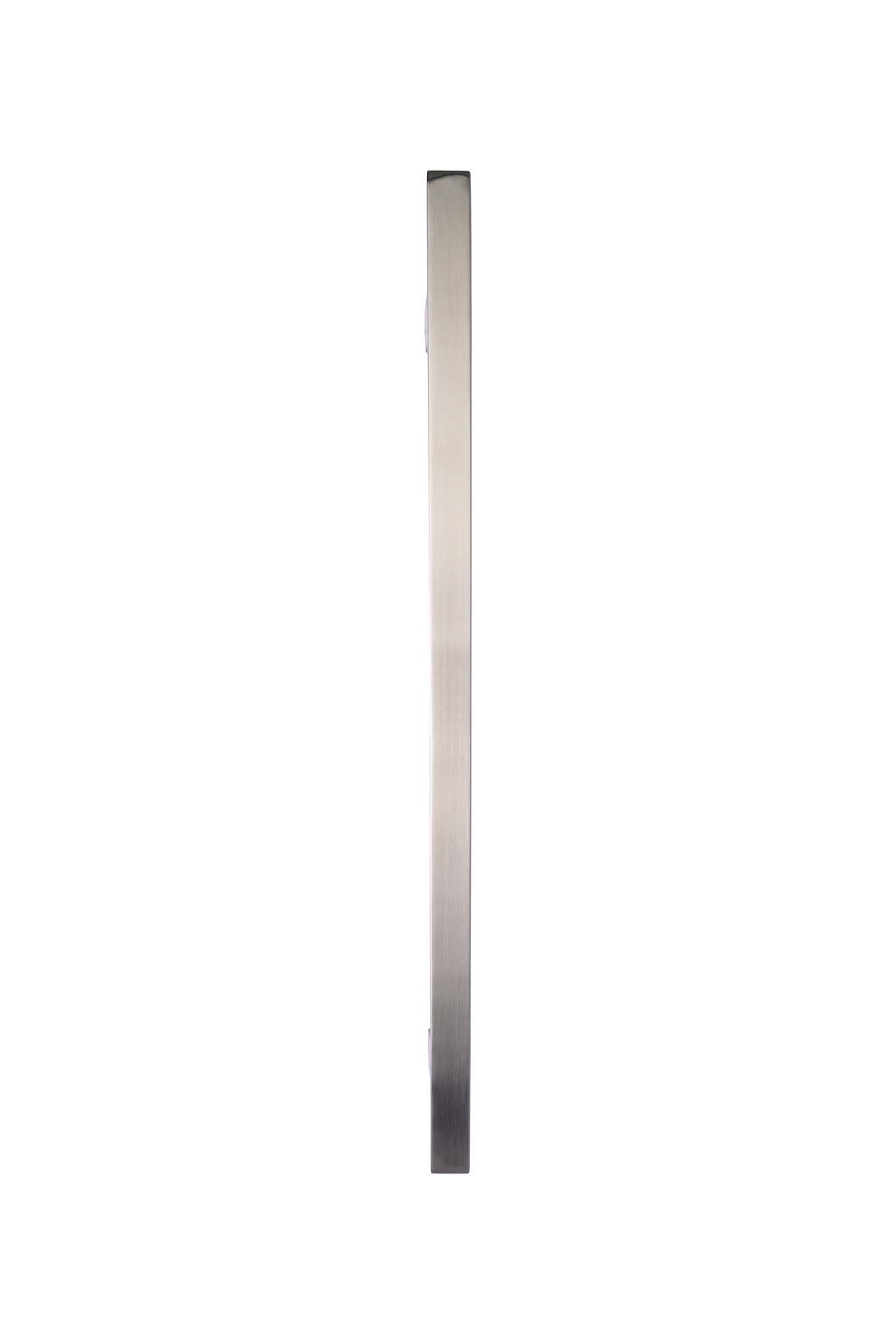

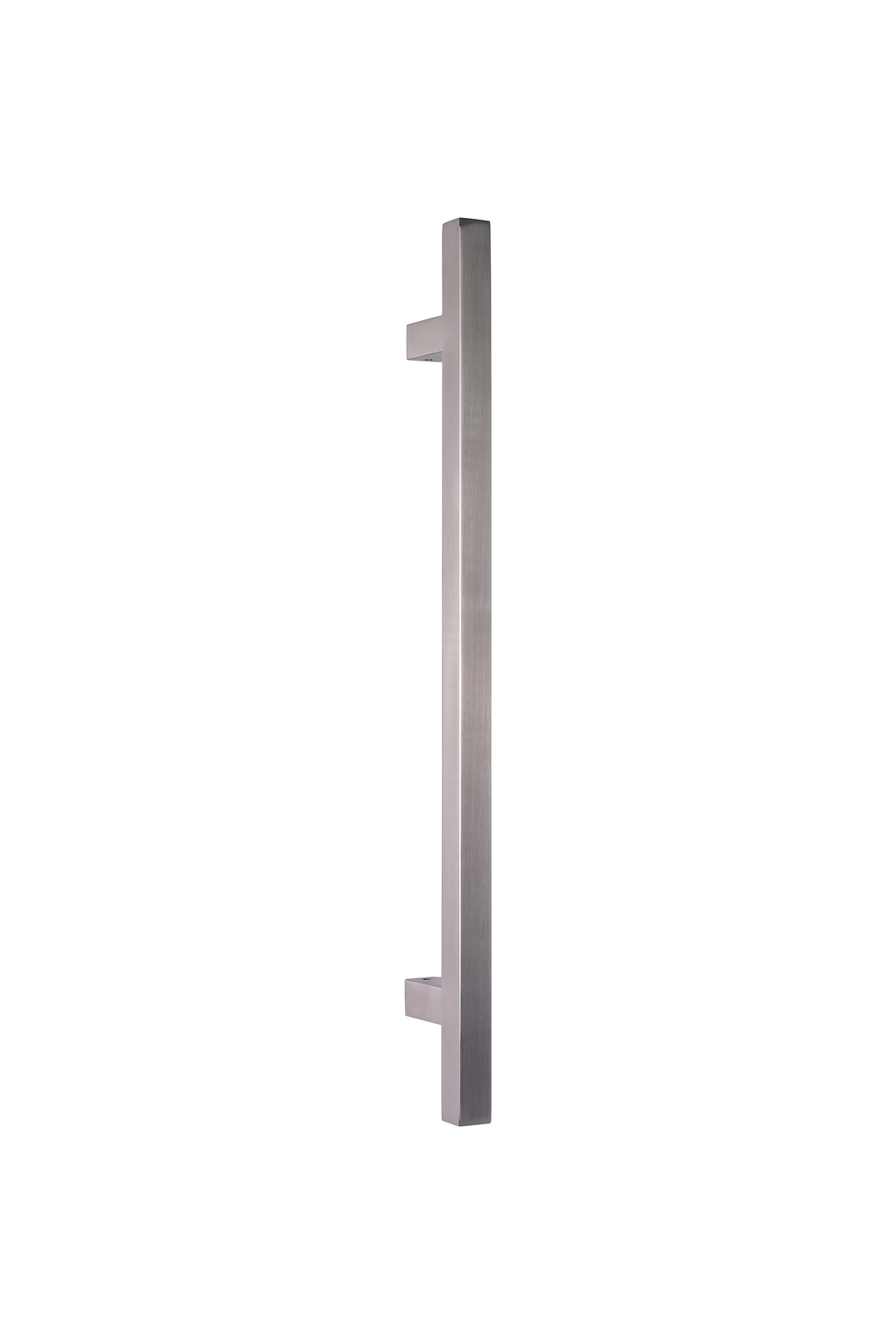

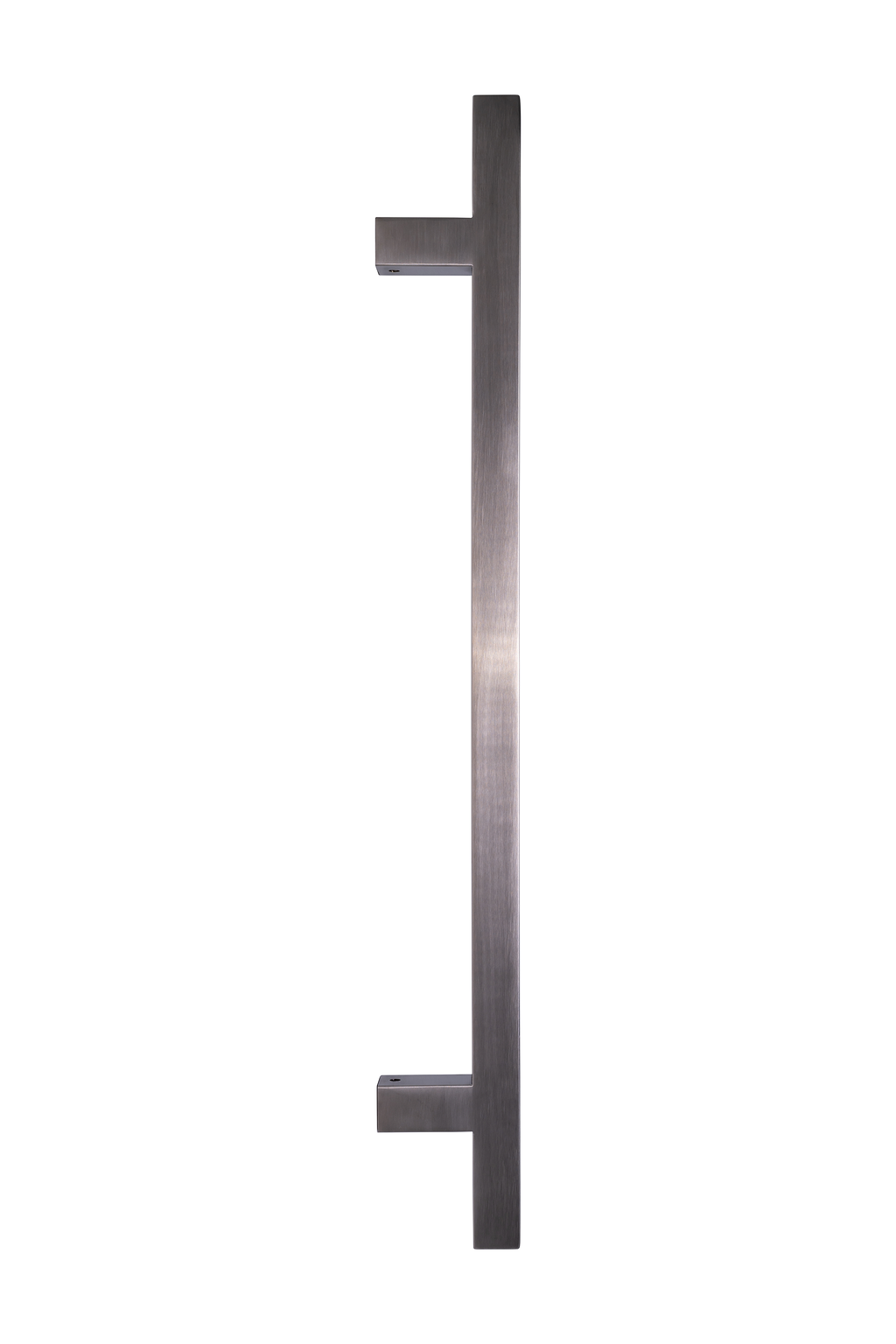

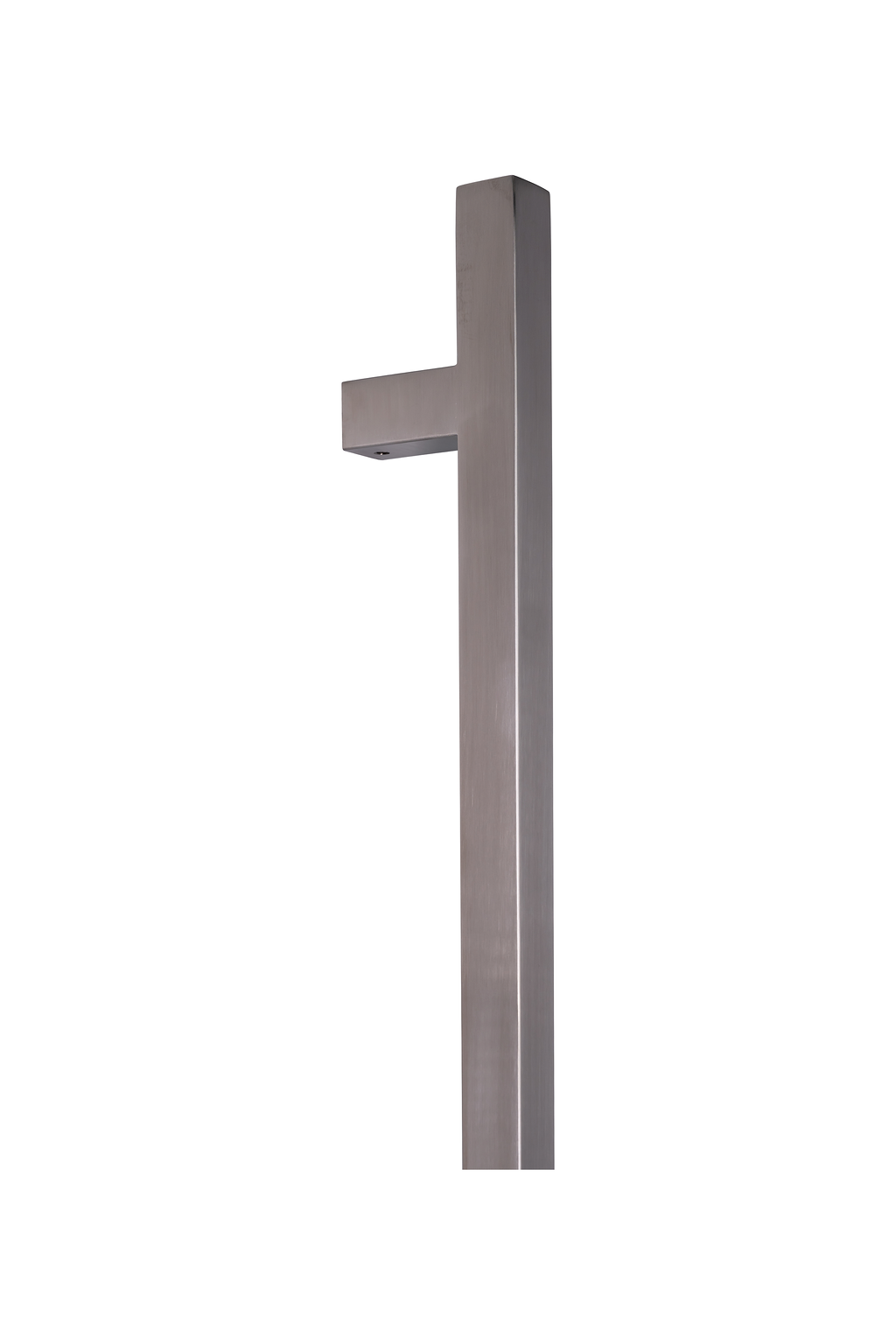

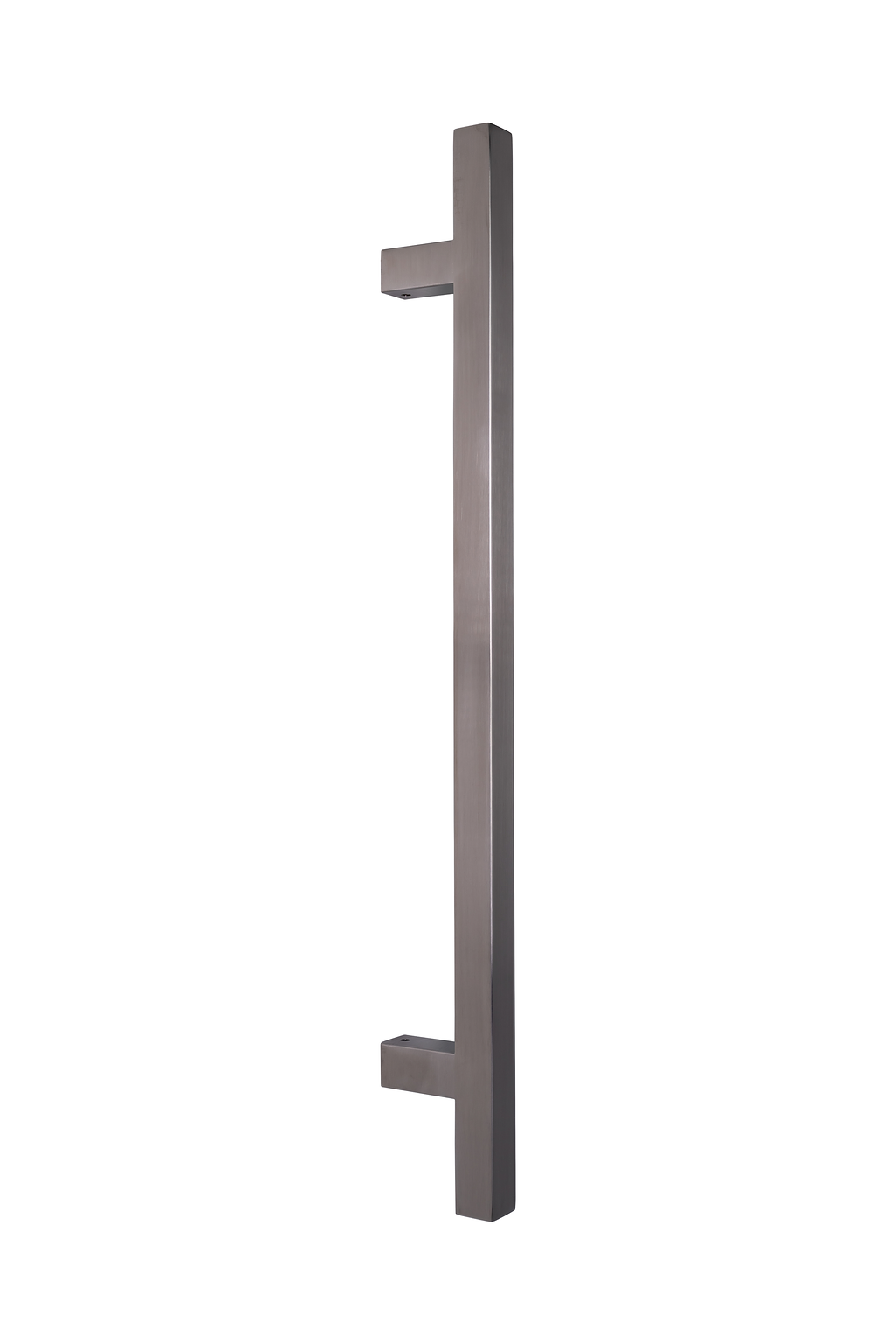

This T-Bar Pull Handle delivers a sharp, modern aesthetic backed by the strength and corrosion resistance of 316 marine-grade stainless steel. Designed for both residential and commercial use, it performs reliably in high-traffic and coastal environments.
The 25×25 mm square profile provides a clean architectural look with a solid, comfortable grip. Available in two lengths, the handle features fixing centres of 450 mm or 600 mm, each with an overhang at both ends for balanced proportions on any door.

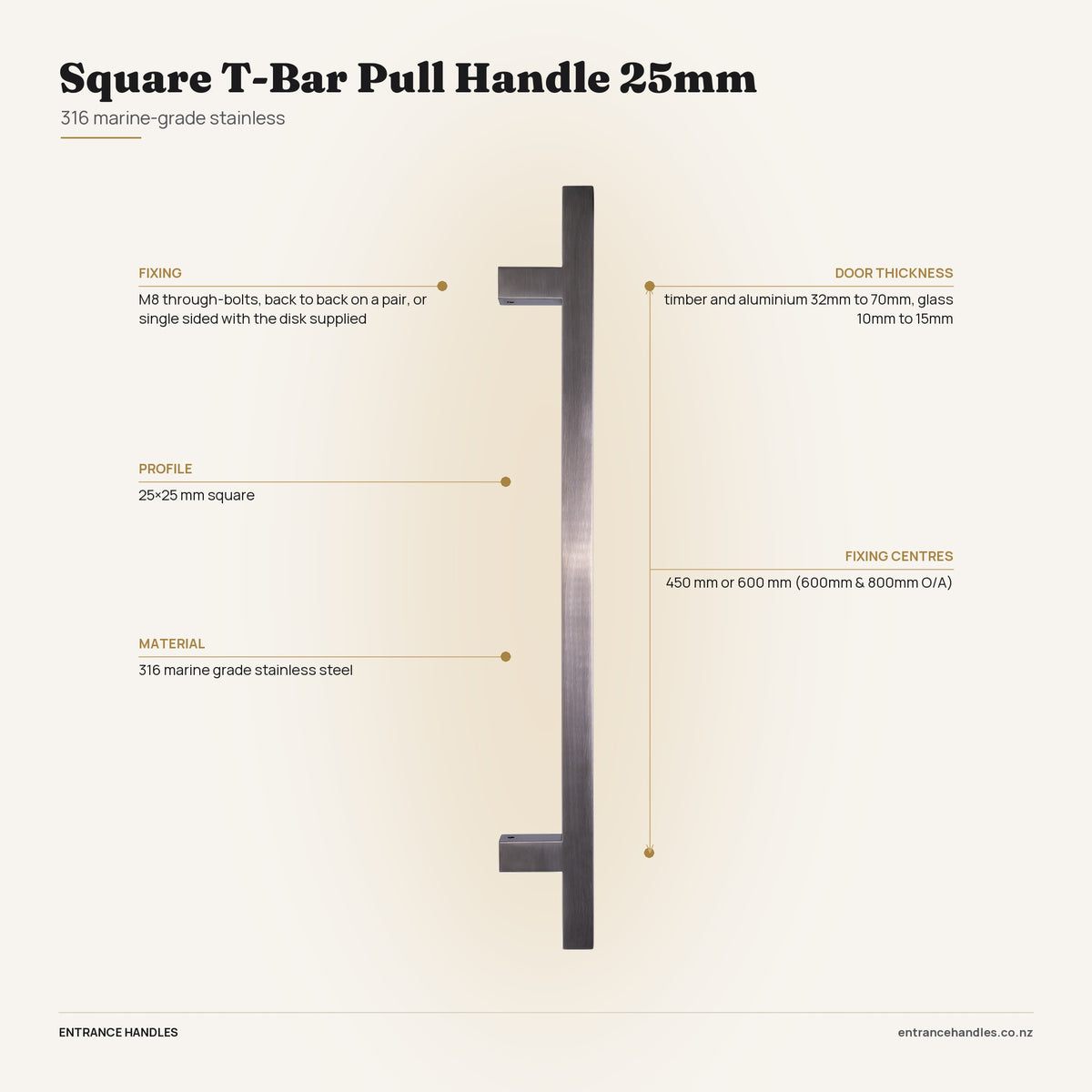

Specifications
- Material: 316 marine grade stainless steel
- Accessibility: Compliant to AS 1428.1-2009 Design for Access and Mobility
- Profile: 25×25 mm square
- Fixing centres: 450 mm or 600 mm (600mm & 800mm O/A)
- Style: Modern T-Bar design

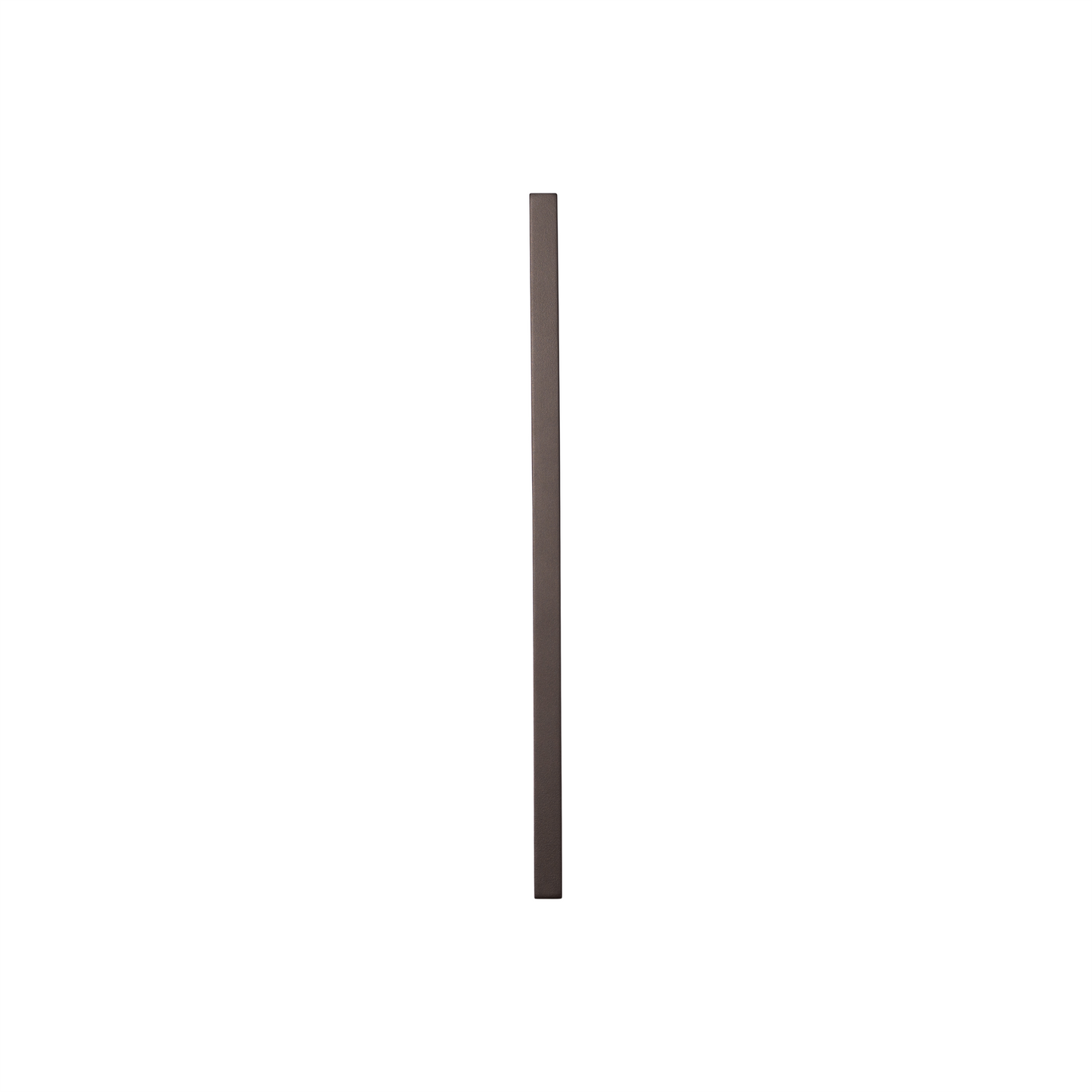

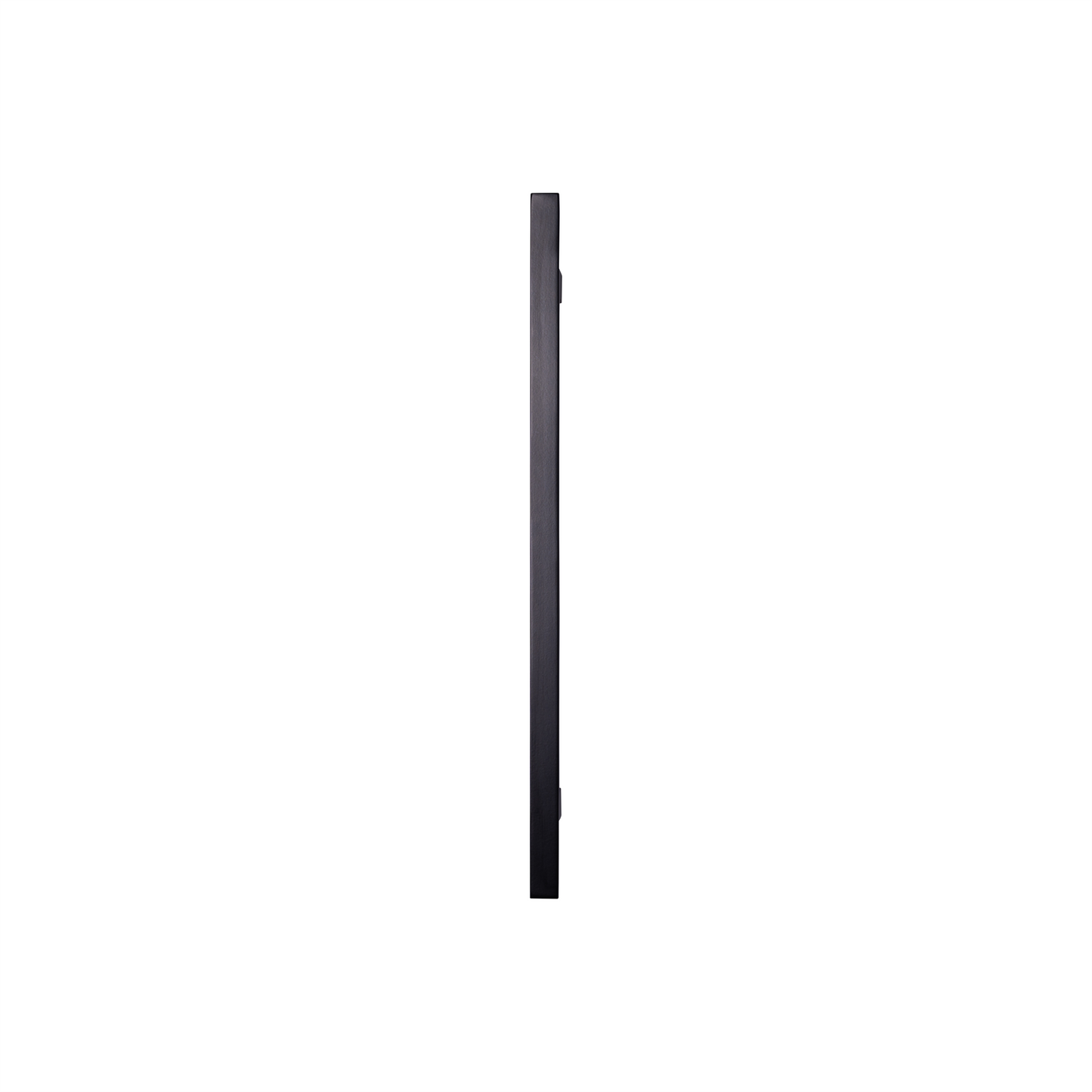

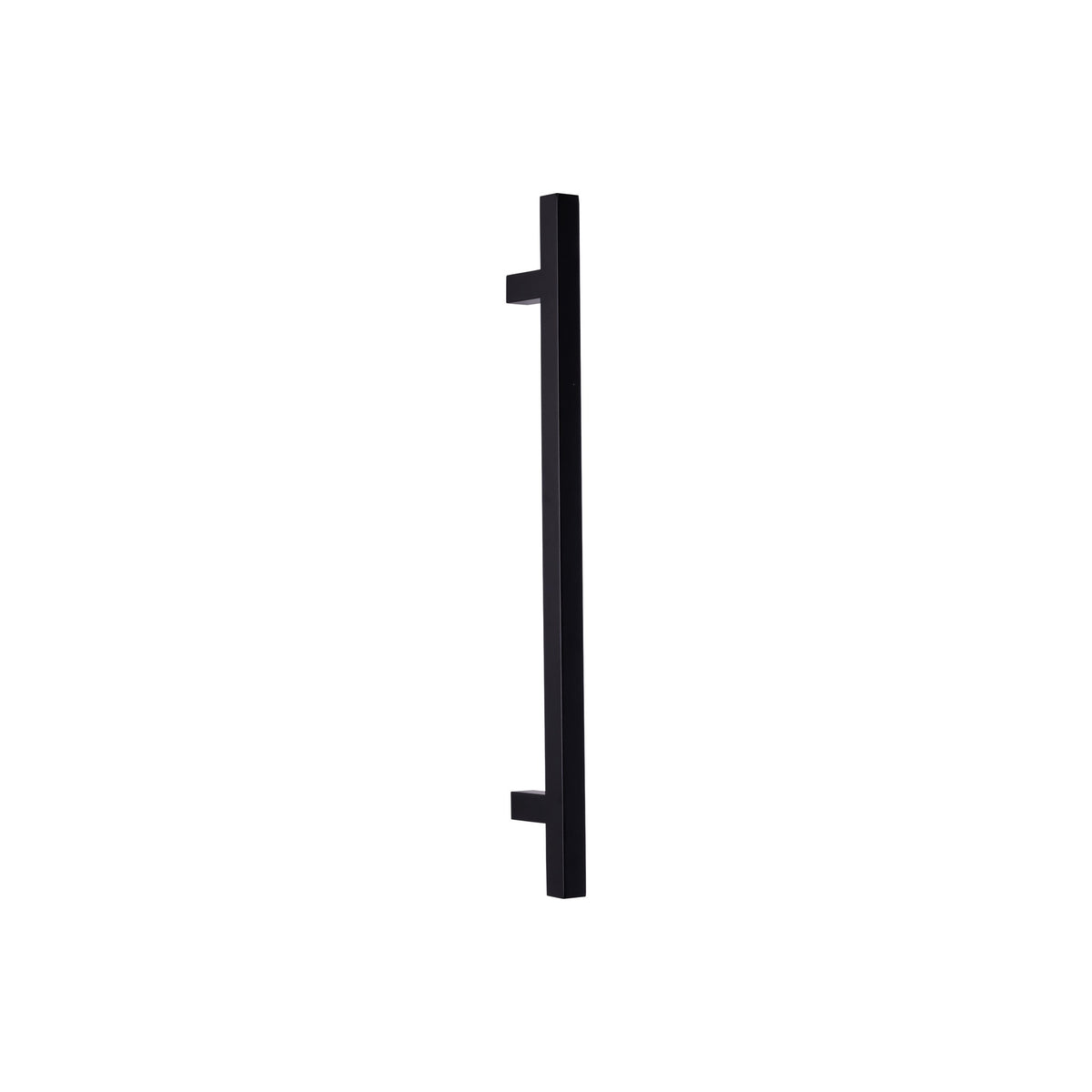

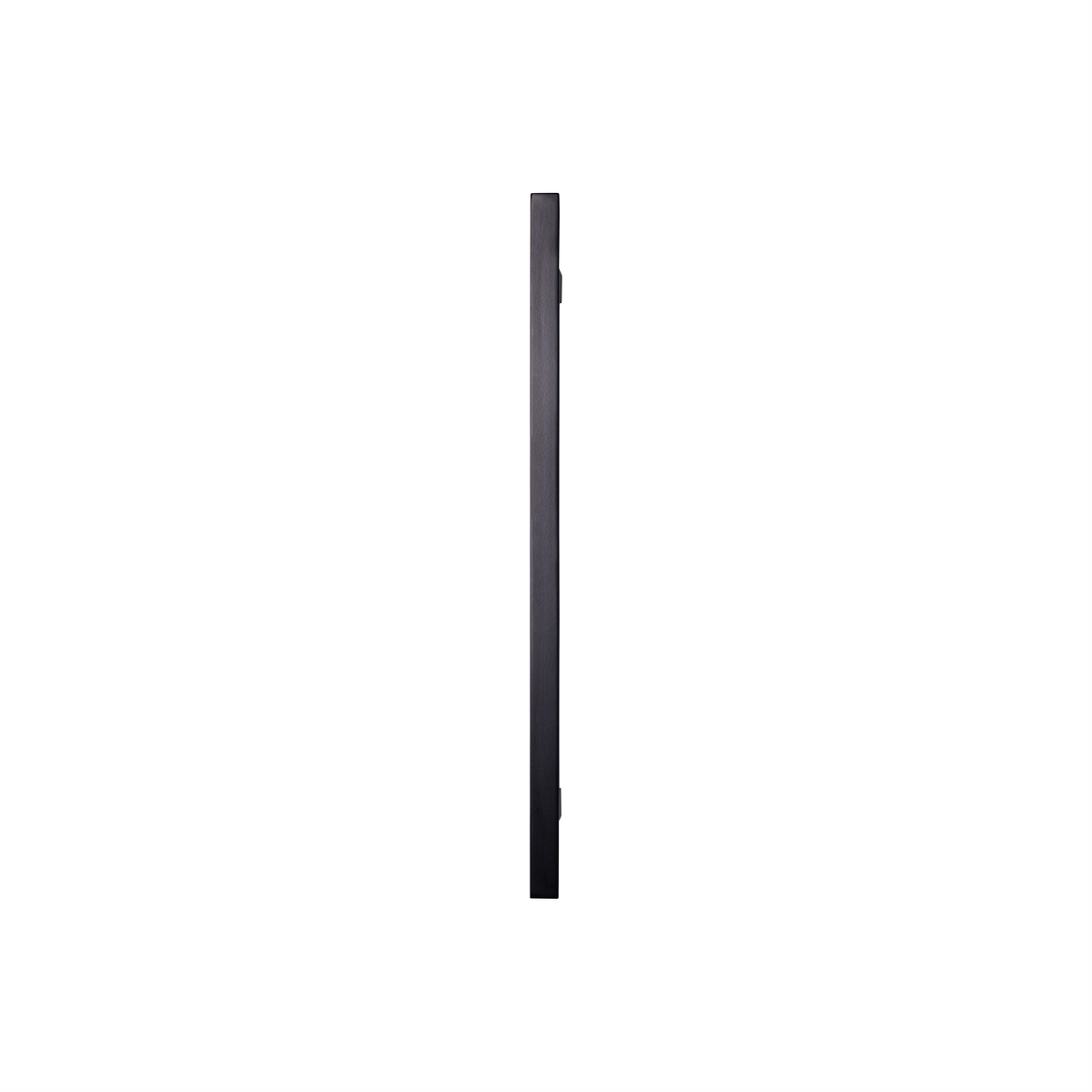

- Finishes: Brushed stainless, or powder coat in black, bronze or a custom Dulux colour

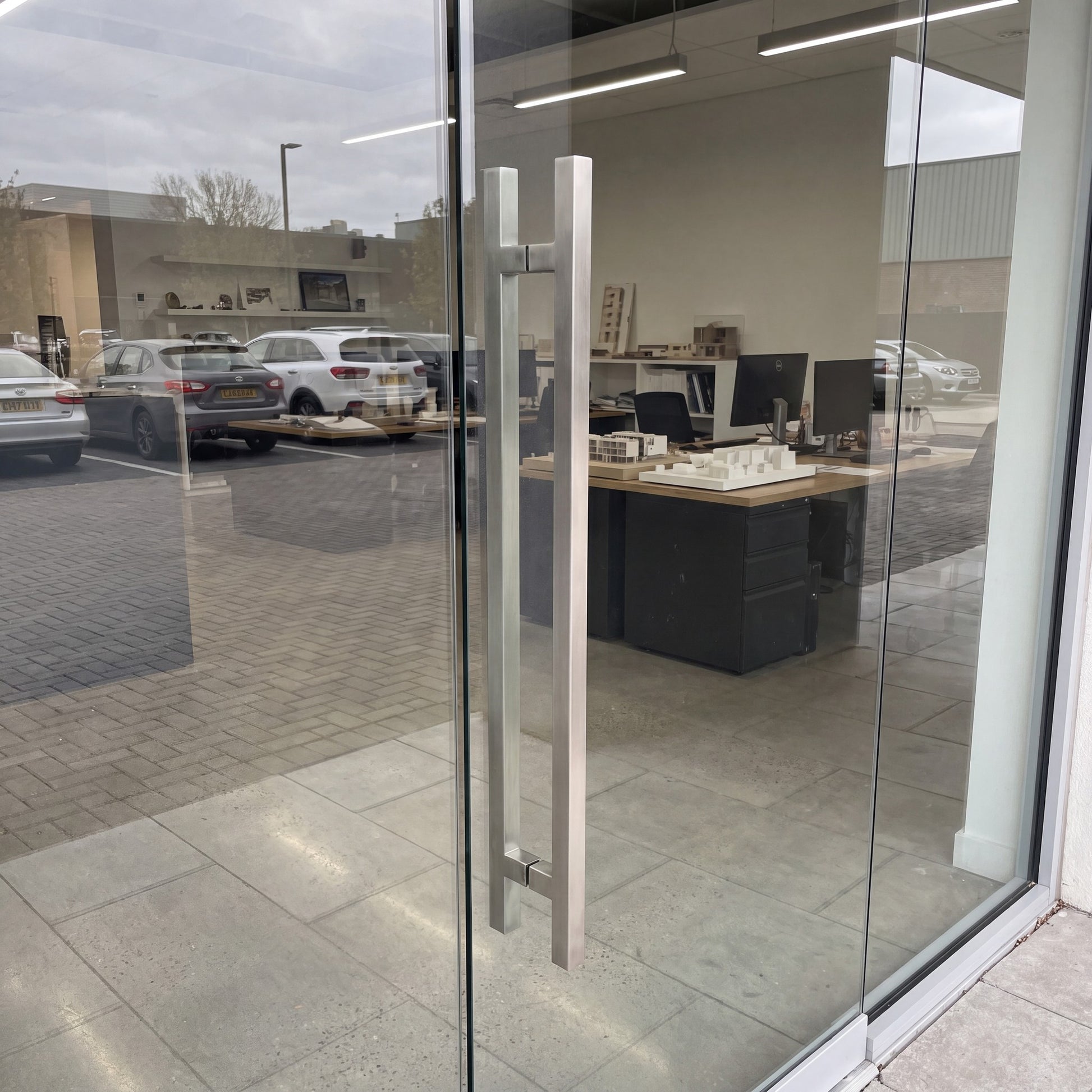

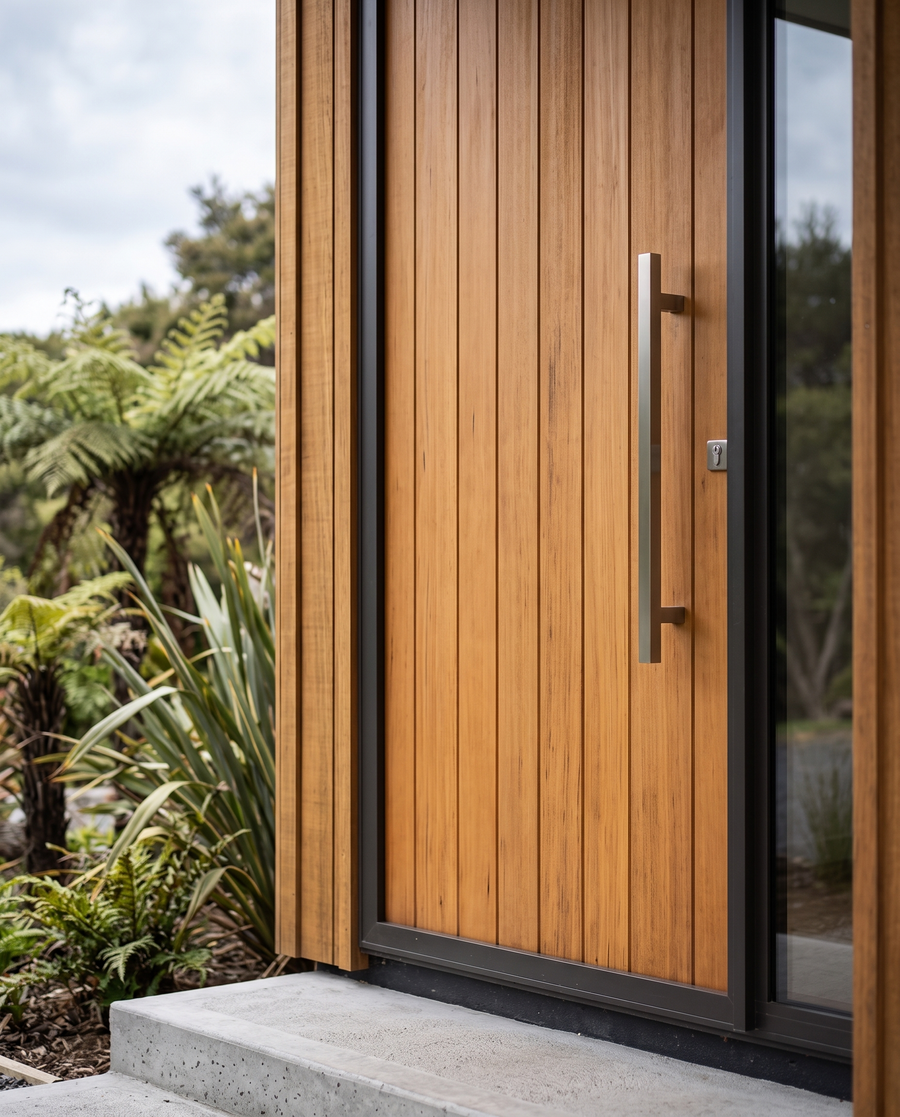

- Suitable for: Timber, aluminium, and glass doors
- Door thickness: timber and aluminium 32mm to 70mm, glass 10mm to 15mm
- Fixing: M8 through-bolts, back to back on a pair, or single sided with the disk supplied

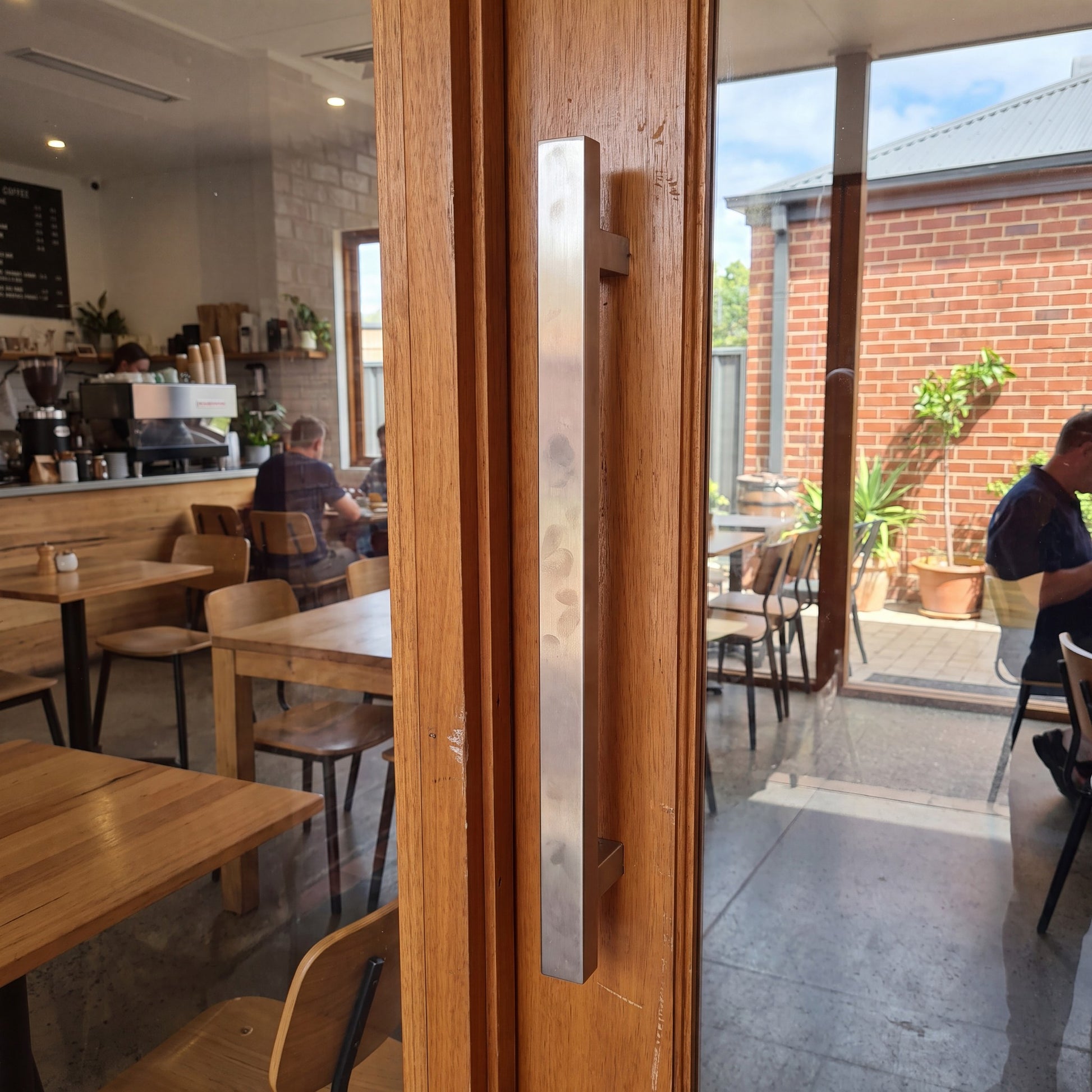

- Applications: Residential and commercial entryways

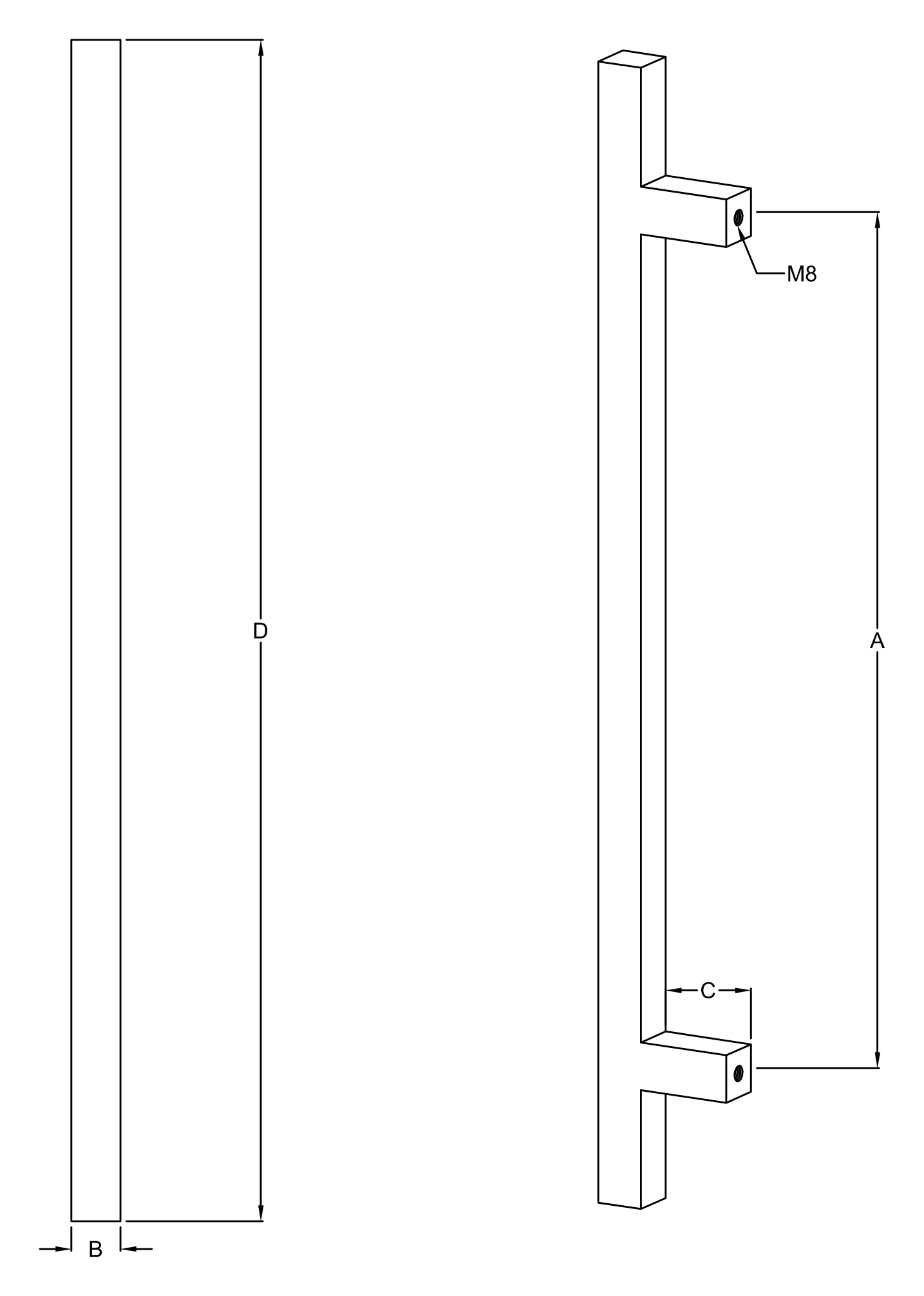

Dimensions
| Fixing centres | Overall length |
|---|---|
| 450mm | 600mm |
| 600mm | 800mm |
Profile: 25 × 25mm square. Clearance from door: 50mm. Projection from door face: 75mm.
Installation
Installation is straightforward and can be completed in minutes. Each handle comes with the correct fixings for standard timber, aluminium or glass doors.
- Measure the fixing centres on the handle and transfer those measurements to the door in the position you want
- Pilot-drill at 3 to 4 mm, then open the holes to 8.5 to 9 mm for the M8 bolts. On a glass door the holes cannot be drilled on site: the panel has to be supplied cut to size and drilled by your glass manufacturer
- Secure the mounting hardware through the door from the inside to outside
- Once the legs are fixed, the handle slides onto the ferrules on the inside of the door and locks tight with grubscrews for a rattle-free finish

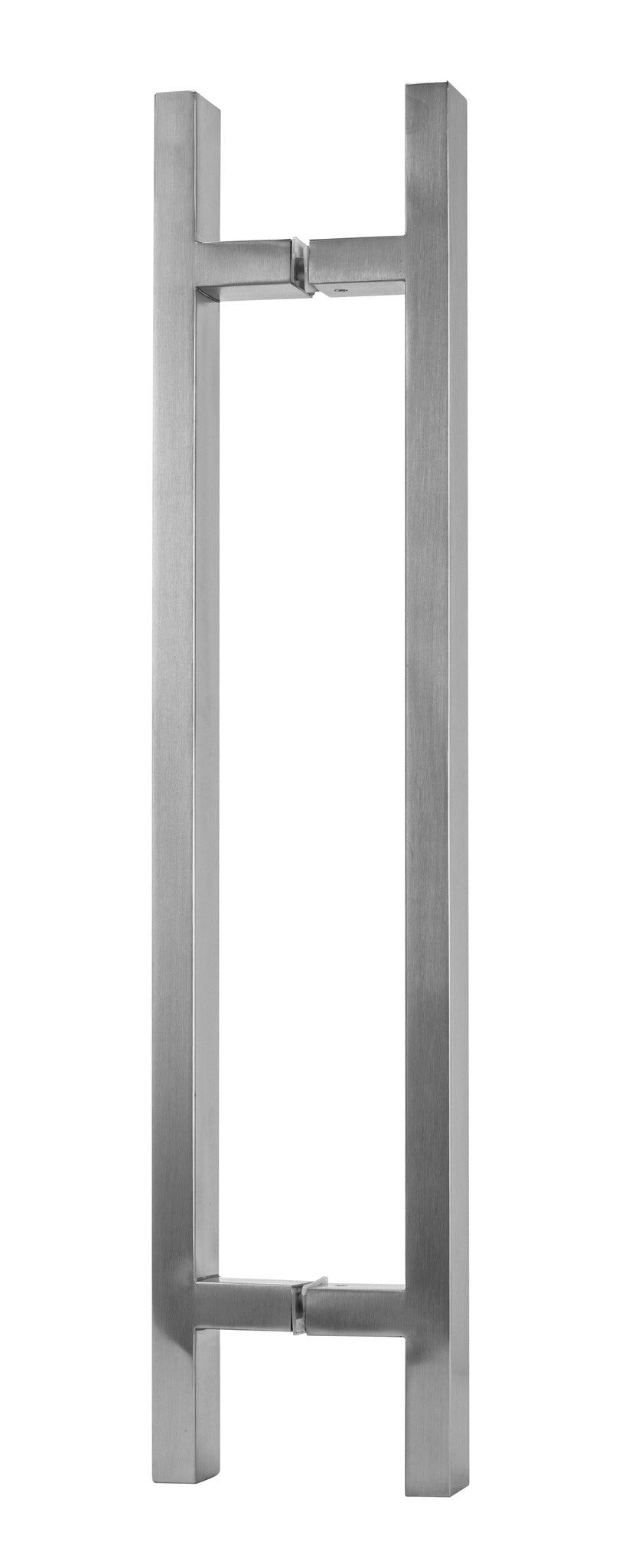

For a pair: mark and drill at the fixing centres shown above, then through-bolt the two handles together through the door (an easy DIY back-to-back fit). A printed guide is included with every order.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Pull handles as selected (one for a single or two for a pair)
- Through-fix mounting bolts
- Installation template
- Care instructions
