Lead time1 to 2 weeks

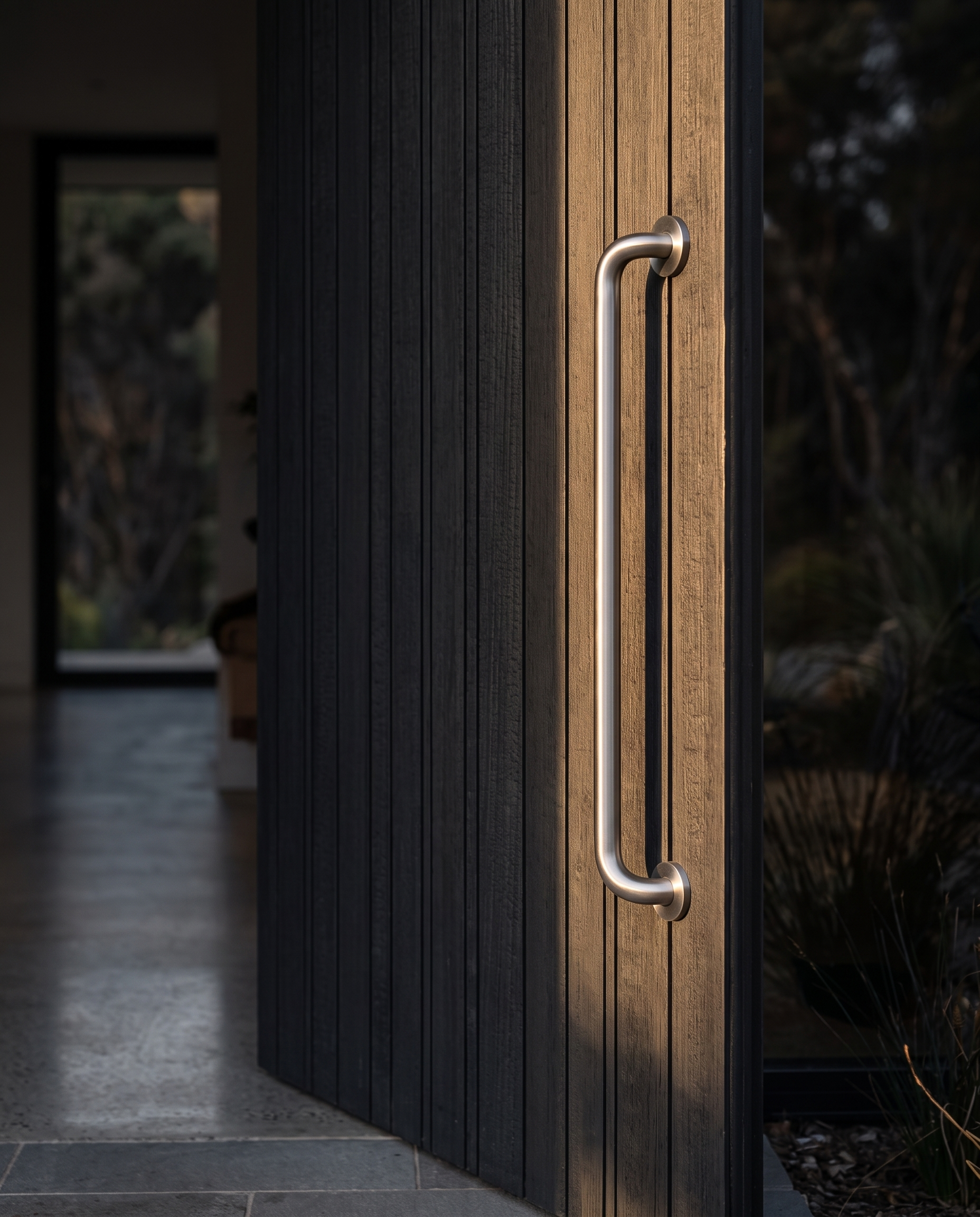

Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

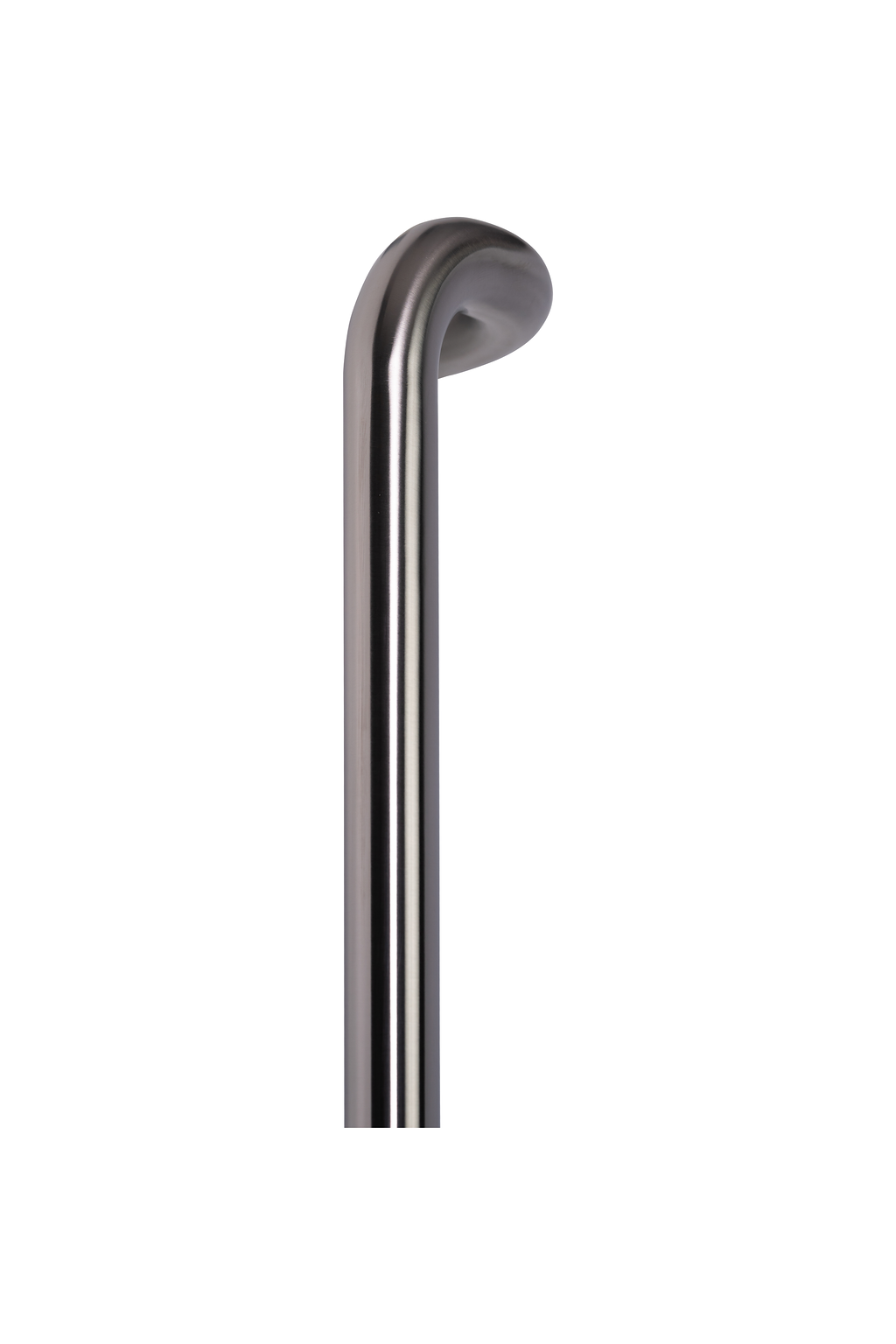

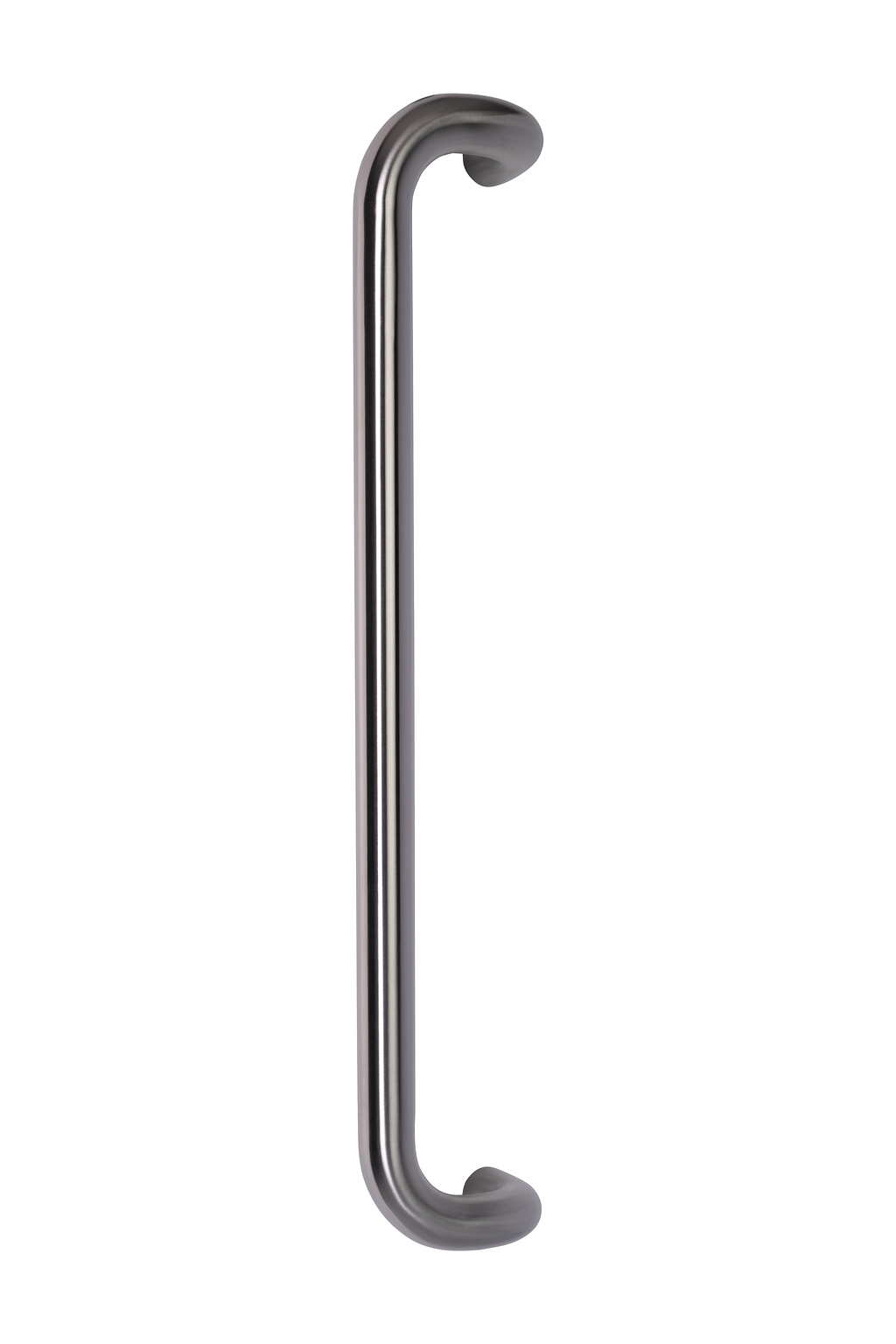

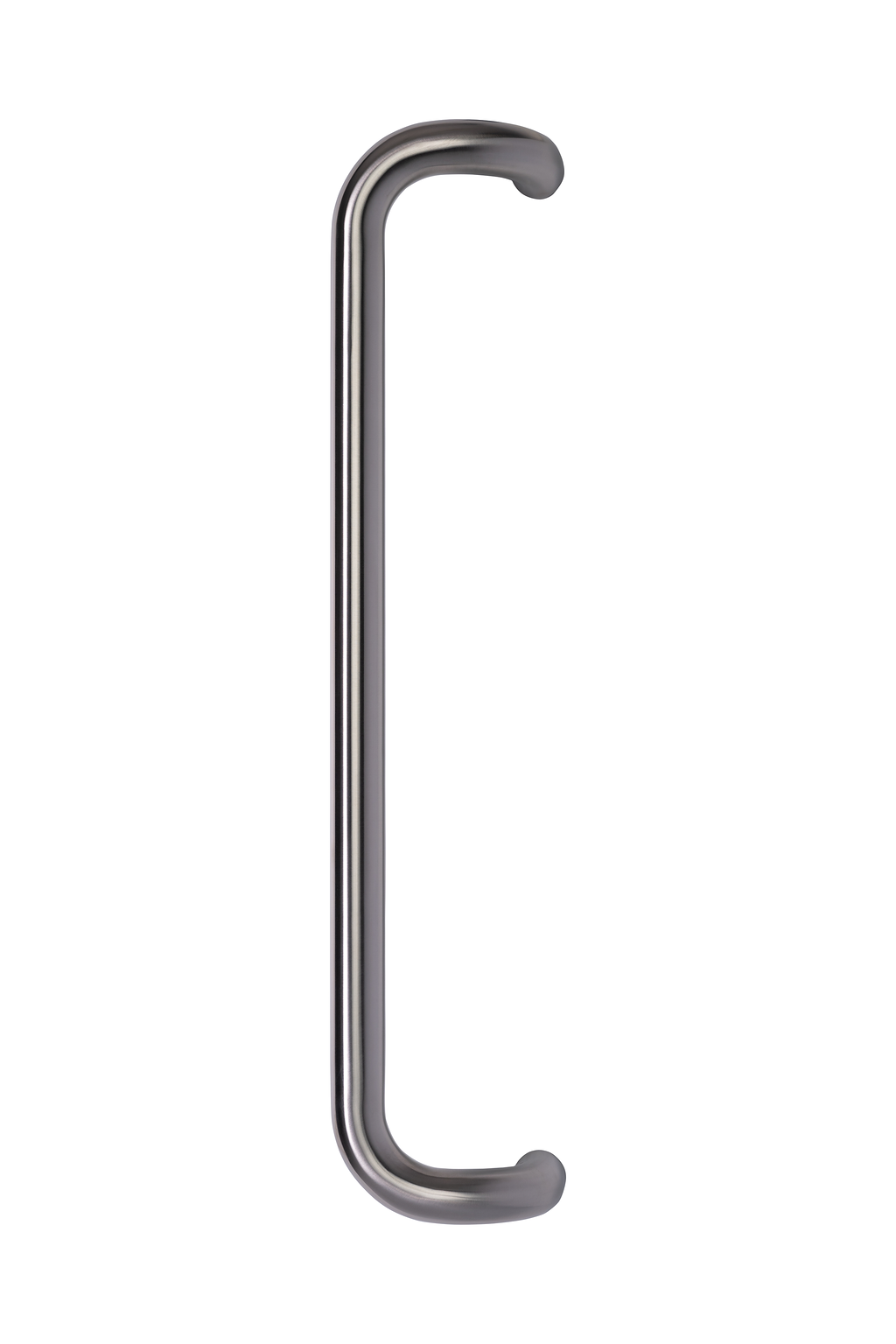

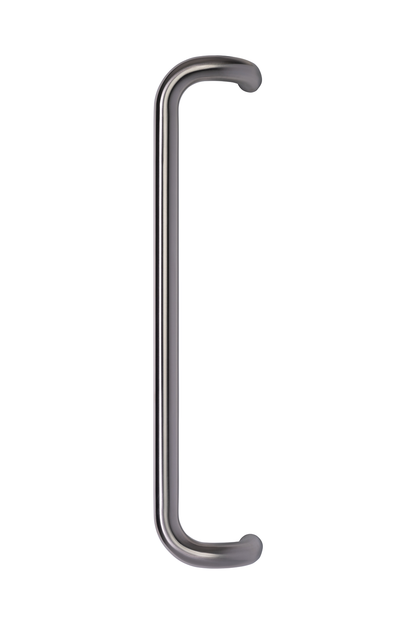

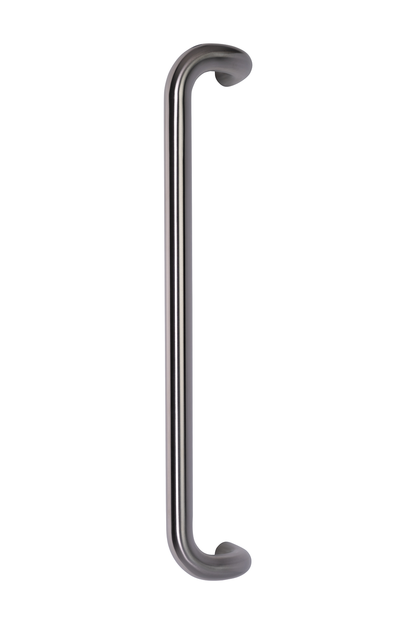

Engineered for strength and style, this Offset Pull Handle is crafted from 316 marine-grade stainless steel - delivering superior corrosion resistance and long-term durability, even in coastal environments.
The 32 mm diameter round tube offers a comfortable, solid grip, while the offset design provides a clean architectural look that sits proudly off the door surface. Available in a range of lengths and finishes, it’s the ideal choice for modern residential and commercial entrances.

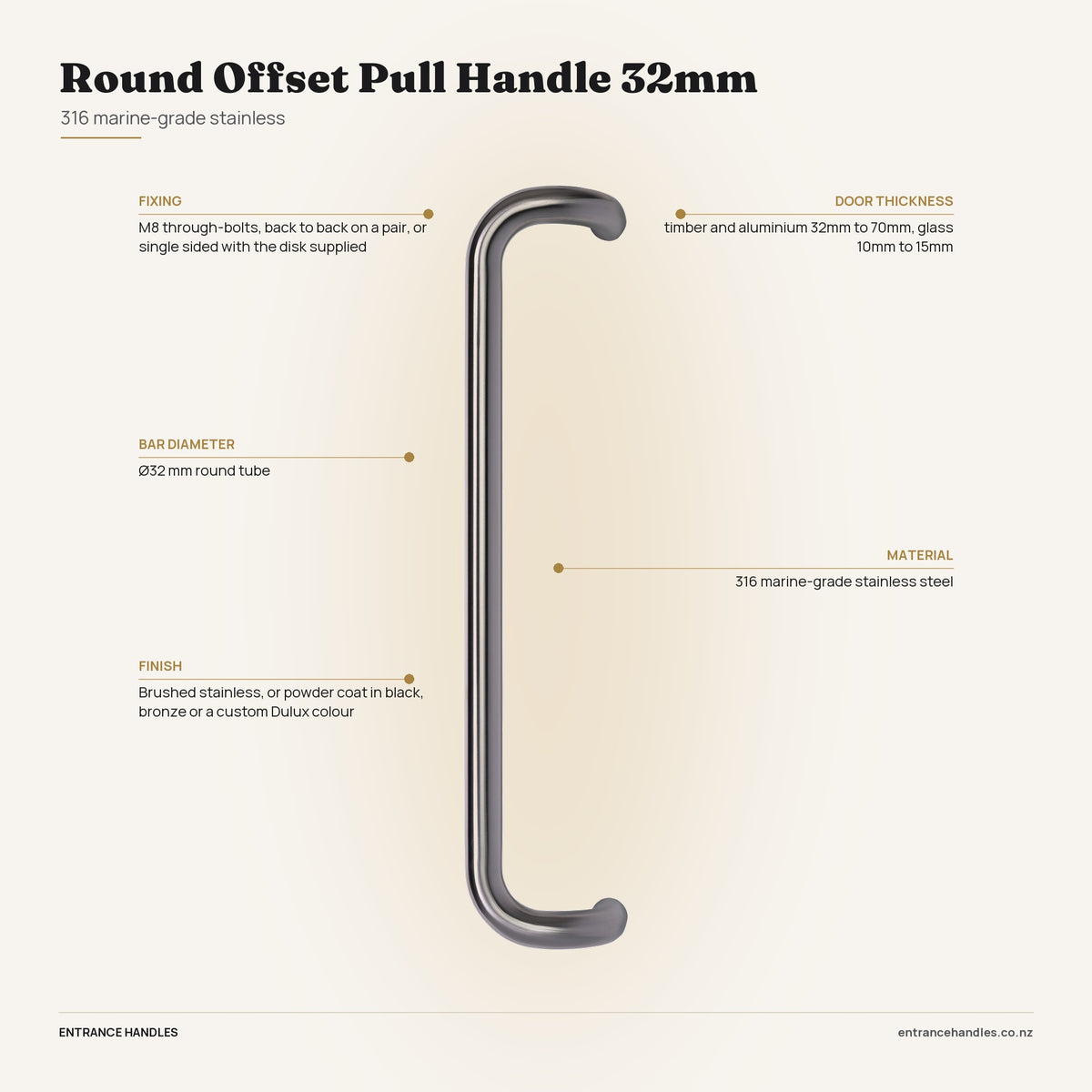

Specifications
- Material: 316 marine-grade stainless steel
- Accessibility: Compliant to AS 1428.1-2009 Design for Access and Mobility
- Diameter: Ø32 mm round tube
- Design: Offset mount for modern architectural styling

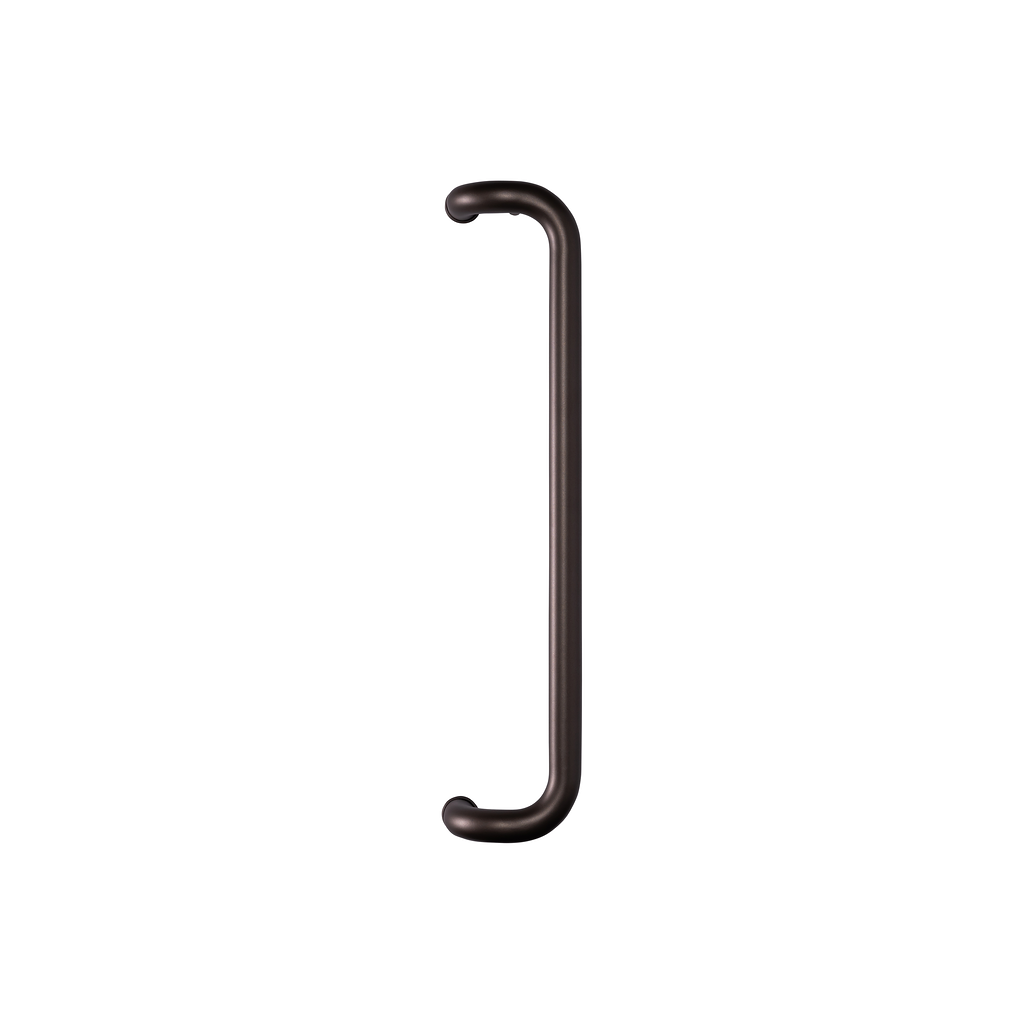

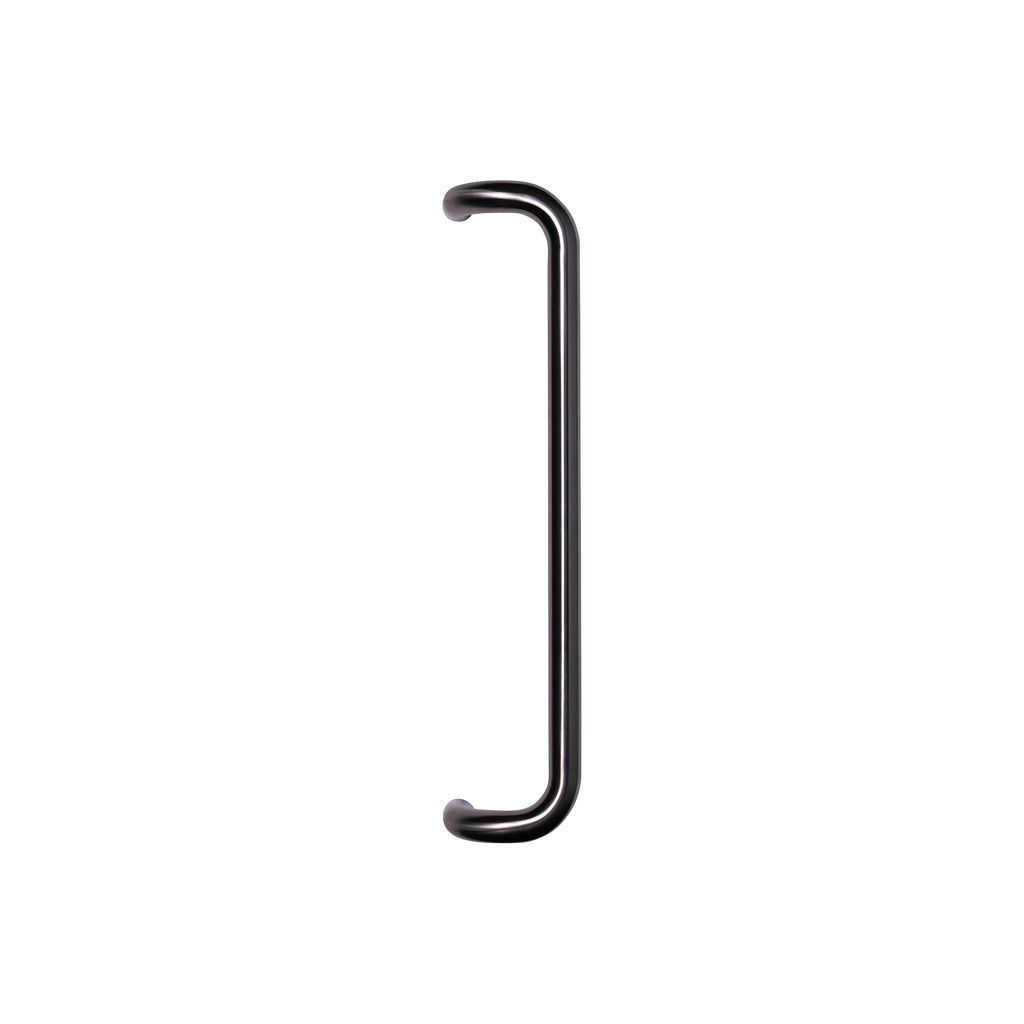

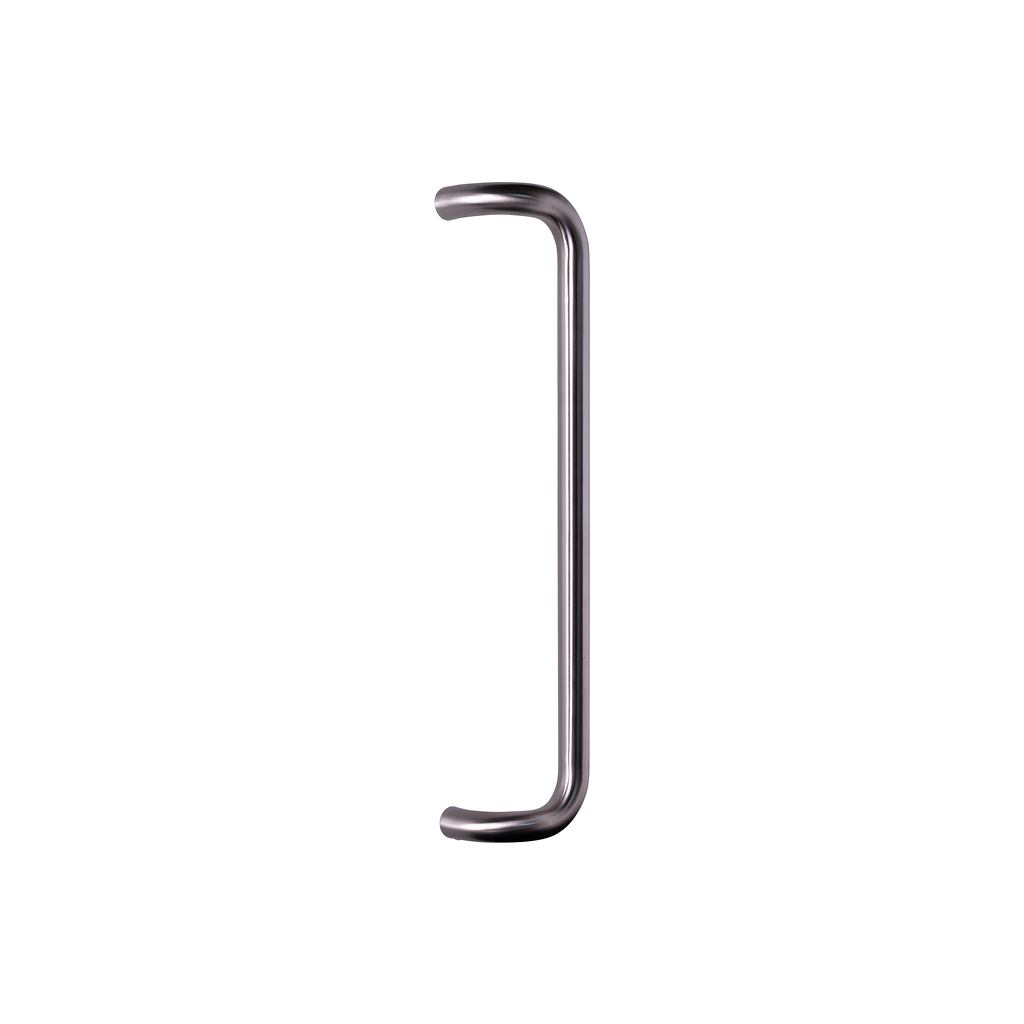

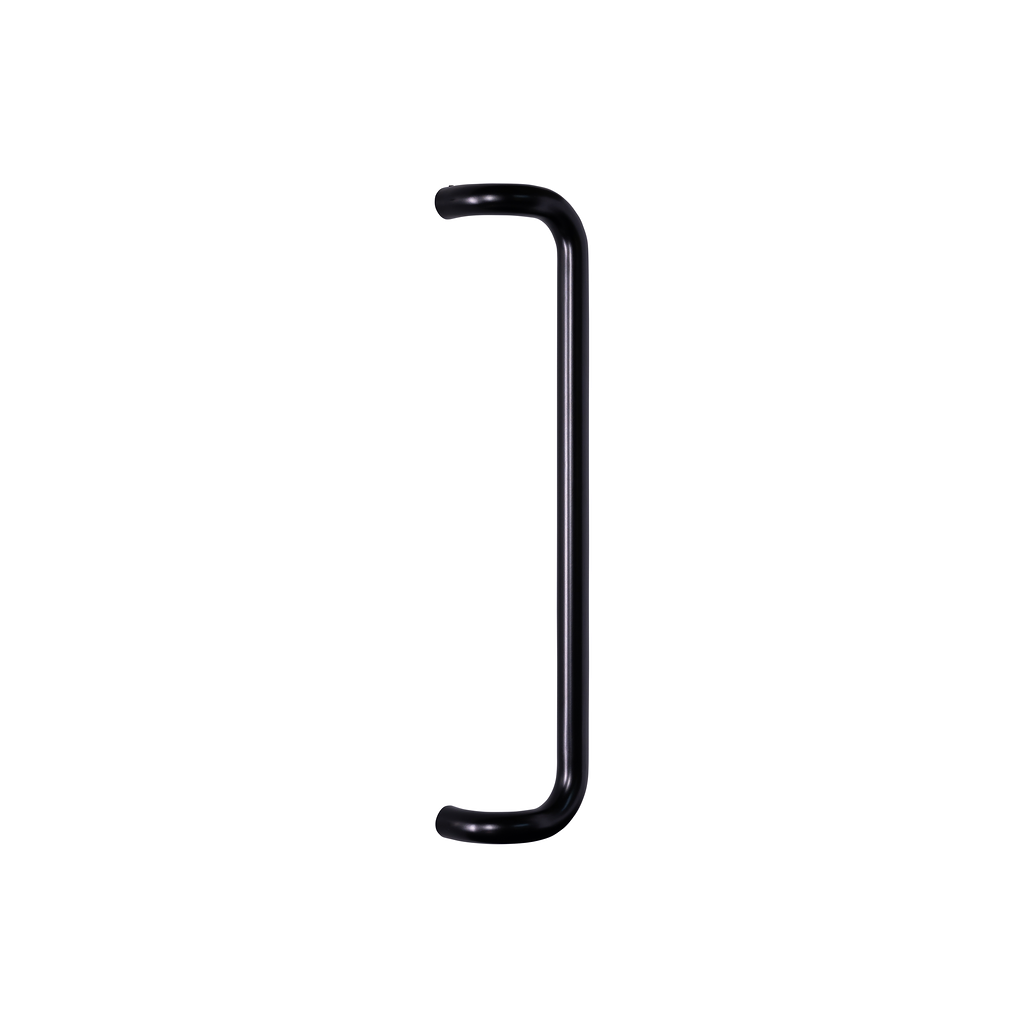

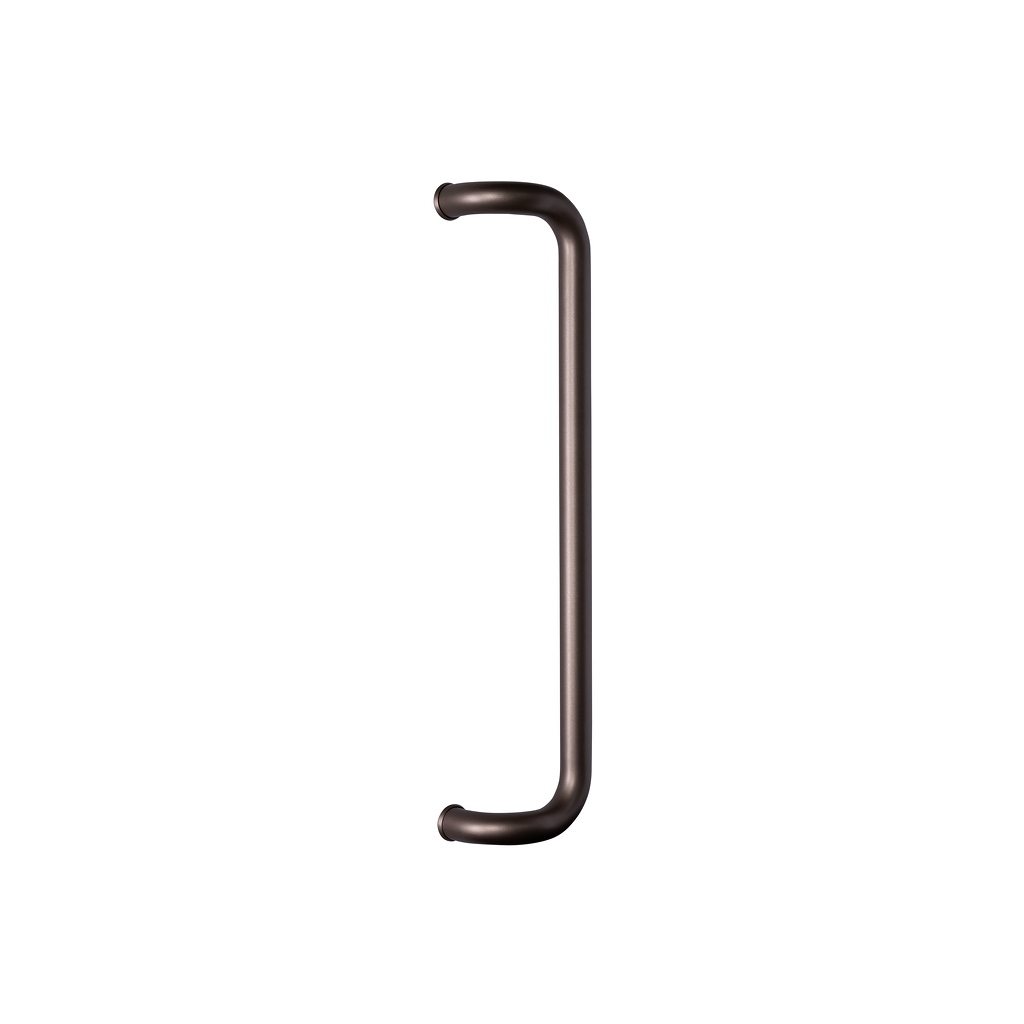

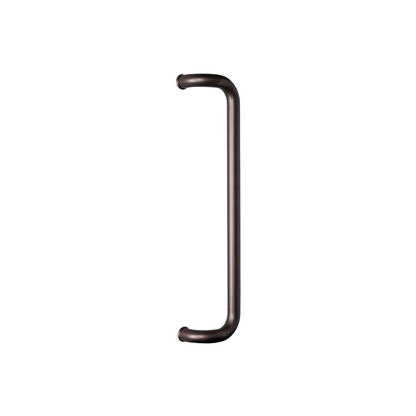

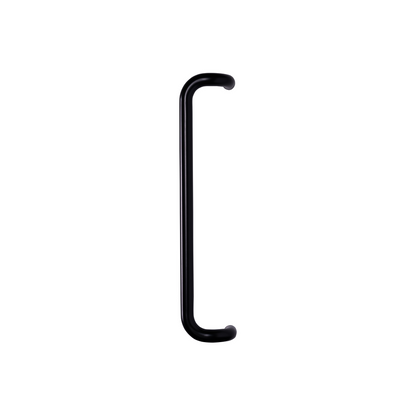

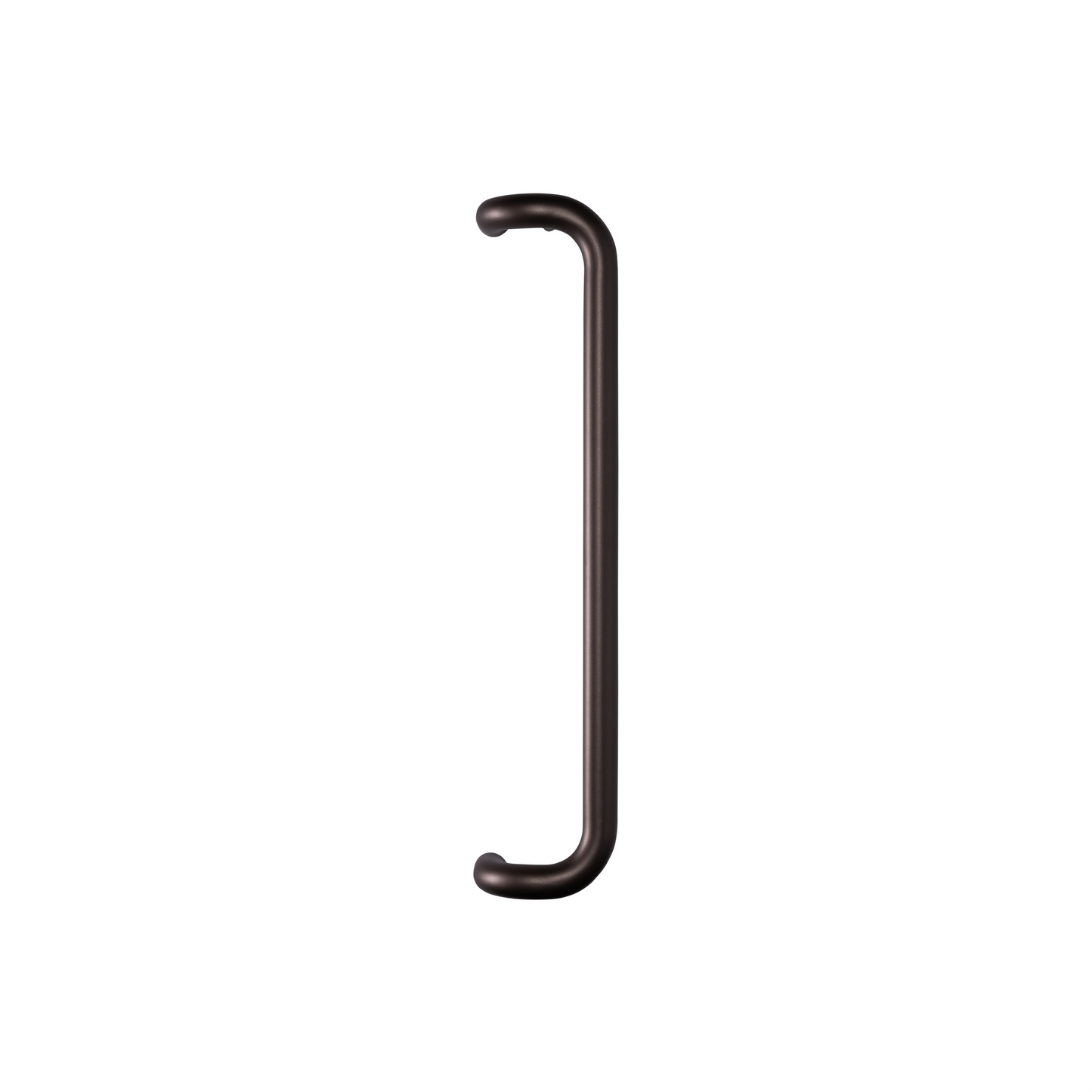

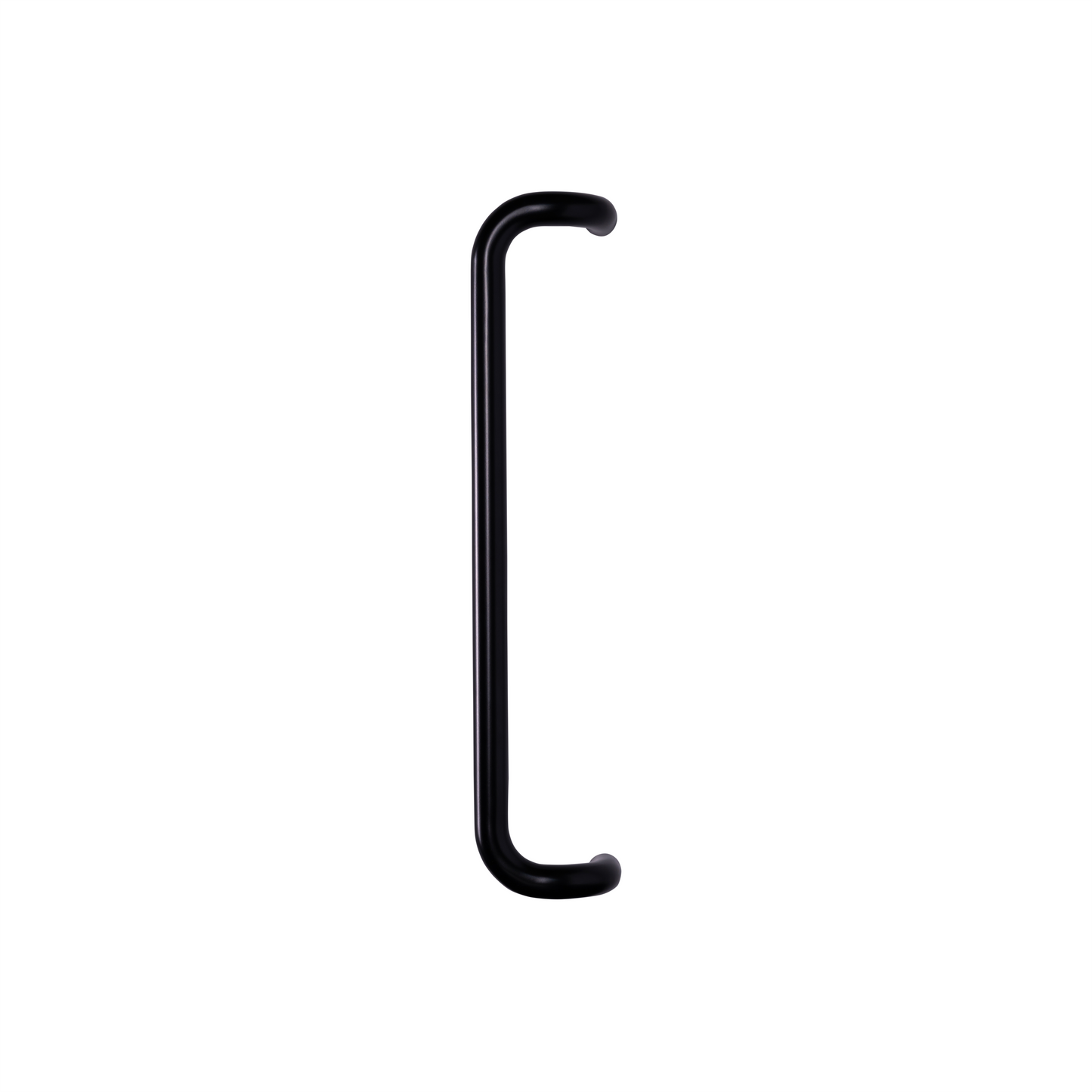

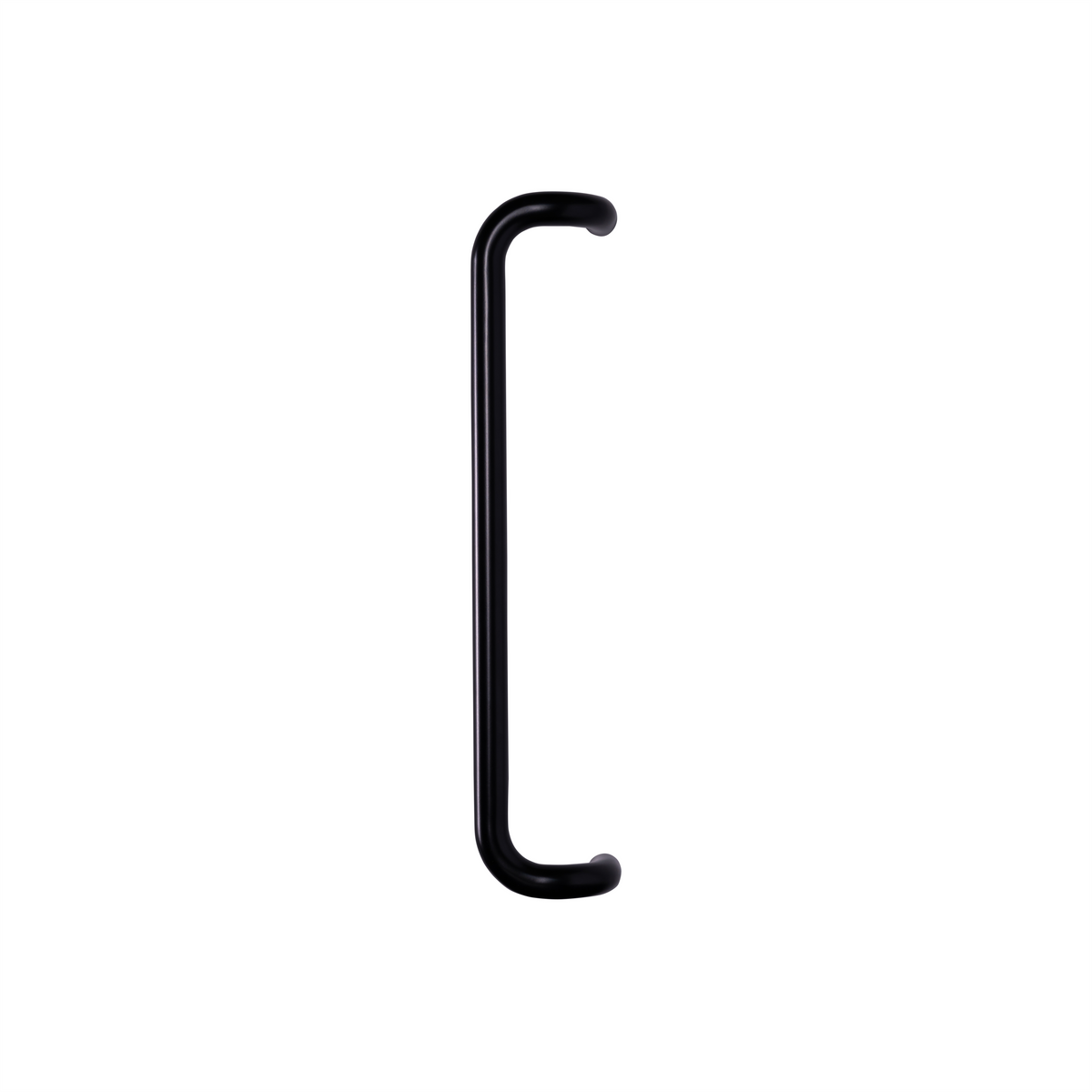

- Finish options: Brushed stainless, or powder coat in black, bronze or a custom Dulux colour

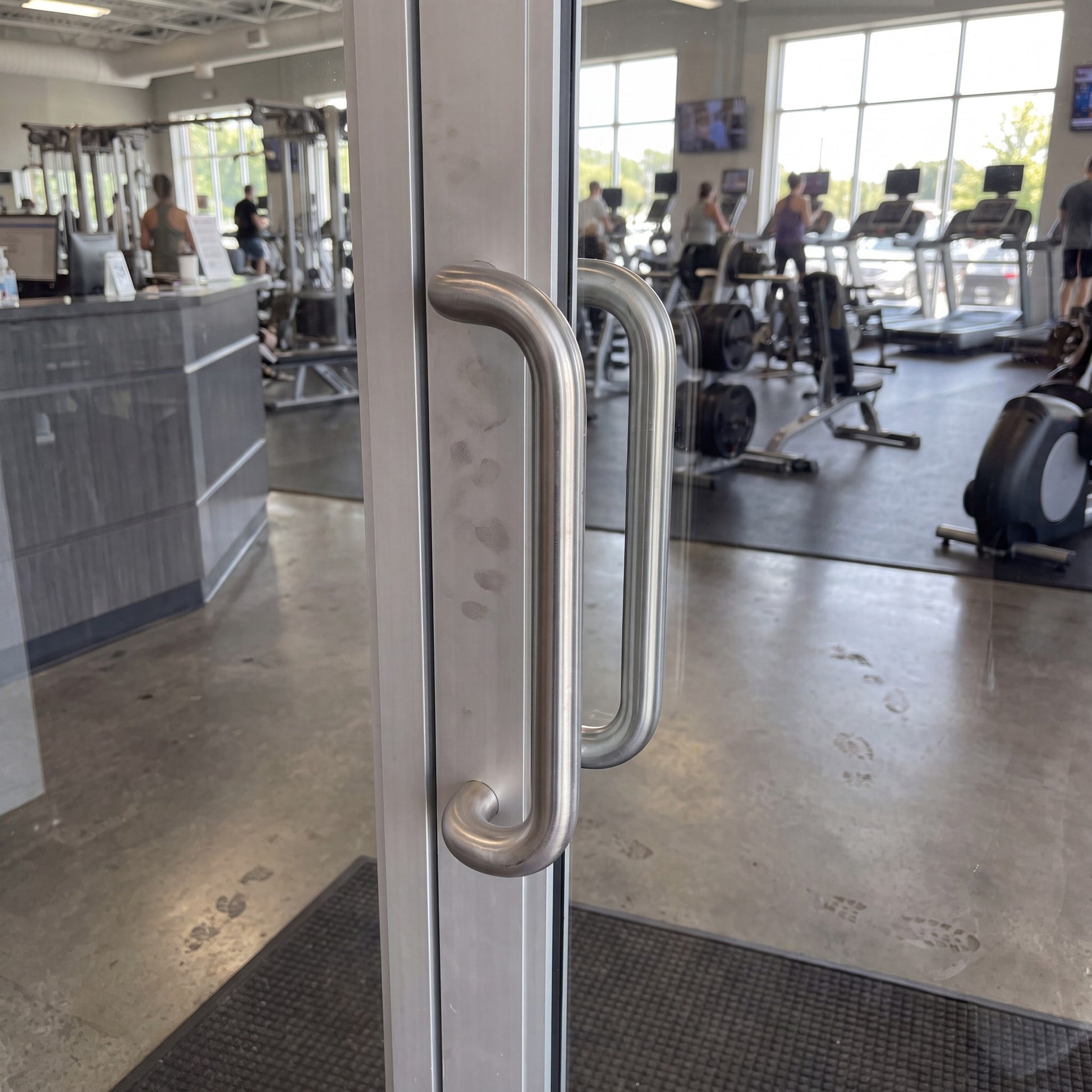

- Suitable for: Glass, timber, or aluminium doors
- Door thickness: timber and aluminium 32mm to 70mm, glass 10mm to 15mm
- Fixing: M8 through-bolts, back to back on a pair, or single sided with the disk supplied
- Applications: Residential and commercial entryways

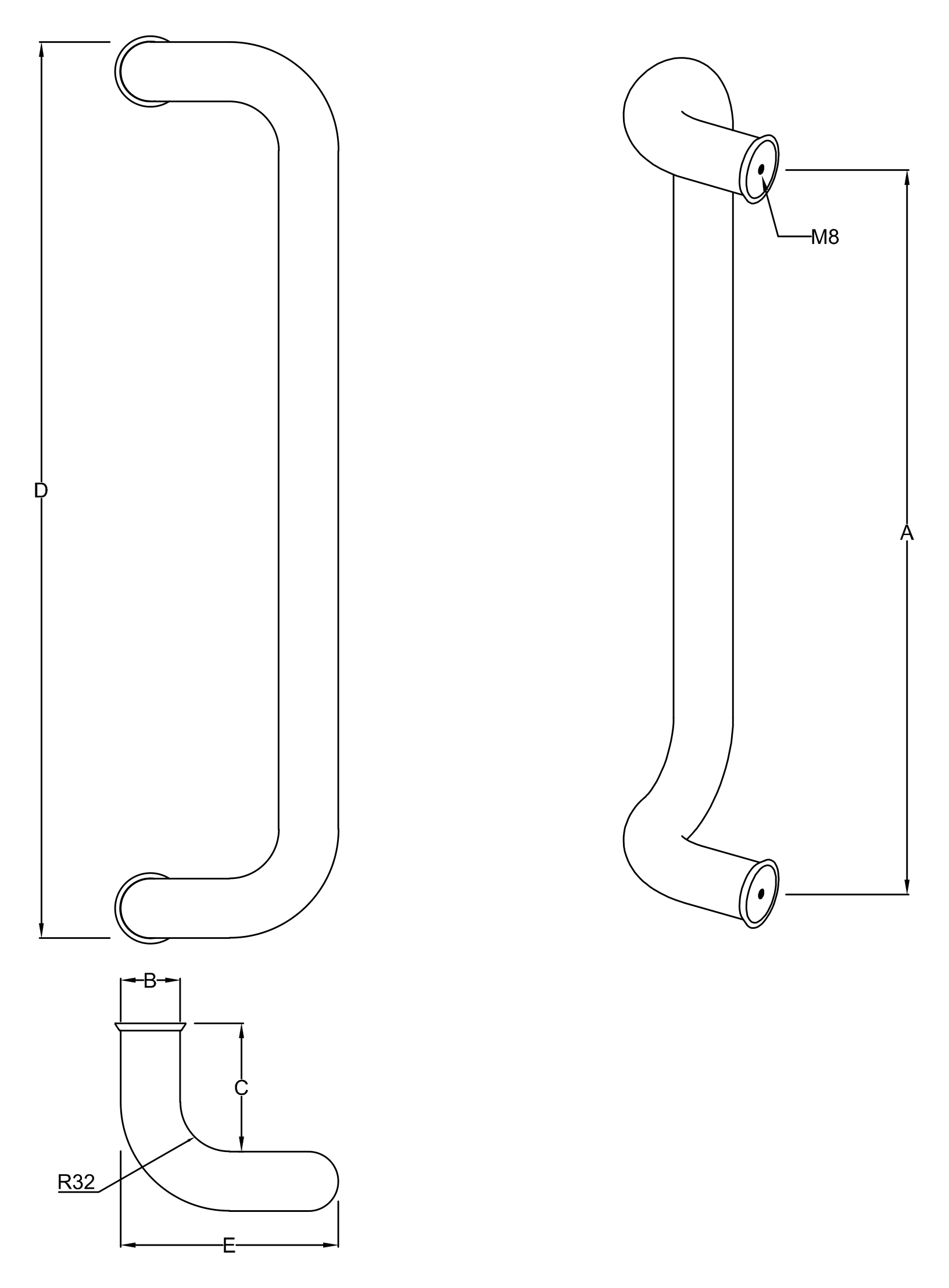

Dimensions
| Fixing centres | Overall length |
|---|---|
| 300mm | 332mm |
| 450mm | 482mm |
| 600mm | 632mm |
| 800mm | 832mm |
| 1000mm | 1032mm |
Profile: 32mm round tube. Bend radius: R32. Clearance from door: 50mm. Offset: 132mm. Projection from door face: 82mm.
Installation
Installation is straightforward and can be completed in minutes. Each handle comes with the correct fixings for standard timber, aluminium or glass doors.
- Measure the fixing centres on the handle and transfer those measurements to the door in the position you want
- Pilot-drill at 3 to 4 mm, then open the holes to 8.5 to 9 mm for the M8 bolts. On a glass door the holes cannot be drilled on site: the panel has to be supplied cut to size and drilled by your glass manufacturer
- Secure the mounting hardware through the door from the inside to outside
- Once the legs are fixed, the handle slides onto the ferrules on the inside of the door and locks tight with grubscrews for a rattle-free finish

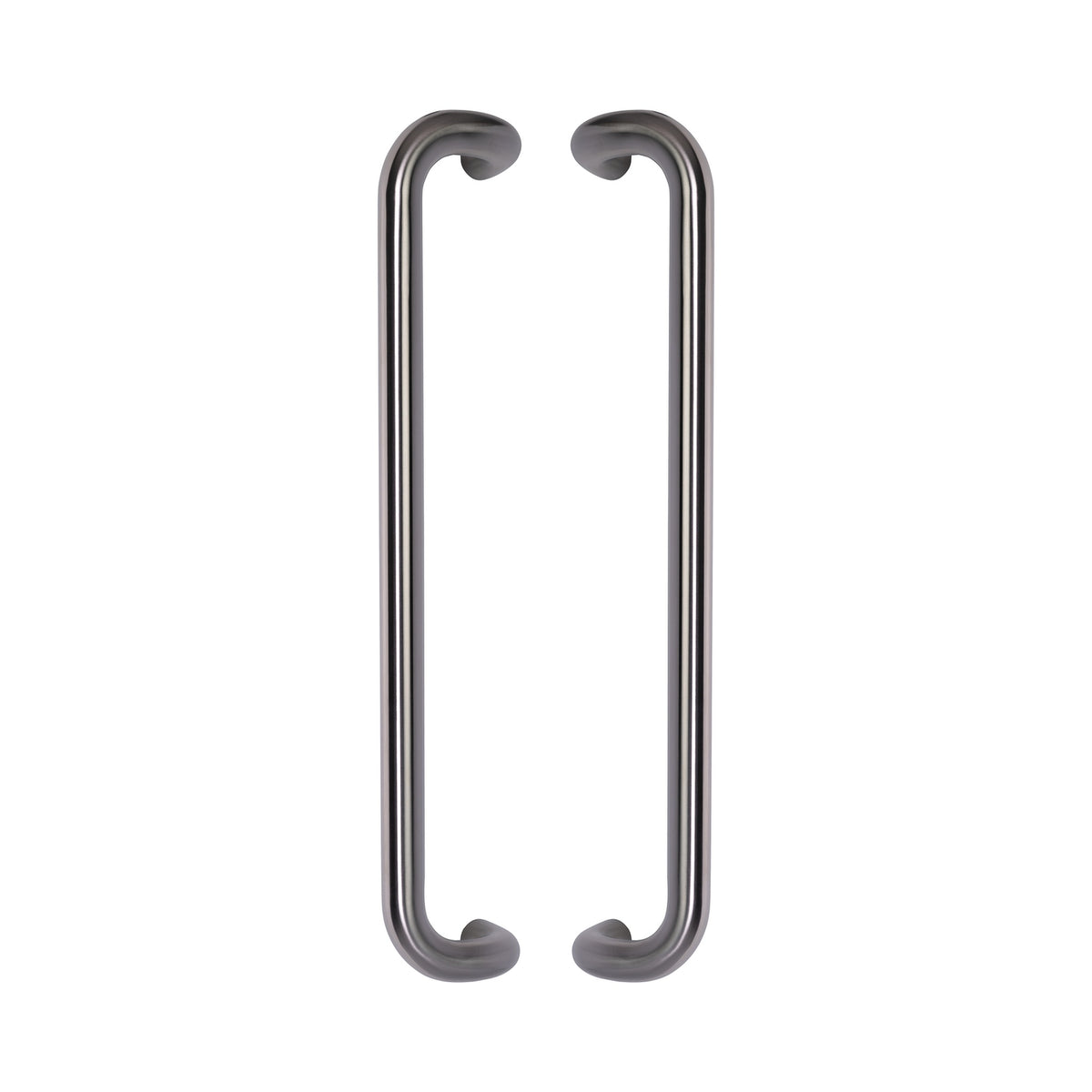

For a pair: mark and drill at the fixing centres shown above, then through-bolt the two handles together through the door (an easy DIY back-to-back fit). A printed guide is included with every order.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Pull handles as selected (one for a single or two for a pair)
- Through-fix mounting bolts
- Installation template
- Care instructions
