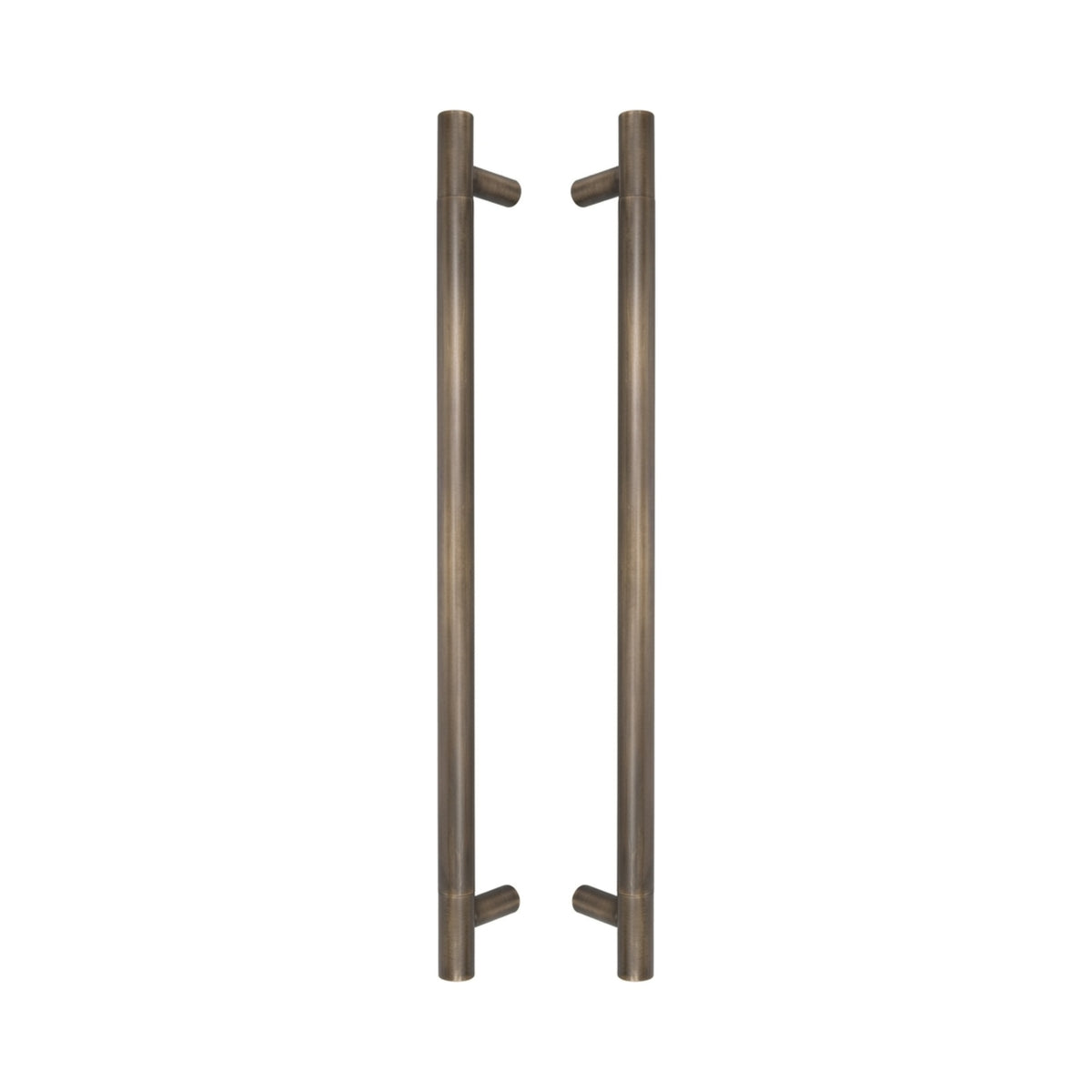

Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

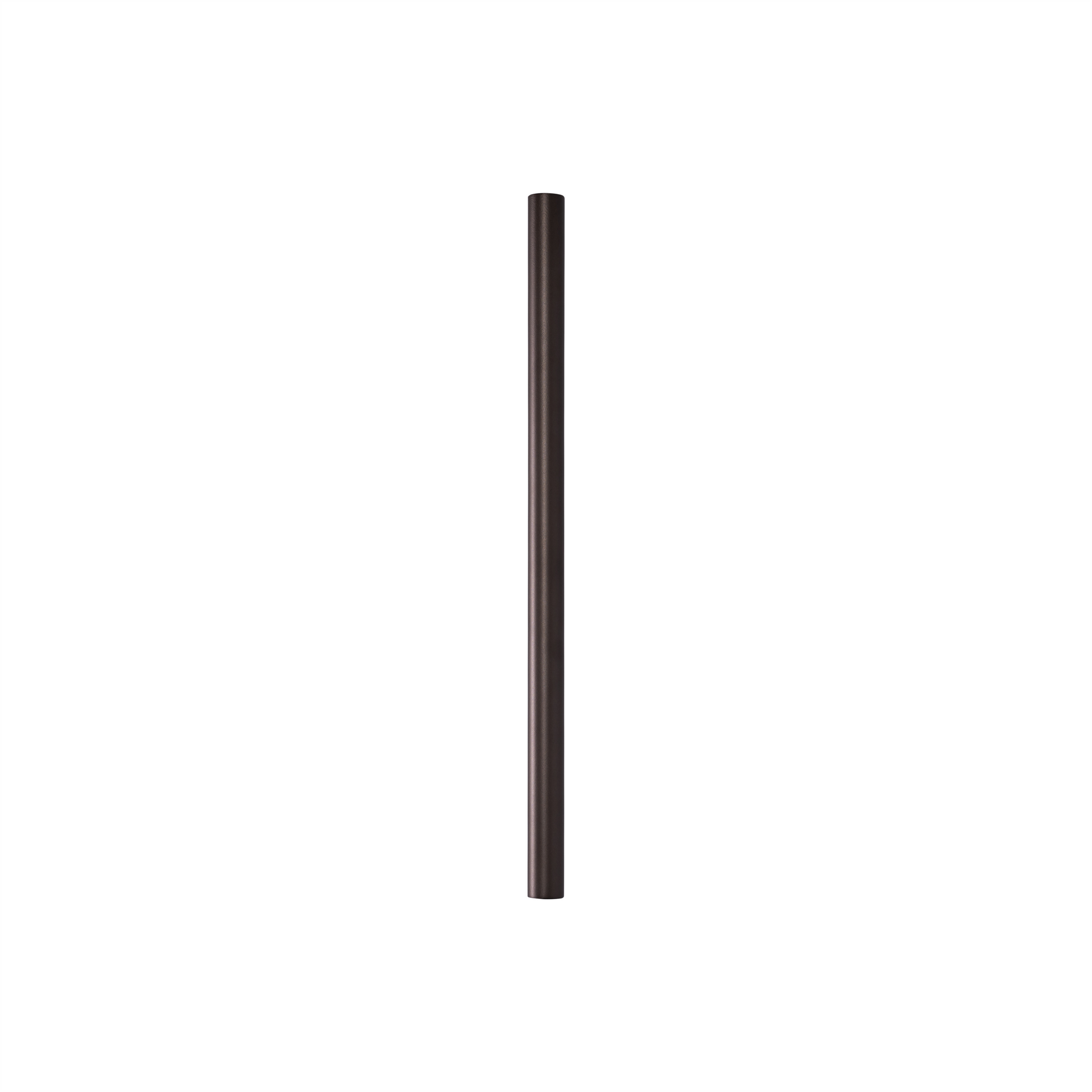

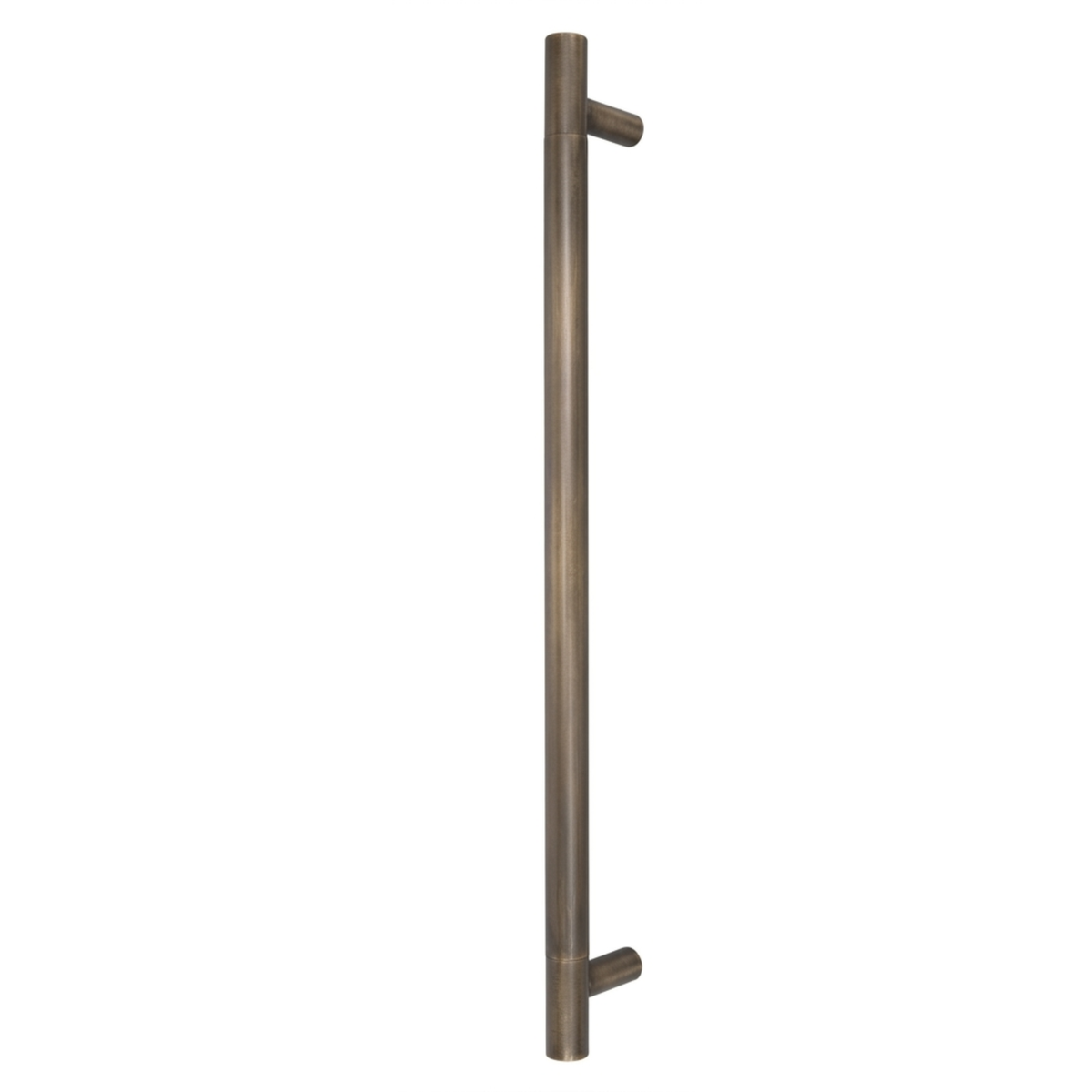

The Round Tubular Pull Handle 32mm in tubular brass with a bronze finish, made to order in New Zealand. Choose your finish when you order: matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time.

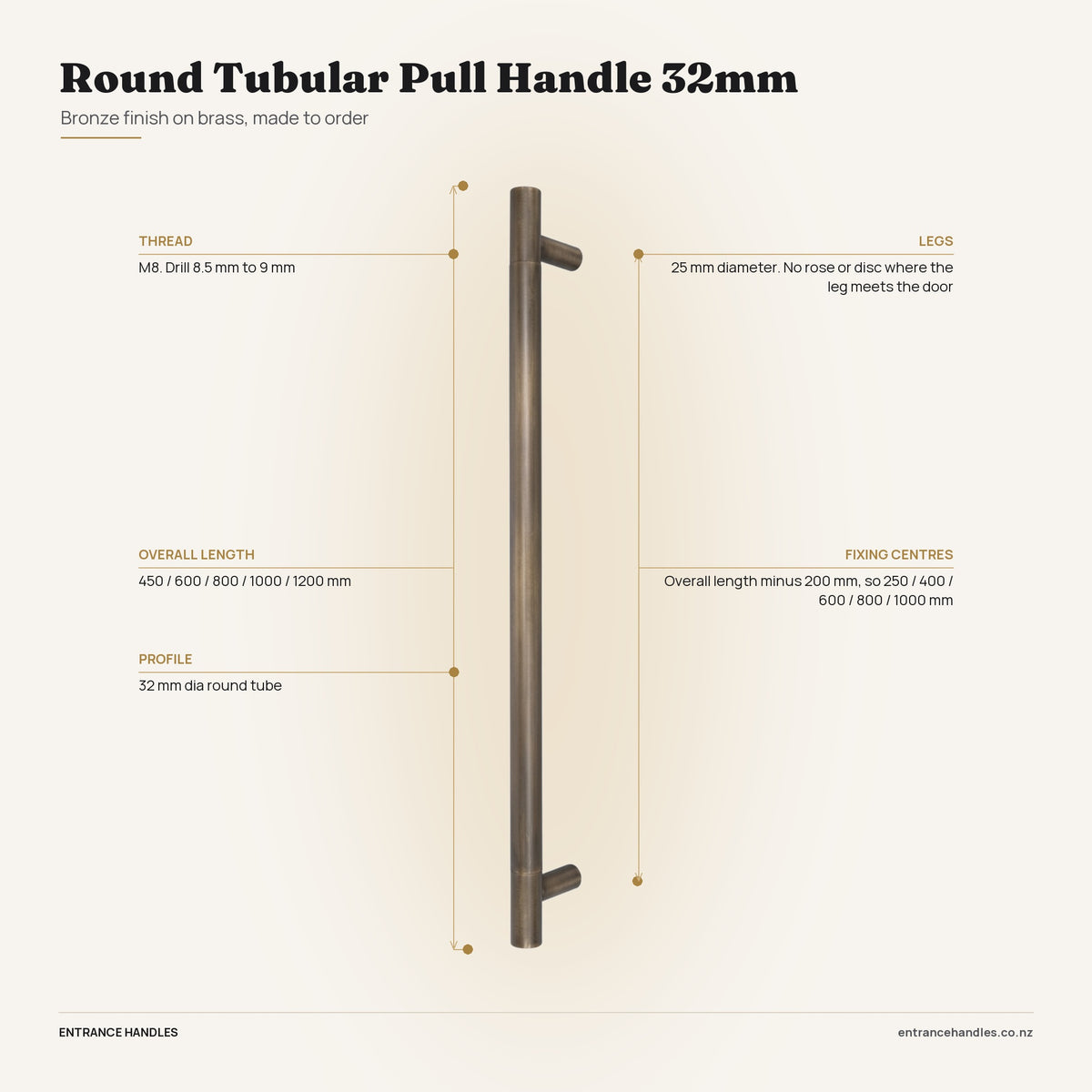

Specifications
- Material: Tubular brass, bronze-finished (hollow round section, real brass, never stainless)
- Finish: Matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time (chosen when you order)
- Profile: 32 mm dia round tube
- Sizes (overall length): 450 / 600 / 800 / 1000 / 1200 mm
- Configuration: Pair (two handles, back-to-back, through-fixed) or single handle.
- Lead time: Made to order - allow 3 to 4 weeks
- Fixing centres: Overall length minus 200 mm, so 250 / 400 / 600 / 800 / 1000 mm, with each leg 100 mm in from the end
- Legs: 25 mm diameter. No rose or disc where the leg meets the door
- Thread: M8. Drill 8.5 mm to 9 mm
- Screws: 45 mm for glass from 3 mm to 15 mm, 70 mm for doors 25 mm to 40 mm thick. 80 mm screws are available for doors to 50 mm and 90 mm for doors to 60 mm. All figures allow 10 mm of thread engagement
- Single fixing: A single is fixed with a matching round dome on the inside face, threaded into the handle thread
Installation
For a pair: easy DIY back-to-back fit. Mark and drill at the fixing points, then through-bolt the two handles together through the door. A printed guide is included with every order.
Not sure on sizing? Get in touch and we'll help you spec it.
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
