Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

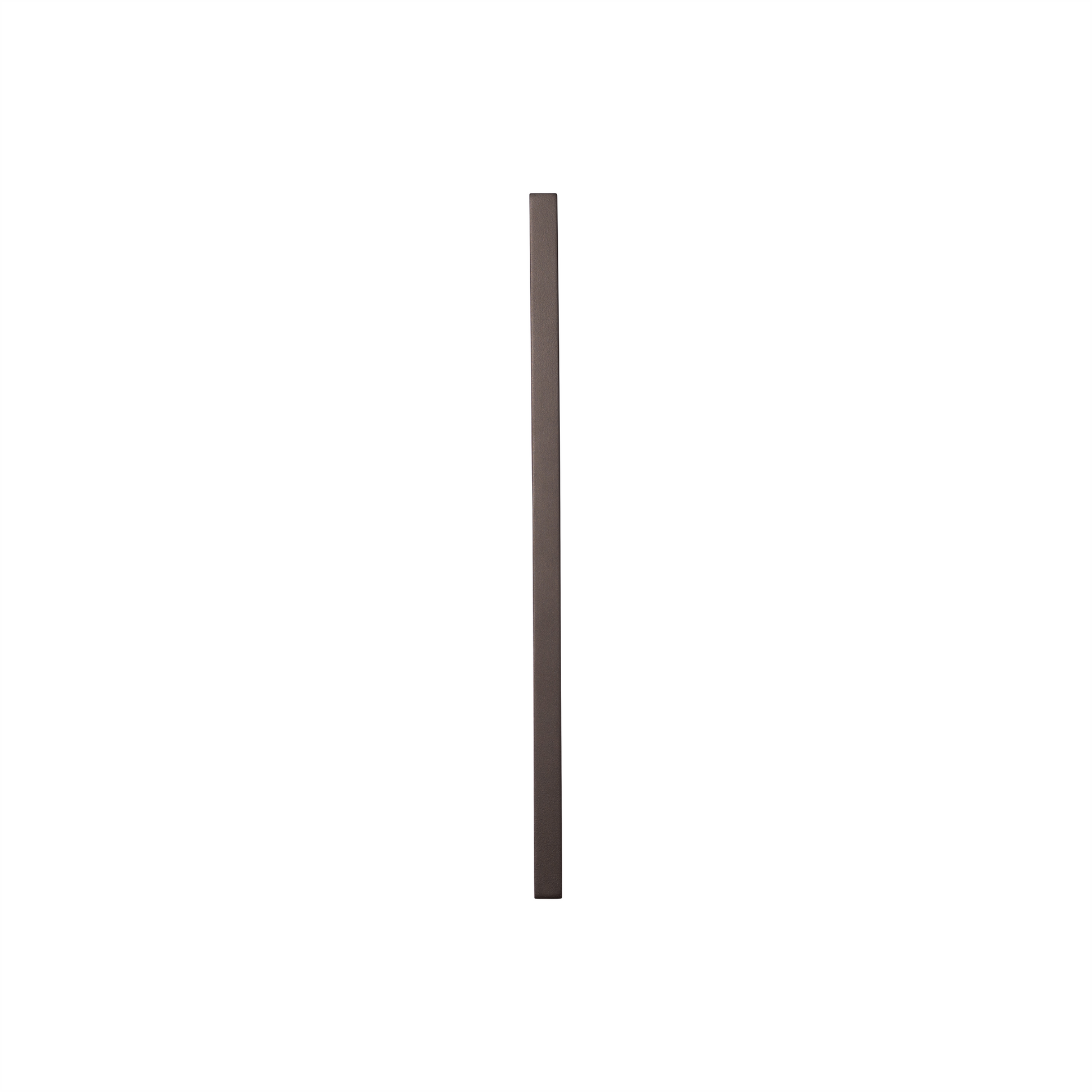

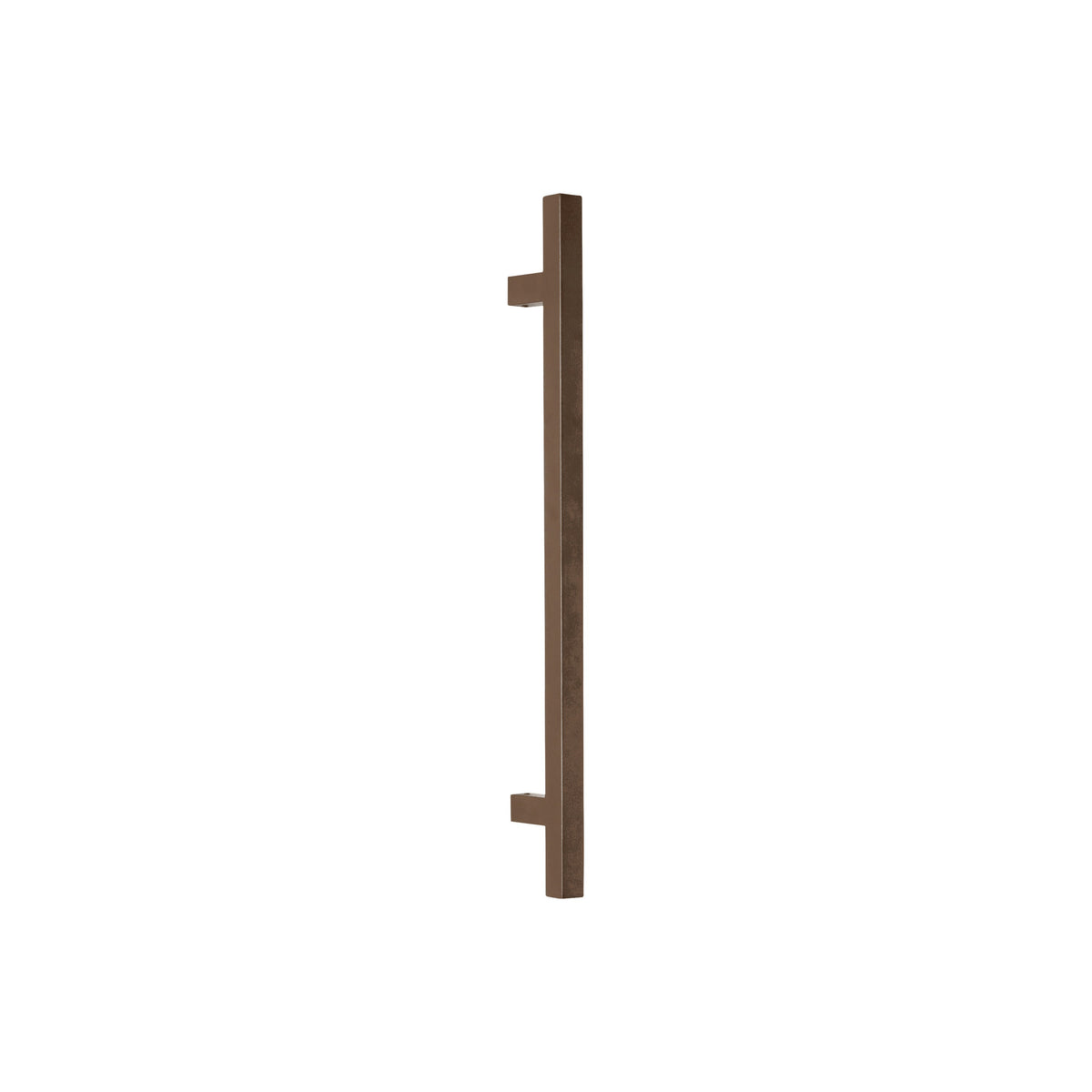

The Square T-Bar Pull Handle 25mm in bronze-finished solid brass, made to order in New Zealand. Choose your finish when you order: matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time.

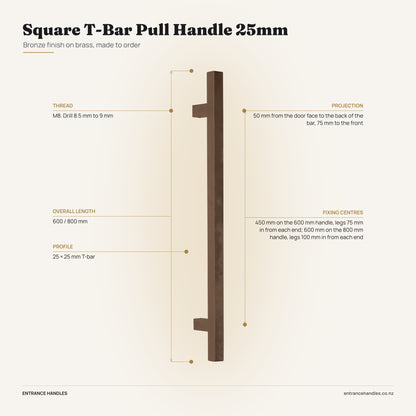

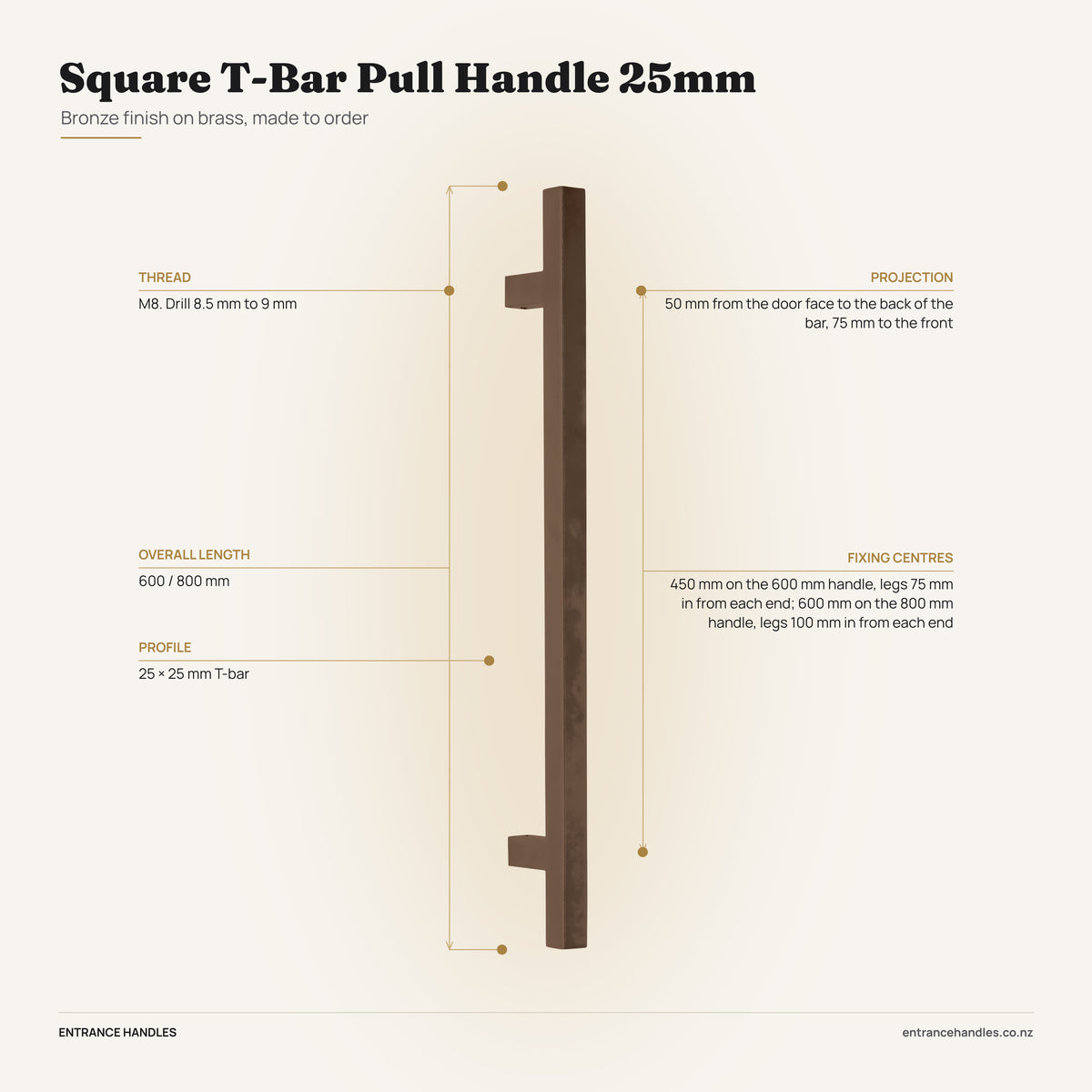

Specifications
- Material: Solid brass, bronze finish
- Finish: Matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time (chosen when you order)
- Profile: 25 × 25 mm T-bar
- Sizes (overall length): 600 / 800 mm

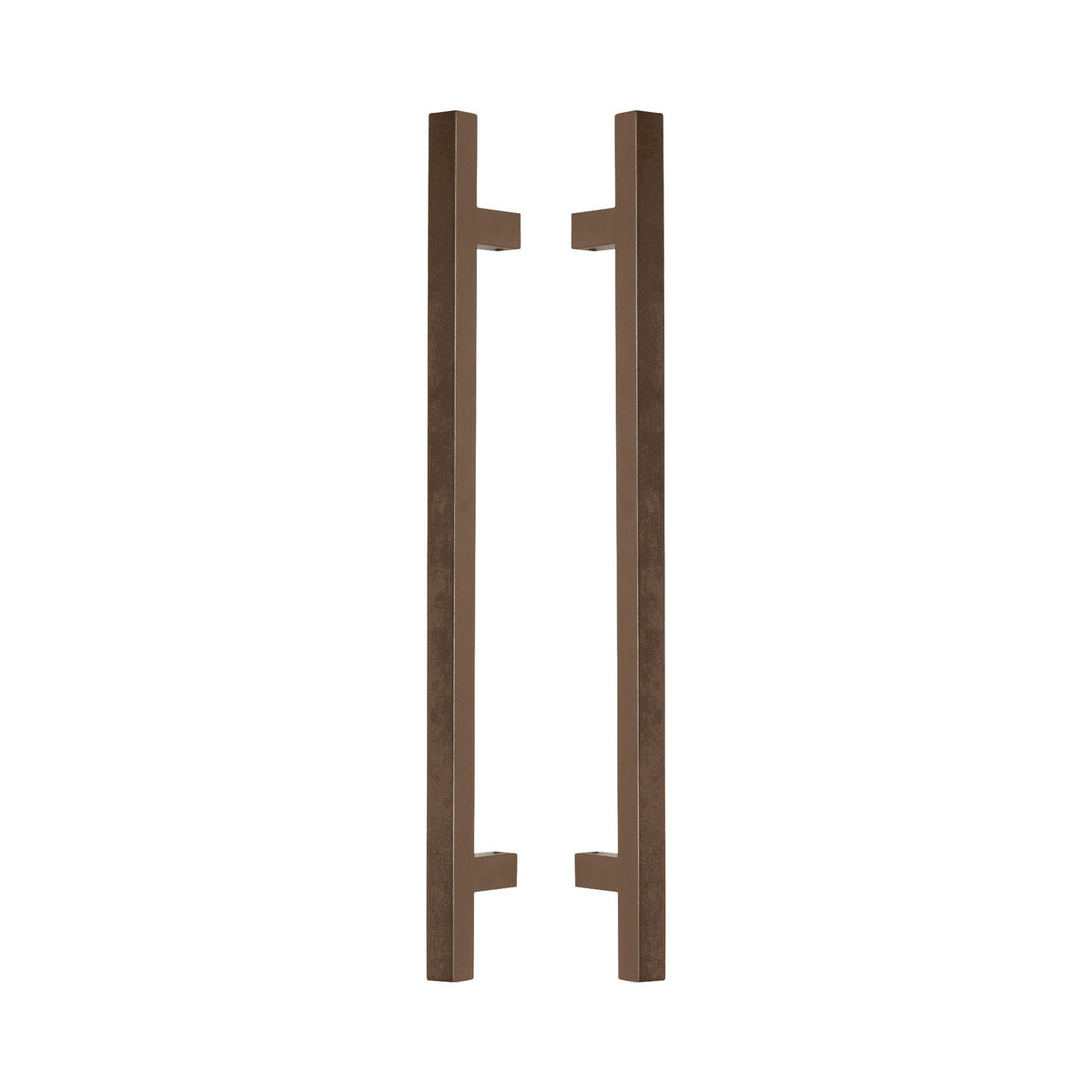

- Configuration: Pair (two handles, back-to-back, through-fixed) or single handle.
- Lead time: Made to order - allow 3 to 4 weeks
- Fixing centres: 450 mm on the 600 mm handle, legs 75 mm in from each end; 600 mm on the 800 mm handle, legs 100 mm in from each end.
- Projection: 50 mm from the door face to the back of the bar, 75 mm to the front
- Thread: M8. Drill 8.5 mm to 9 mm
- Screws: 45 mm for glass from 3 mm to 15 mm, 70 mm for doors 25 mm to 40 mm thick. 80 mm screws are available for doors to 50 mm and 90 mm for doors to 60 mm. All figures allow 10 mm of thread engagement
- Single fixing: A single is fixed with a matching round dome on the inside face, threaded into the handle thread
Installation
For a pair: easy DIY back-to-back fit. Mark and drill at the fixing points, then through-bolt the two handles together through the door. A printed guide is included with every order.
Not sure on sizing? Get in touch and we'll help you spec it.
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
