Lead time1 to 2 weeks

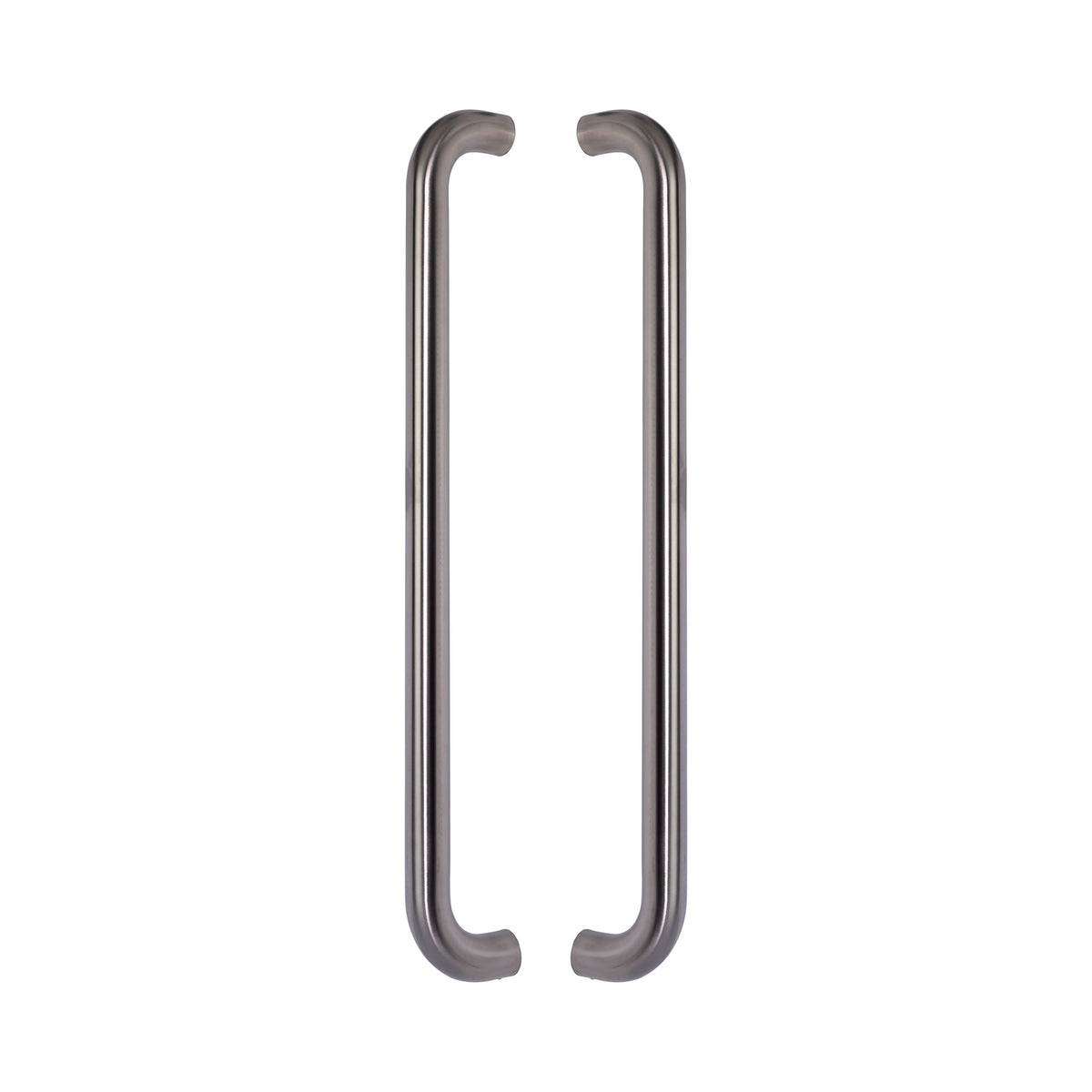

Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

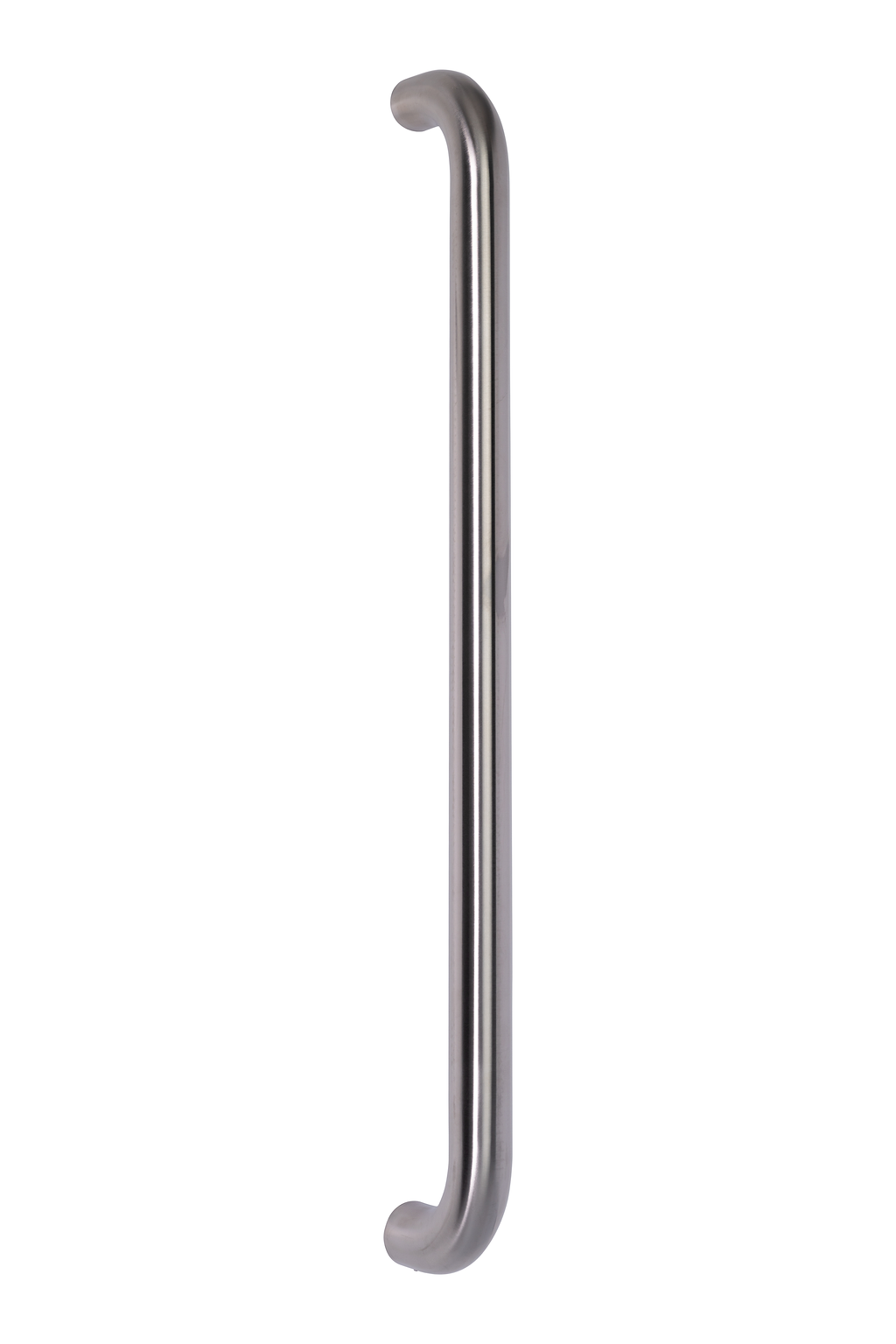

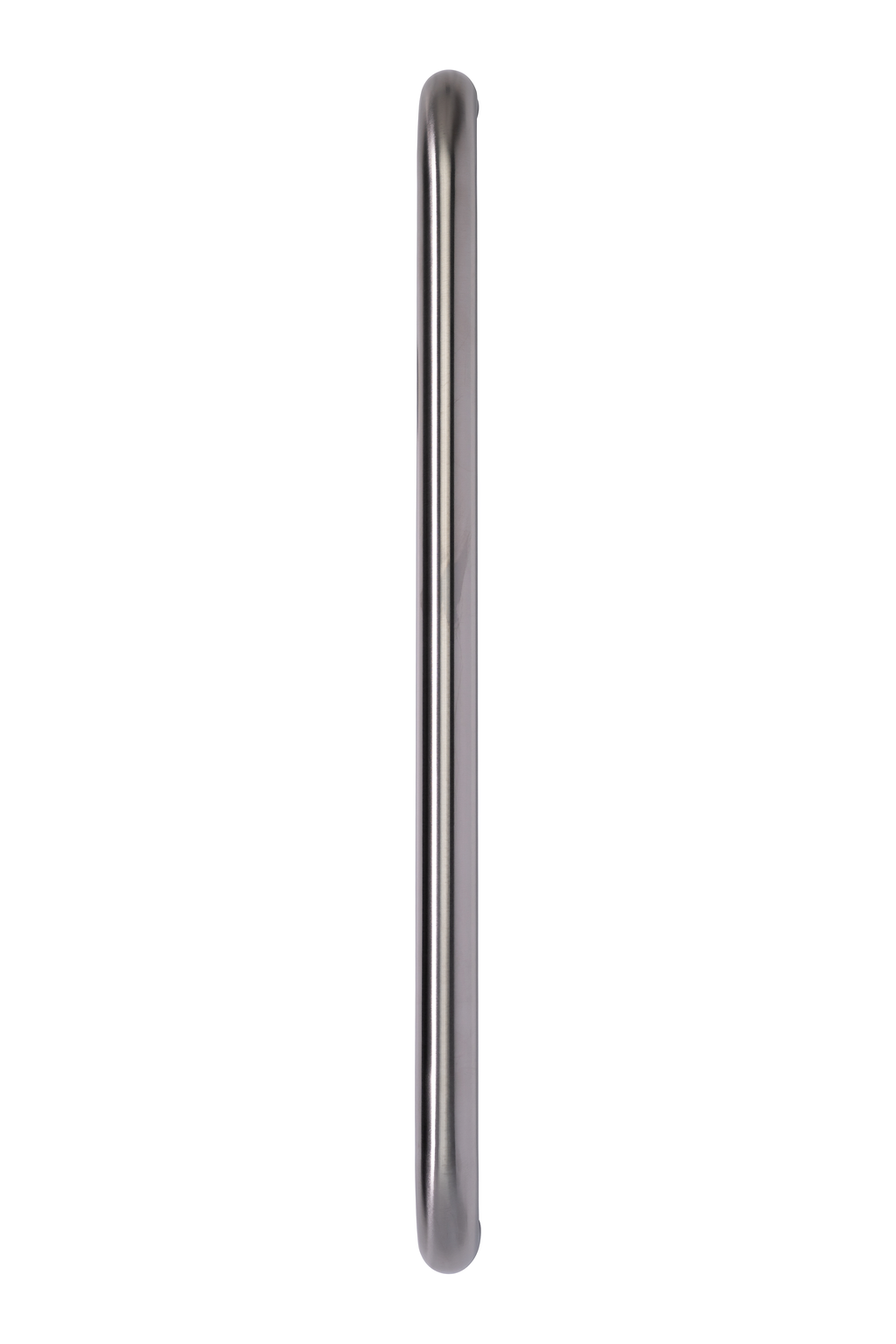

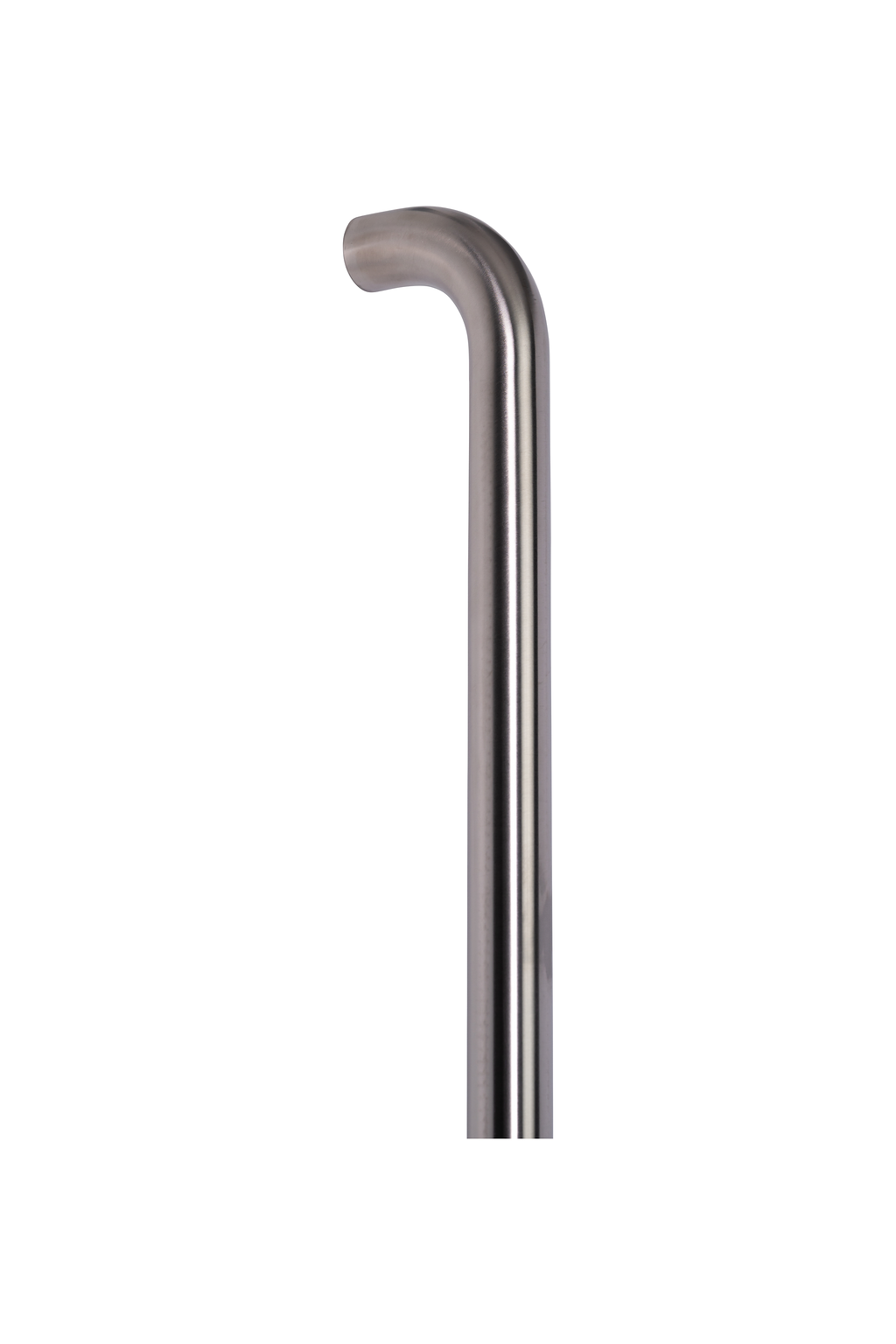

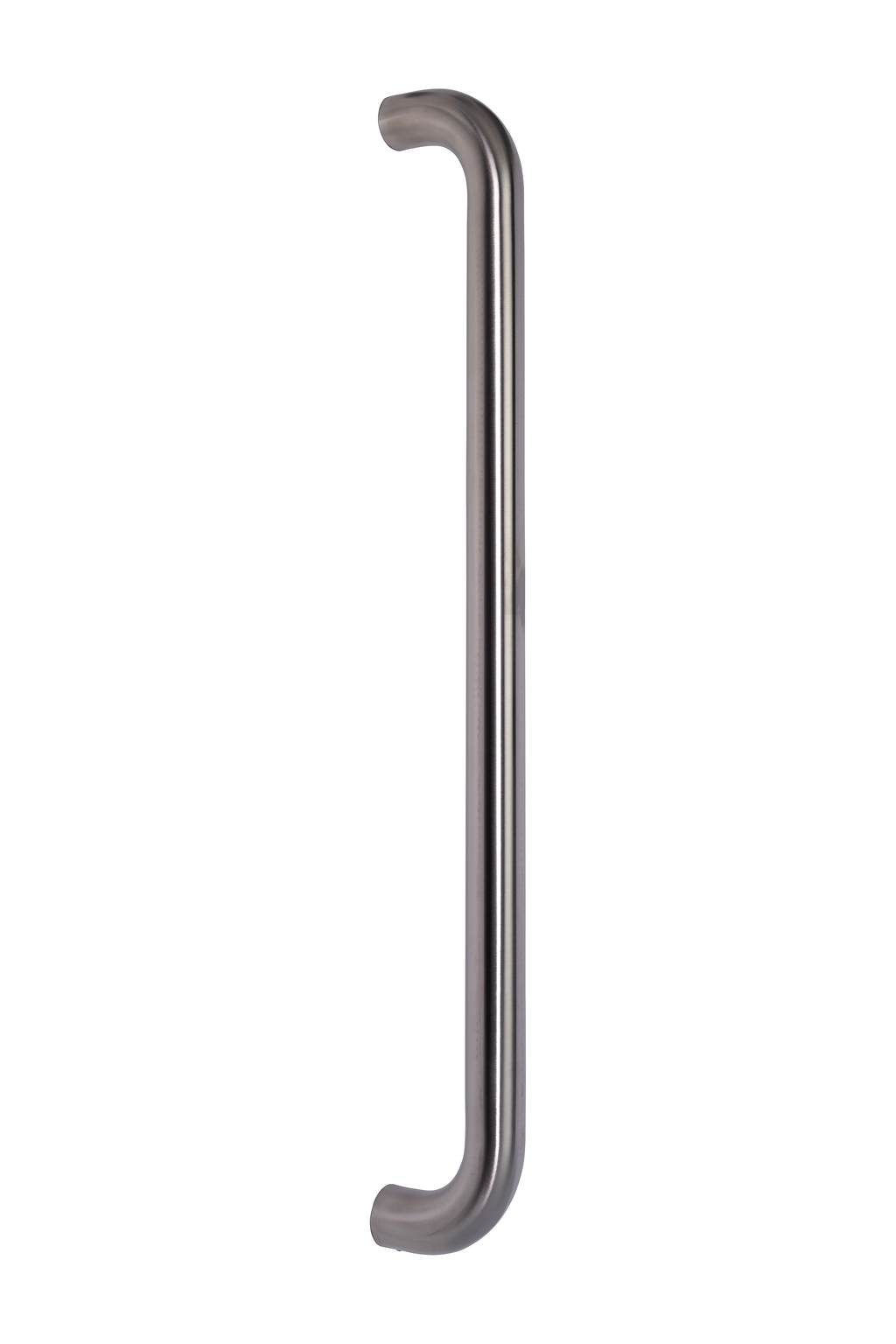

This D-shaped pull handle delivers a smooth, modern profile with the durability of 316 marine-grade stainless steel. Designed to perform in both residential and commercial environments, it offers excellent corrosion resistance and strength, ideal for coastal locations and high-traffic entrances.

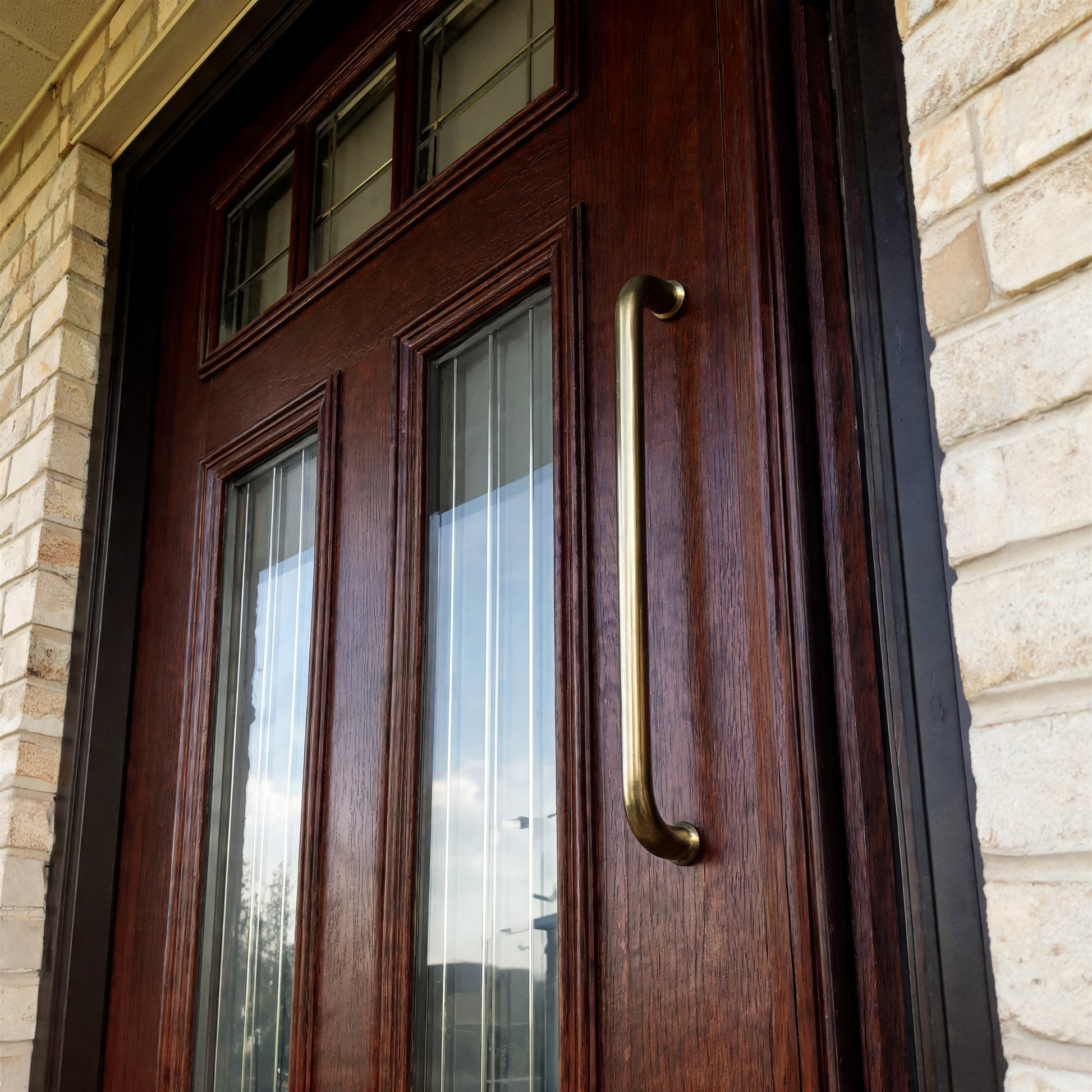

The 32 mm round grip creates a comfortable, substantial feel in the hand, while the D-shaped form provides clean symmetry and a classic architectural look. Its simple, functional design makes it a versatile choice for timber, aluminium, and glass doors.

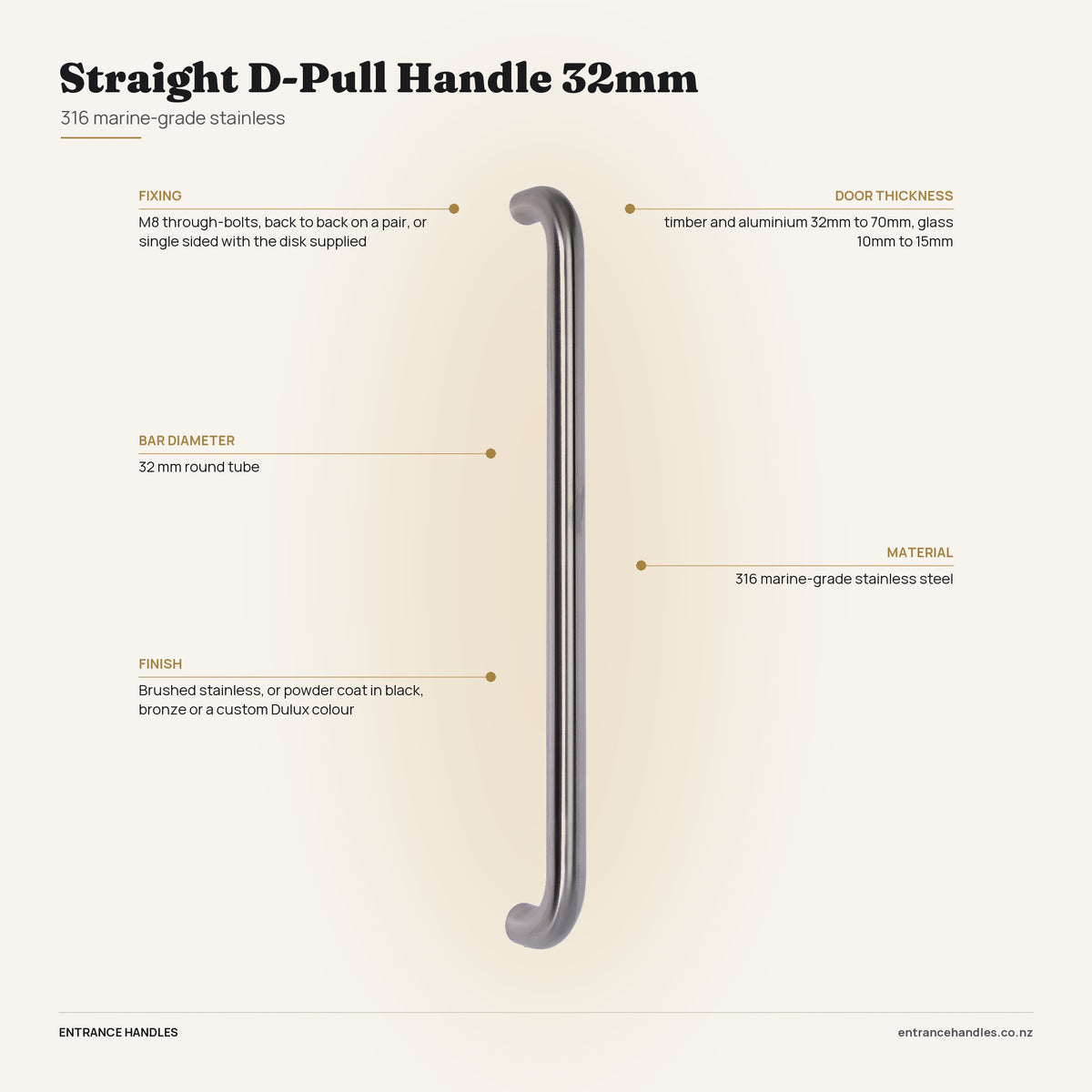

Specifications
- Material: 316 marine-grade stainless steel
- Accessibility: Compliant to AS 1428.1-2009 Design for Access and Mobility
- Diameter: 32 mm round tube
- Shape: Classic D-shaped pull design

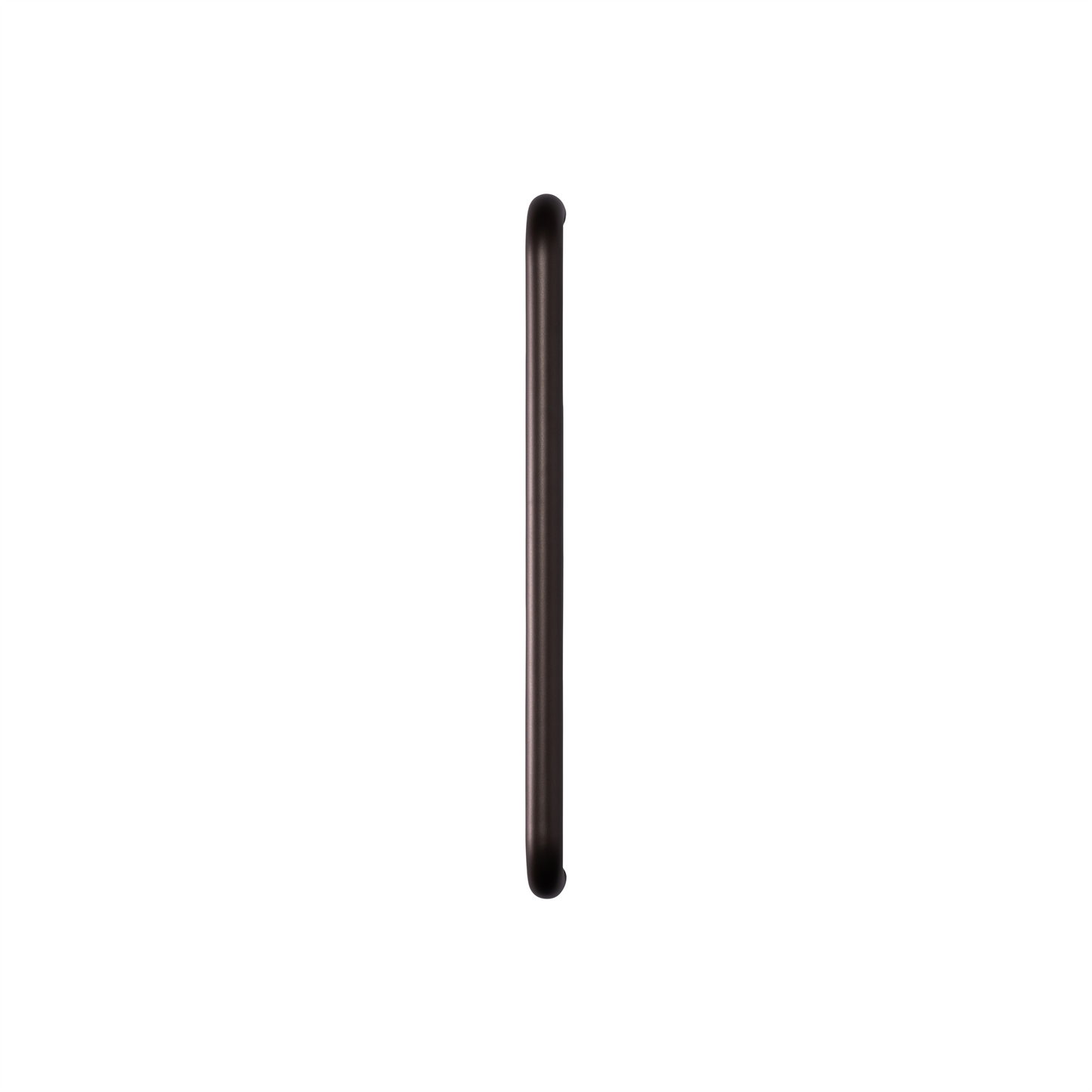

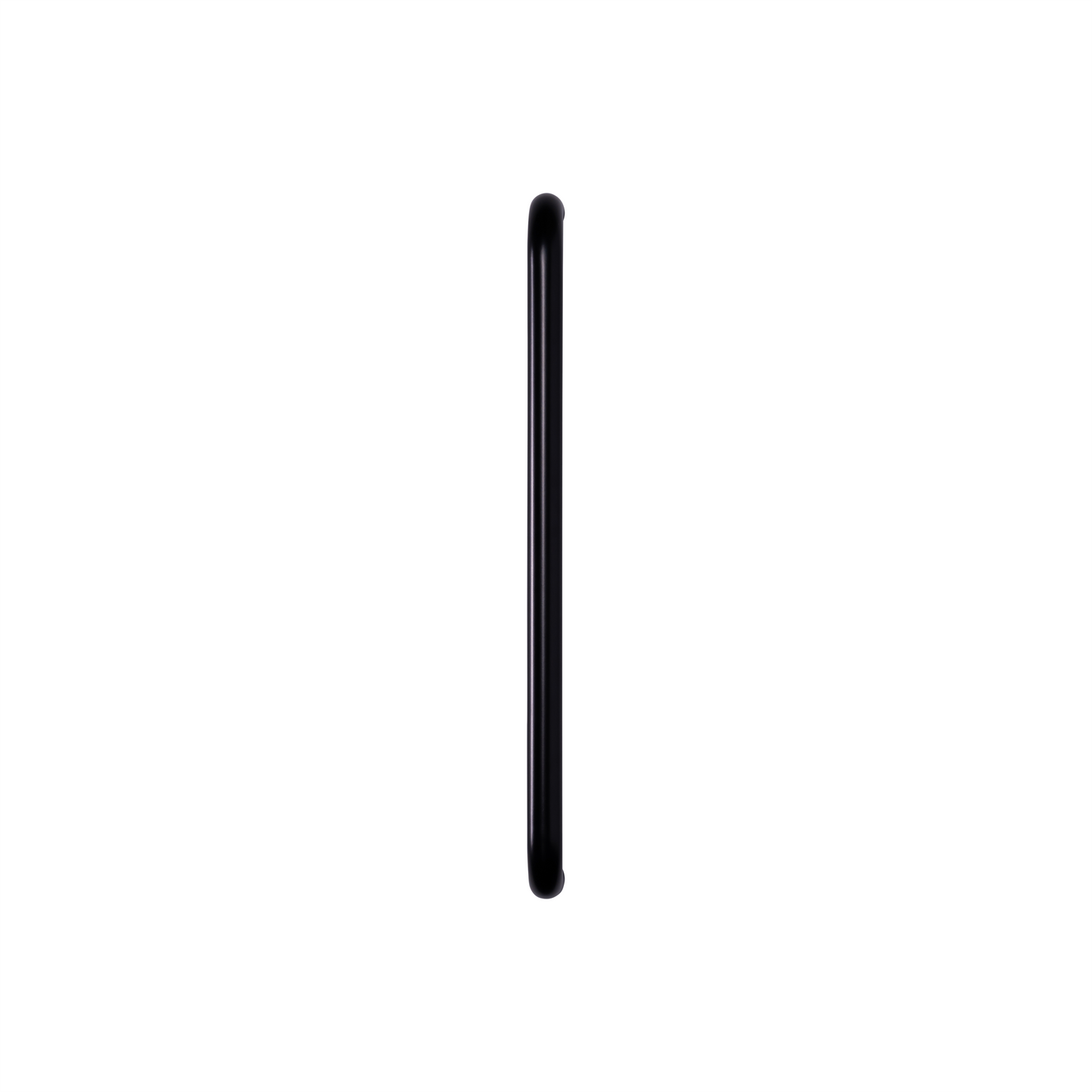

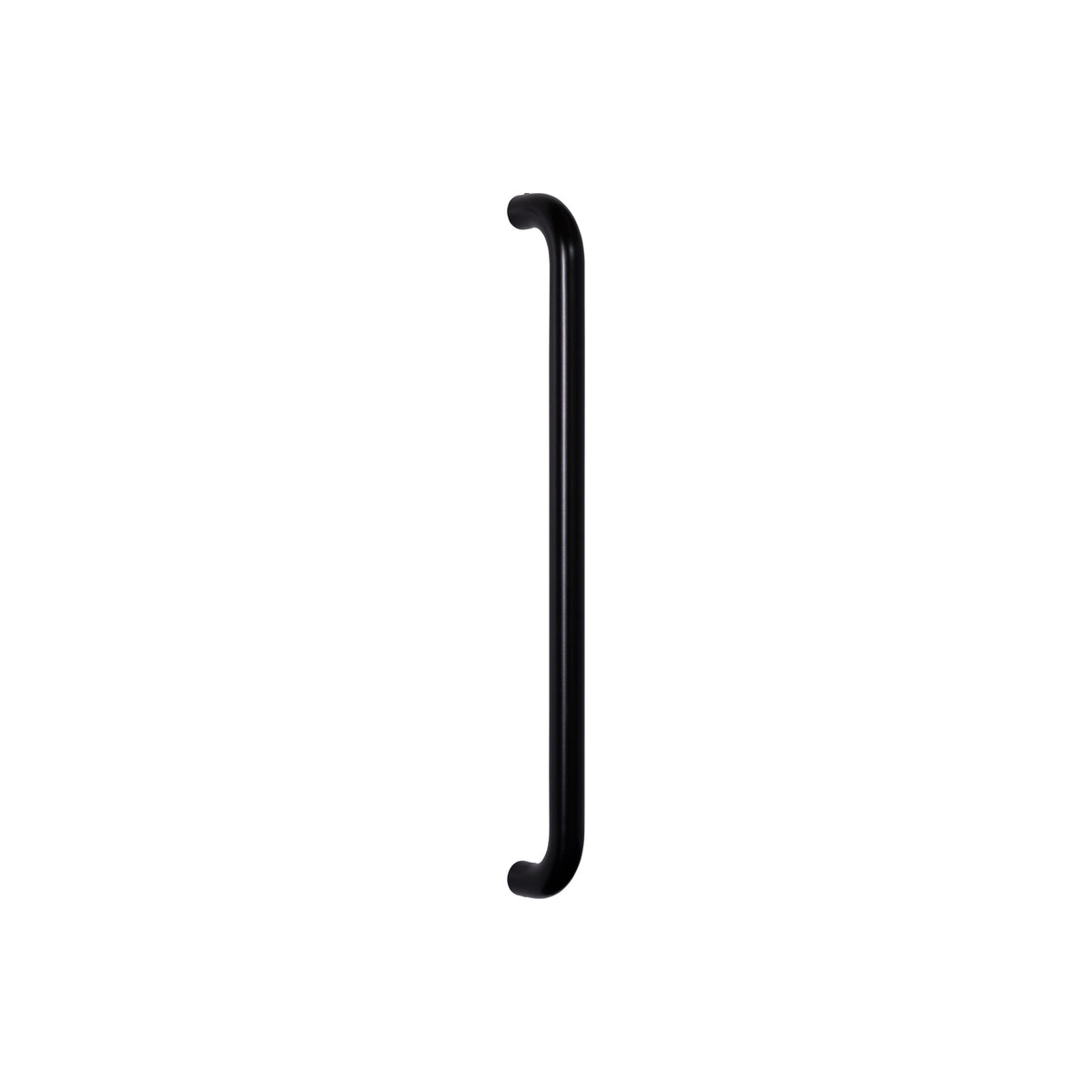

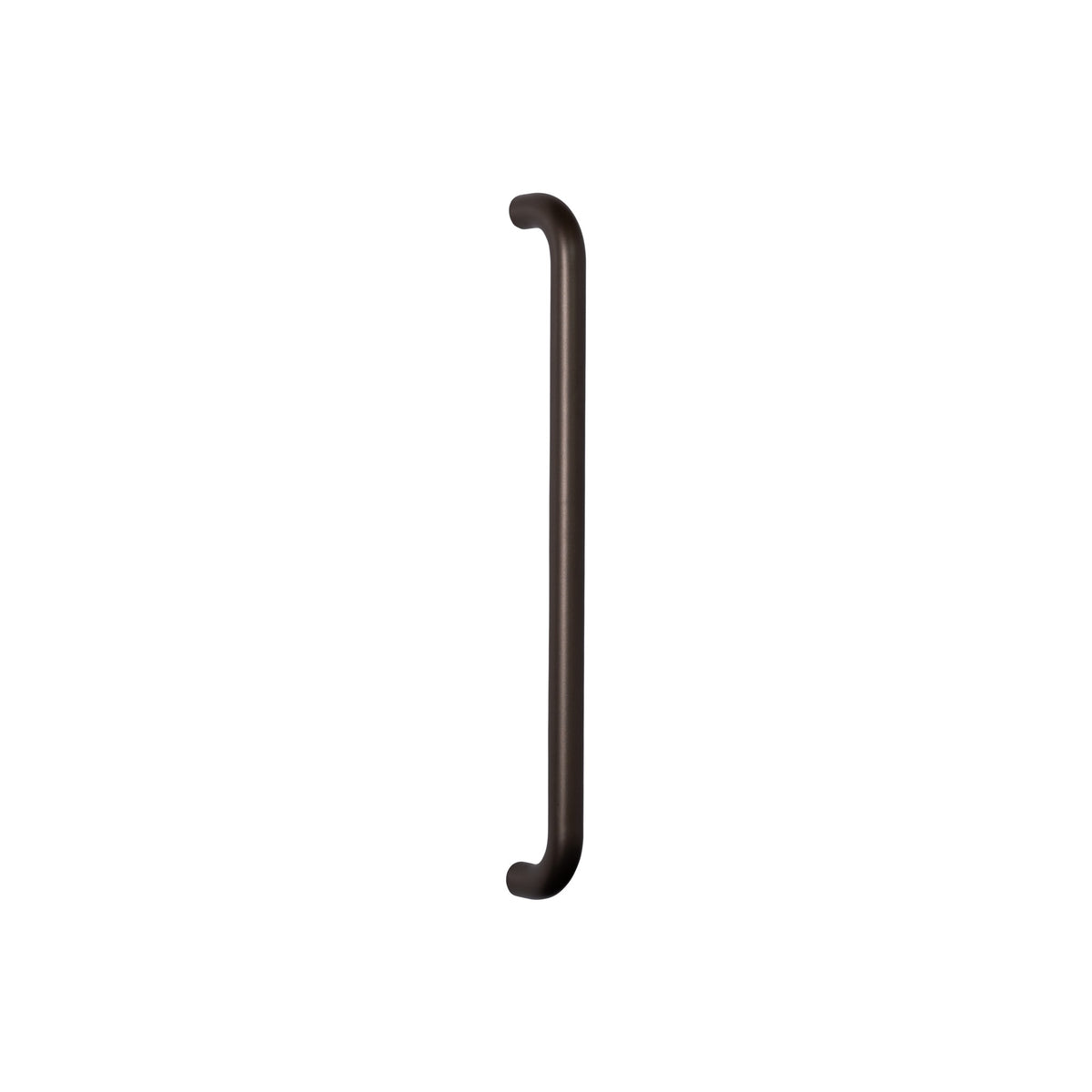

- Finish options: Brushed stainless, or powder coat in black, bronze or a custom Dulux colour
- Suitable for: Timber, aluminium, and glass doors
- Door thickness: timber and aluminium 32mm to 70mm, glass 10mm to 15mm
- Fixing: M8 through-bolts, back to back on a pair, or single sided with the disk supplied
- Applications: Residential and commercial entryways

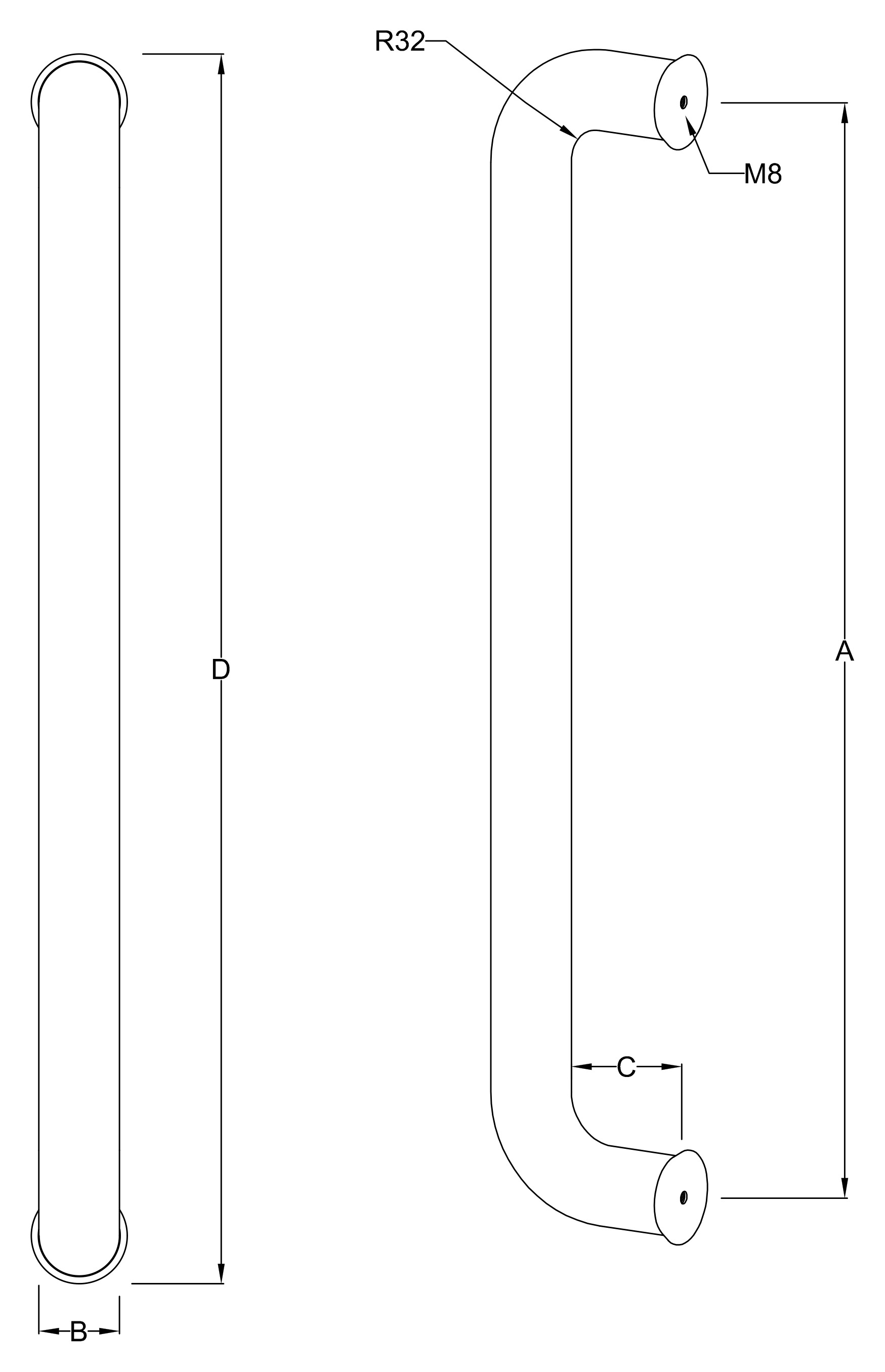

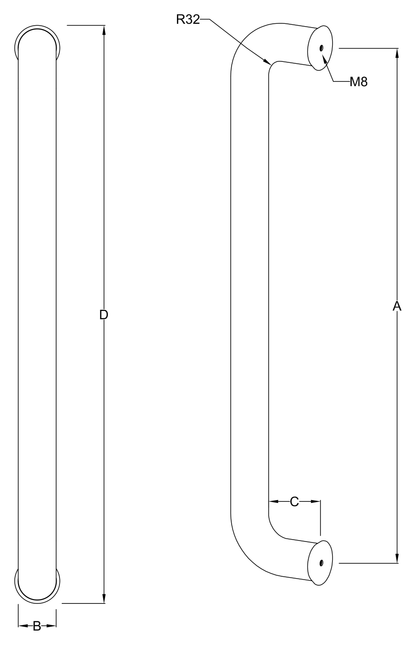

Dimensions
| Fixing centres | Overall length |
|---|---|
| 300mm | 332mm |
| 450mm | 482mm |
| 600mm | 632mm |
| 800mm | 832mm |
Profile: 32mm round tube. Bend radius: R32. Clearance from door: 52mm. Projection from door face: 84mm.
Installation
Installation is straightforward and can be completed in minutes. Each handle comes with the correct fixings for standard timber, aluminium or glass doors.
- Measure the fixing centres on the handle and transfer those measurements to the door in the position you want
- Pilot-drill at 3 to 4 mm, then open the holes to 8.5 to 9 mm for the M8 bolts. On a glass door the holes cannot be drilled on site: the panel has to be supplied cut to size and drilled by your glass manufacturer
- Pass the bolts through from the back into the threaded ferrules in the handle legs. For a pair: the two handles join back-to-back through the door. A single handle is fixed with the disk supplied, which sits on the other side of the door
- Once the legs are fixed, the handle slides onto the ferrules on the inside of the door and locks tight with grubscrews for a rattle-free finish
A printed guide is included with every order.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Pull handles as selected (one for a single or two for a pair)
- Through-fix mounting bolts
- Installation template
- Care instructions
