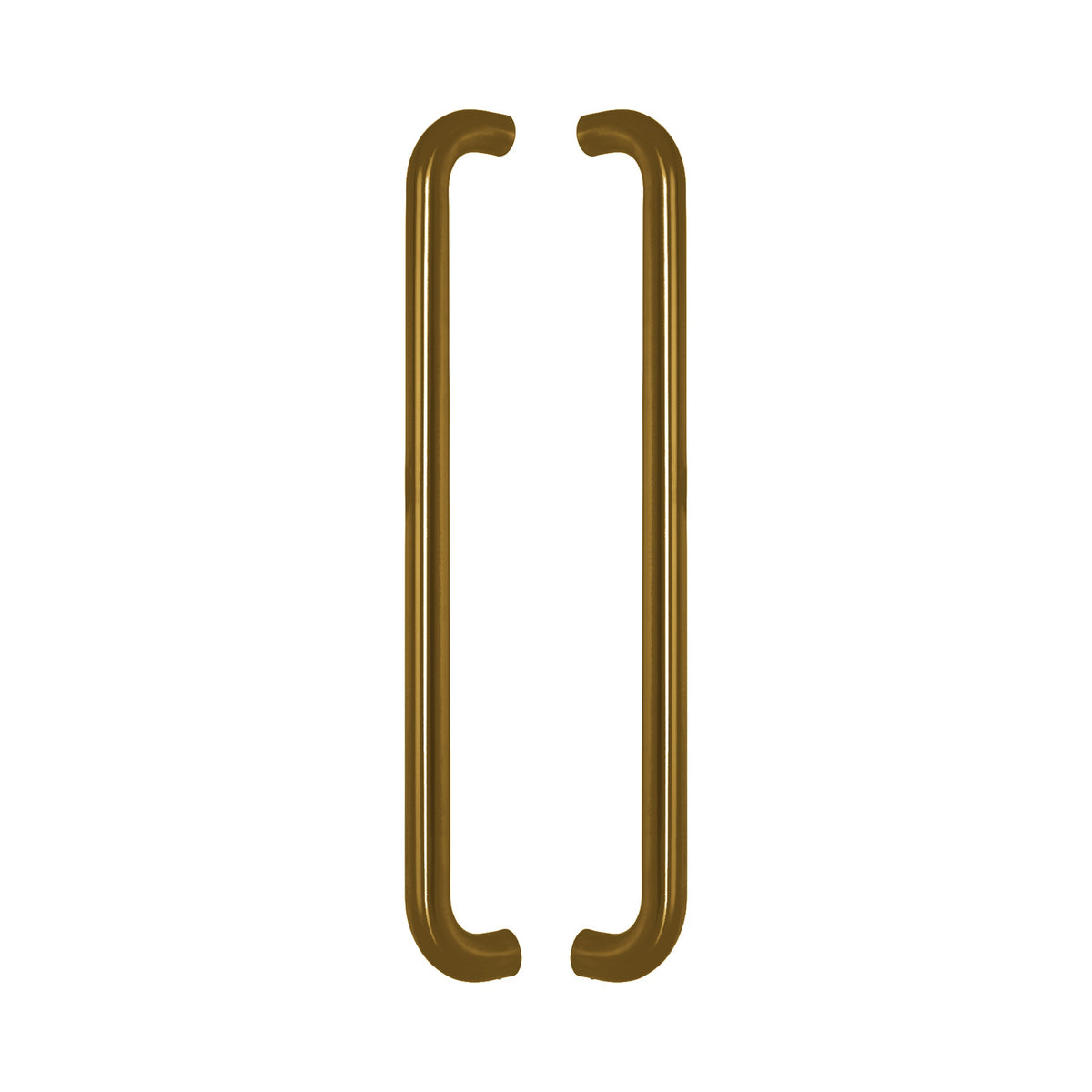

Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

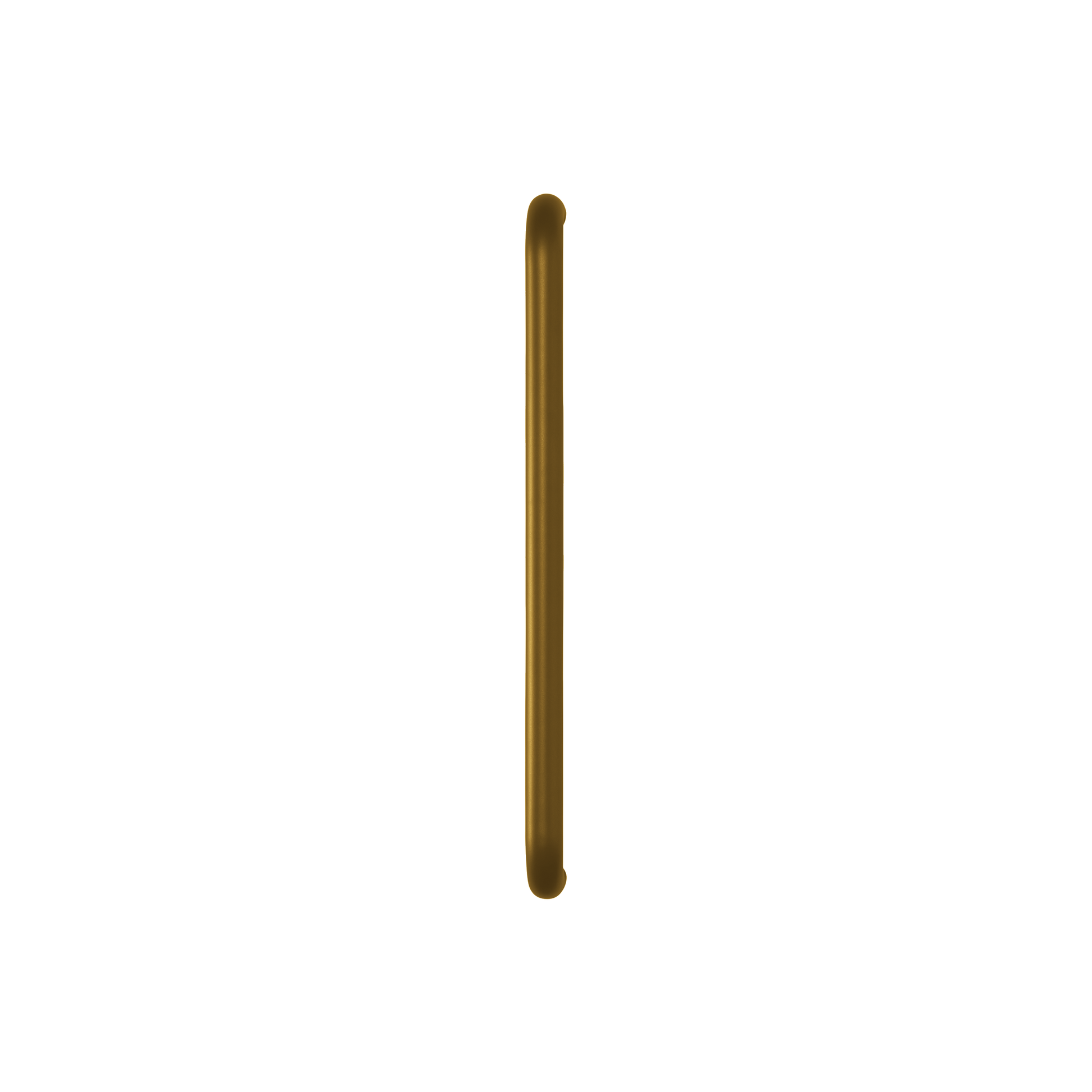

The Straight D-Pull Handle in brass, made to order in New Zealand. Choose your finish, polished or brushed, then your coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time. Handles are never shipped bare.

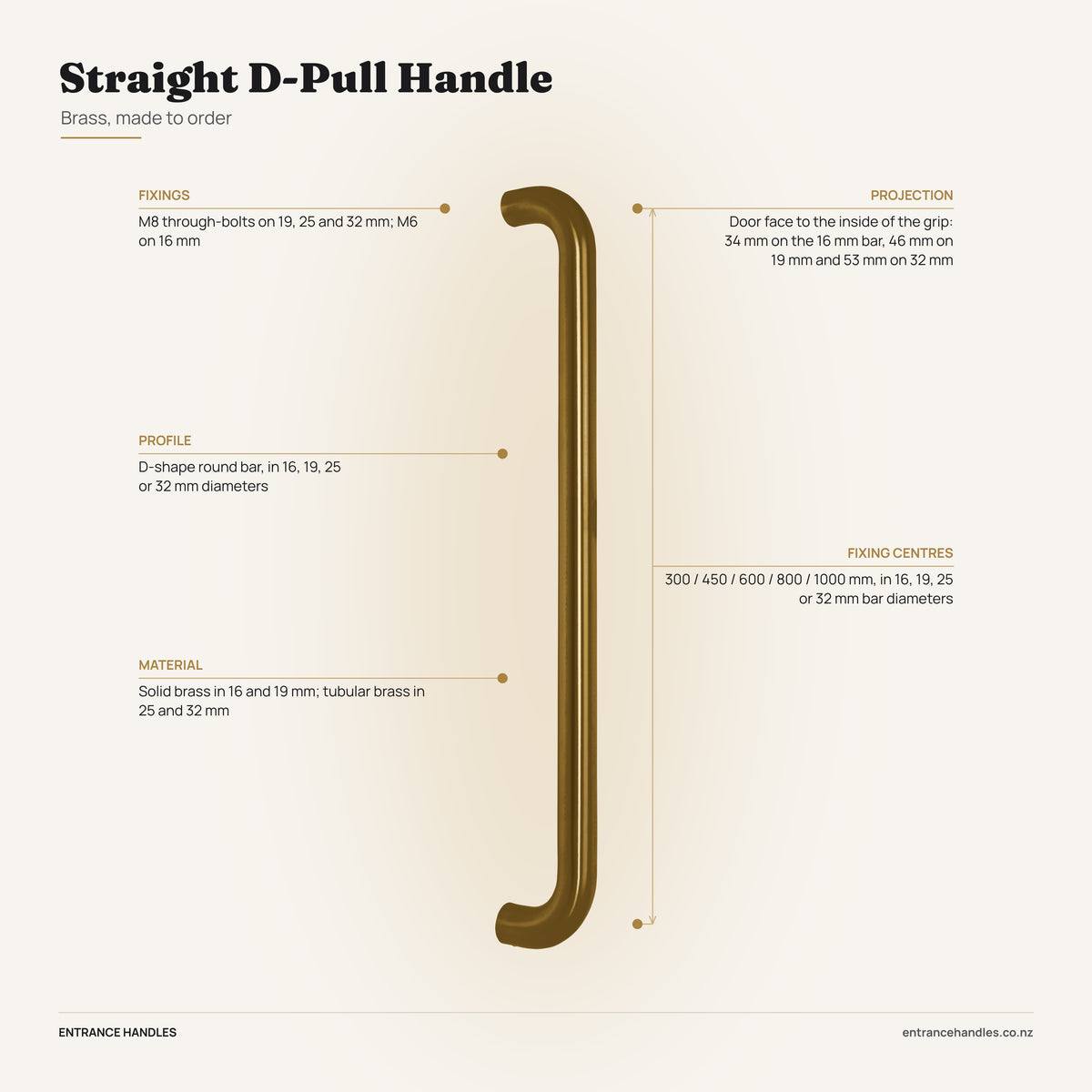

Specifications
- Material: Solid brass in 16 and 19 mm; tubular brass in 25 and 32 mm - real brass, never stainless
- Finish: Polished or brushed, then a coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish. Never shipped bare
- Profile: D-shape round bar - 16 / 19 / 25 / 32 mm diameters
- Sizes (fixing centres): 300 / 450 / 600 / 800 / 1000 mm, in 16, 19, 25 or 32 mm bar diameters. Overall length is the fixing centres plus the bar diameter, so 300 mm centres on a 16 mm bar measures 316 mm overall
- Configuration: Pair (two handles, back-to-back, through-fixed) or single handle
- Lead time: Made to order - allow 3 to 4 weeks
- Fixings: M8 through-bolts on 19, 25 and 32 mm; M6 on 16 mm. Drill 6.5 to 7 mm for the M6 and 8.5 to 9 mm for the M8. The fixing centres are the size you choose; the bar diameter changes the overall length, not the centres.
- Projection: Door face to the inside of the grip: 34 mm on the 16 mm bar, 46 mm on 19 mm and 53 mm on 32 mm
- Construction: The thread is cut into the bar itself, not into a ferrule
- Screws: 45 mm for glass from 3 mm to 15 mm, 70 mm for doors 25 mm to 40 mm thick. 80 mm screws are available for doors to 50 mm and 90 mm for doors to 60 mm. All figures allow 10 mm of thread engagement
- Single fixing: A single is fixed with a matching round dome on the inside face, threaded into the handle thread
Installation
For a pair: easy DIY back-to-back fit. Mark and drill at the fixing points, then through-bolt the two handles together through the door. A printed guide is included with every order.
Not sure on sizing? Get in touch and we'll help you spec it.
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
