Lead time1 to 2 weeks

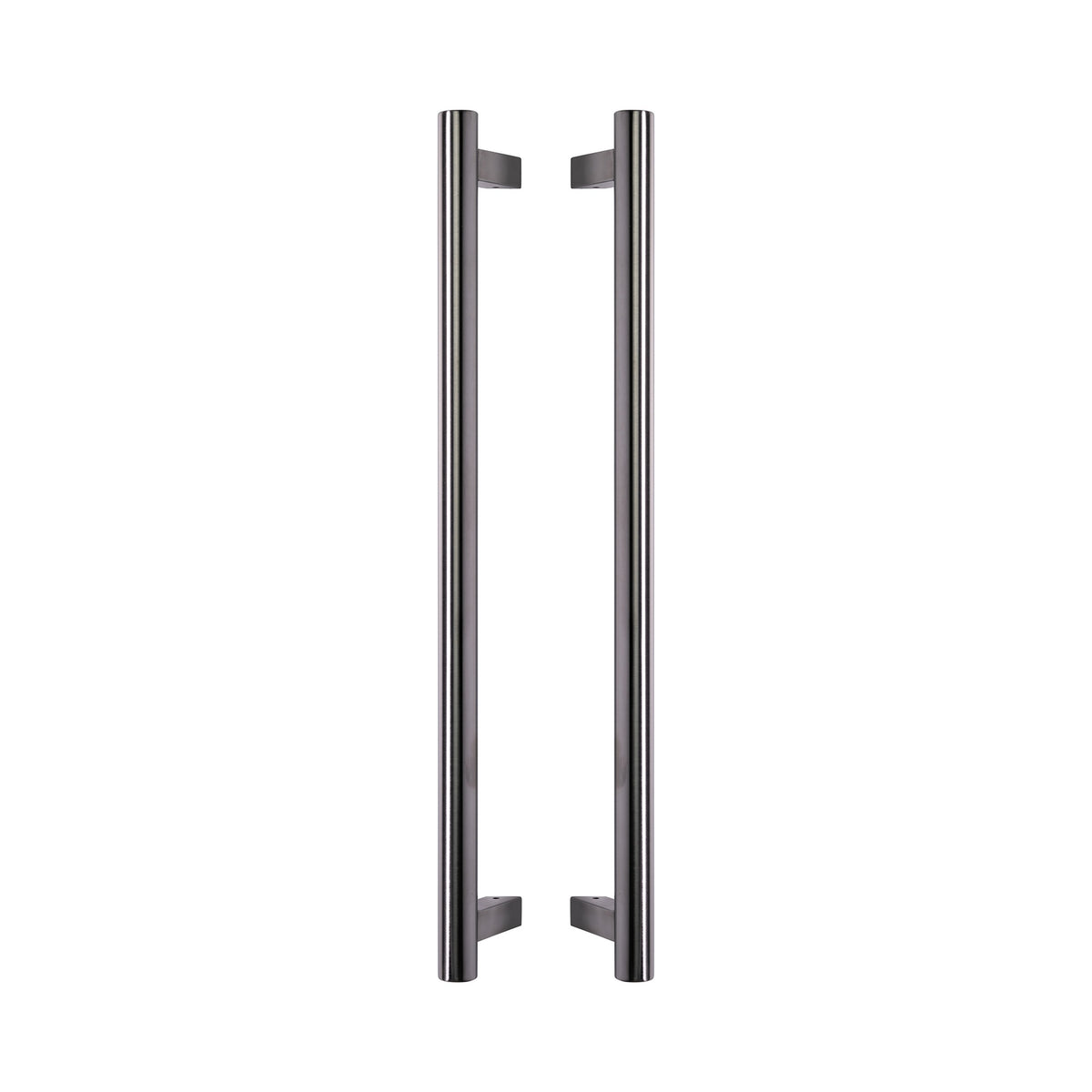

Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.

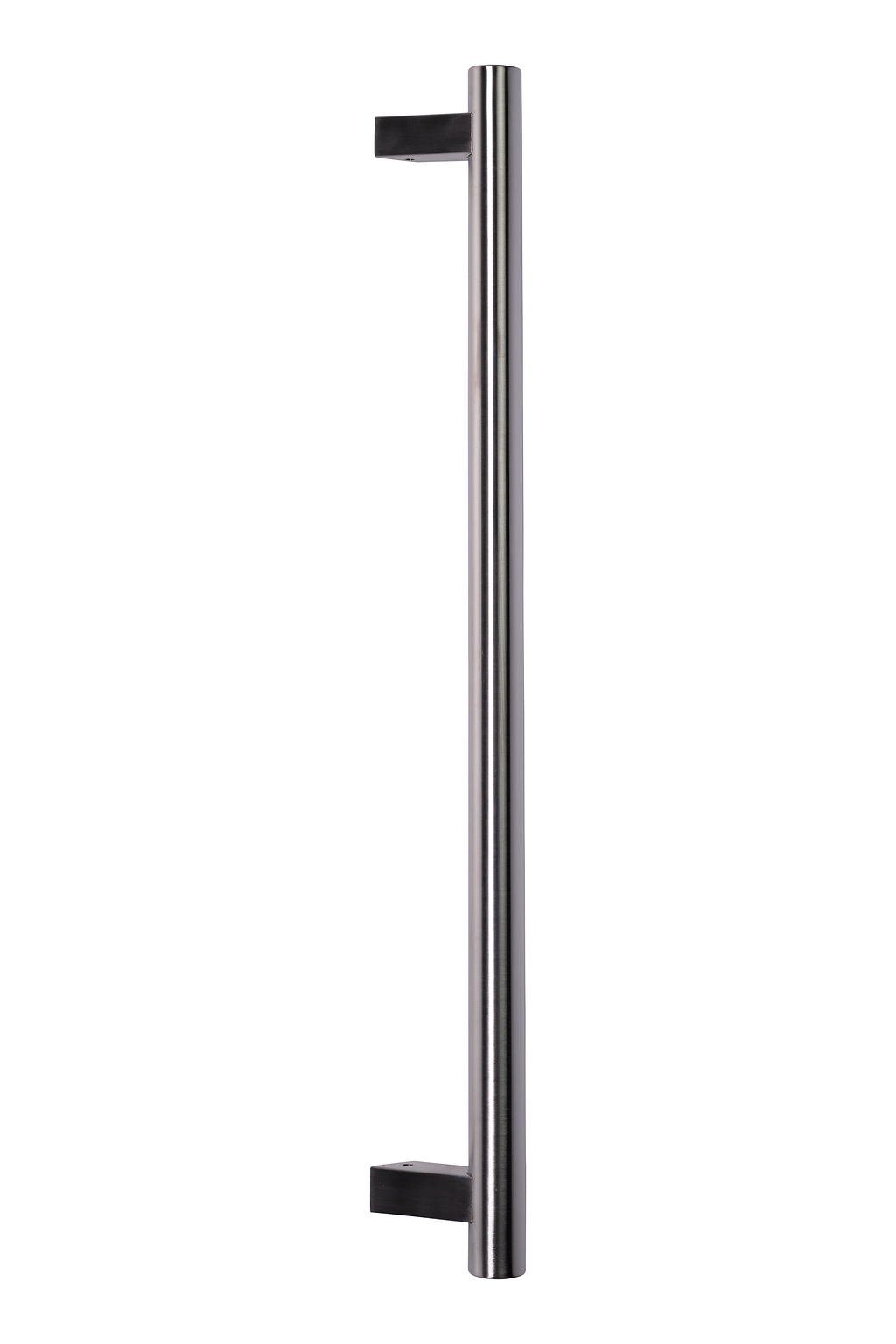

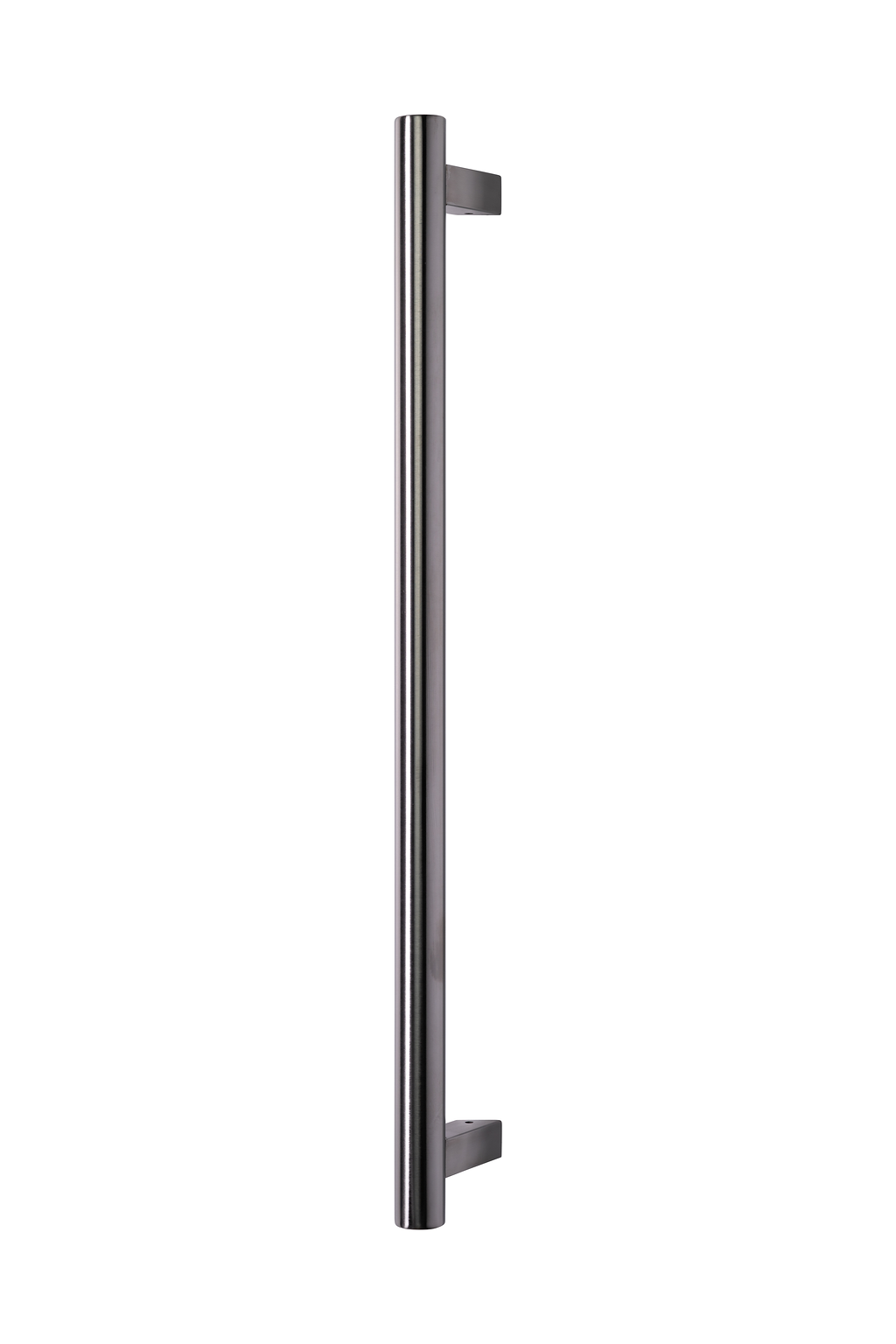

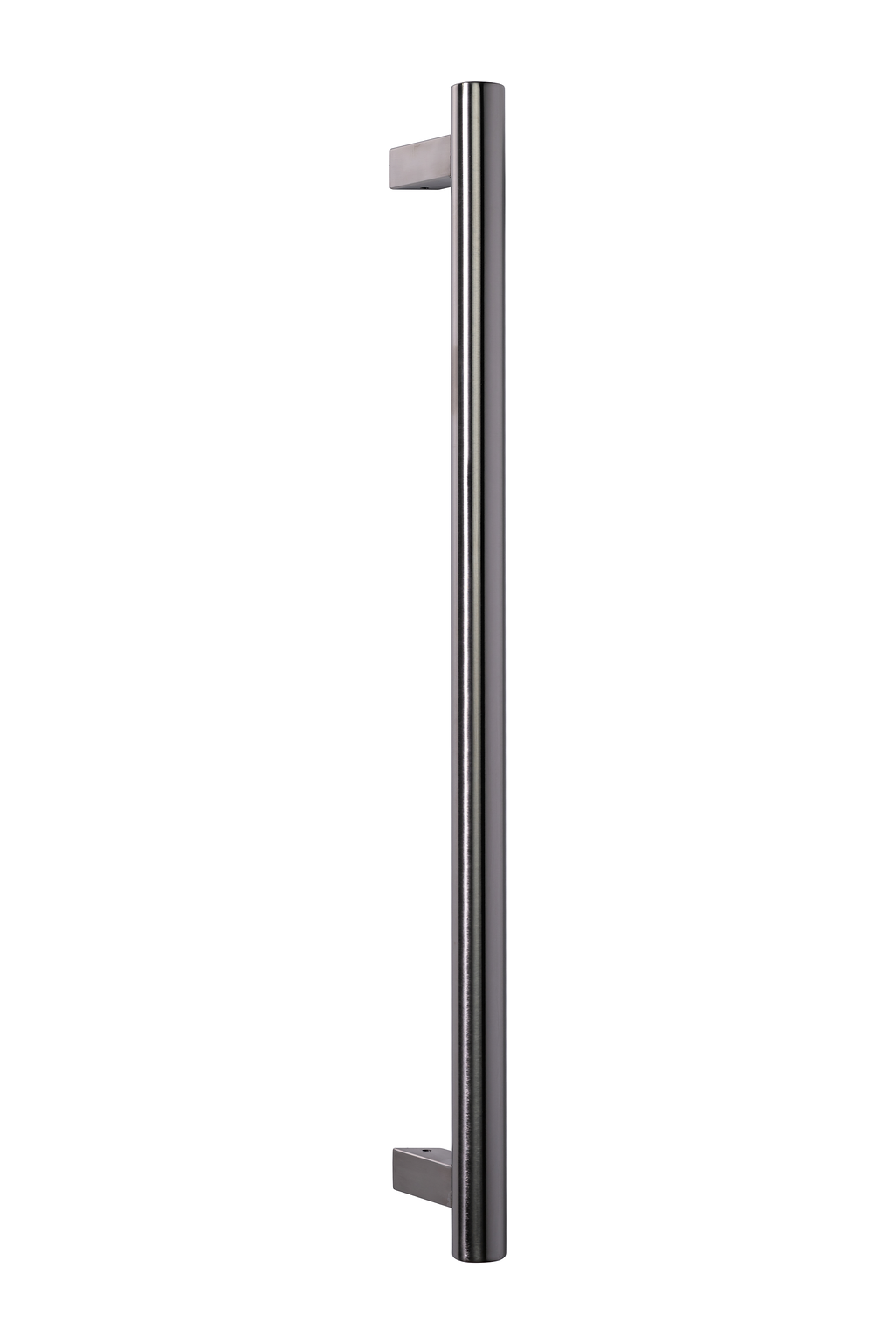

This Round Offset-Leg Pull Handle combines modern geometry with precise engineering. Made from 316 marine-grade stainless steel, it delivers long-term durability and corrosion resistance suitable for both residential and commercial entrances, including coastal environments.

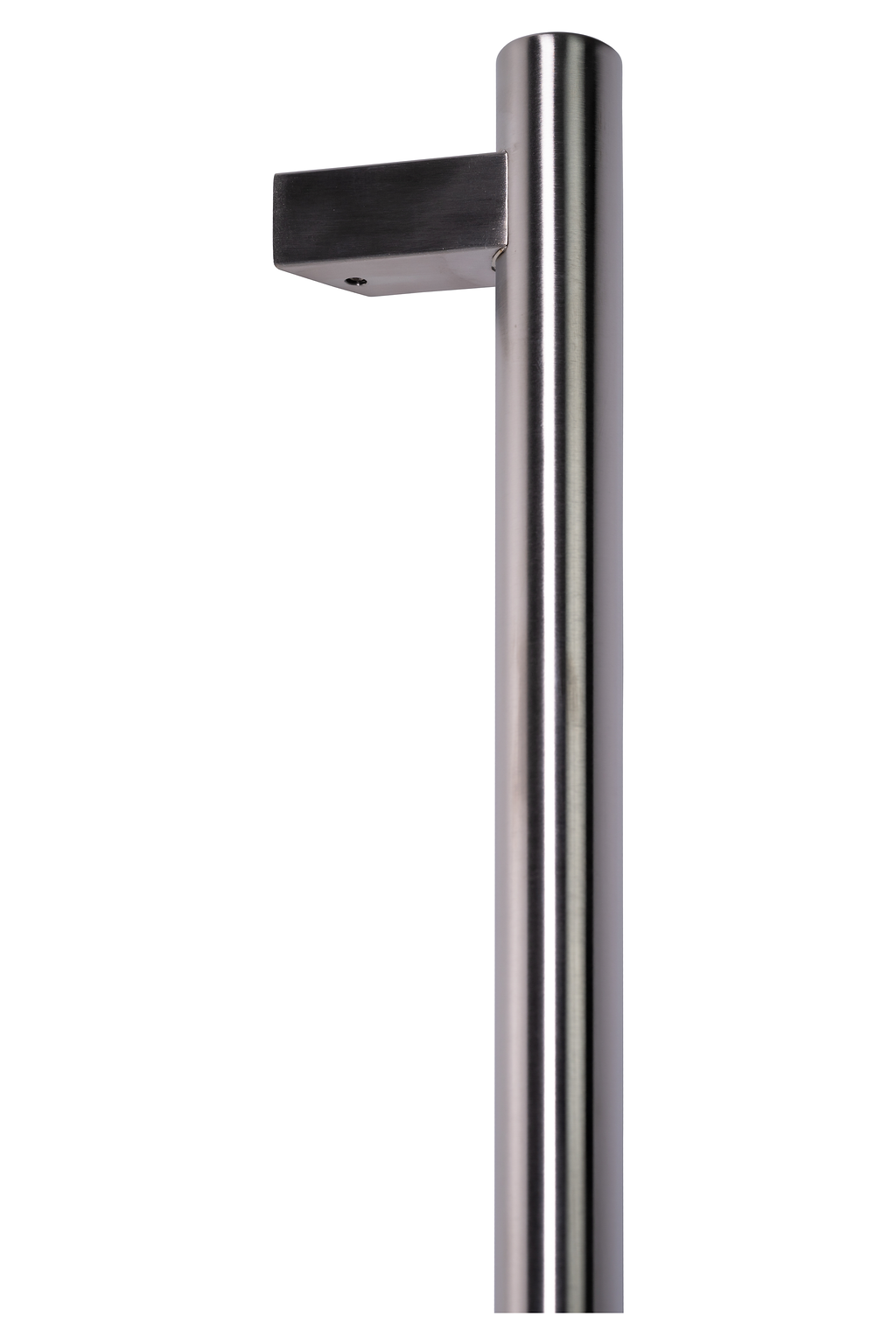

The handle achieves its offset with a tapered leg that sits flat on the door and runs out at an angle, carrying the 32mm bar 82mm along the face of the door and 35mm clear of it without the curves or bends of a traditional offset tube. The result is a crisp, minimalist profile with a comfortable, straight-line grip that complements contemporary door designs.

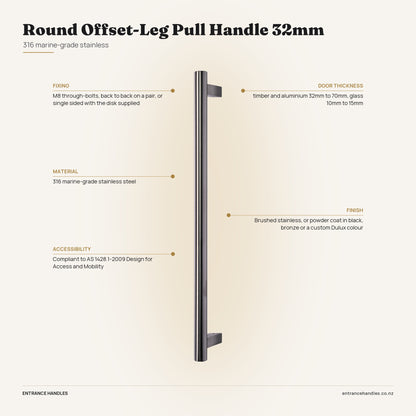

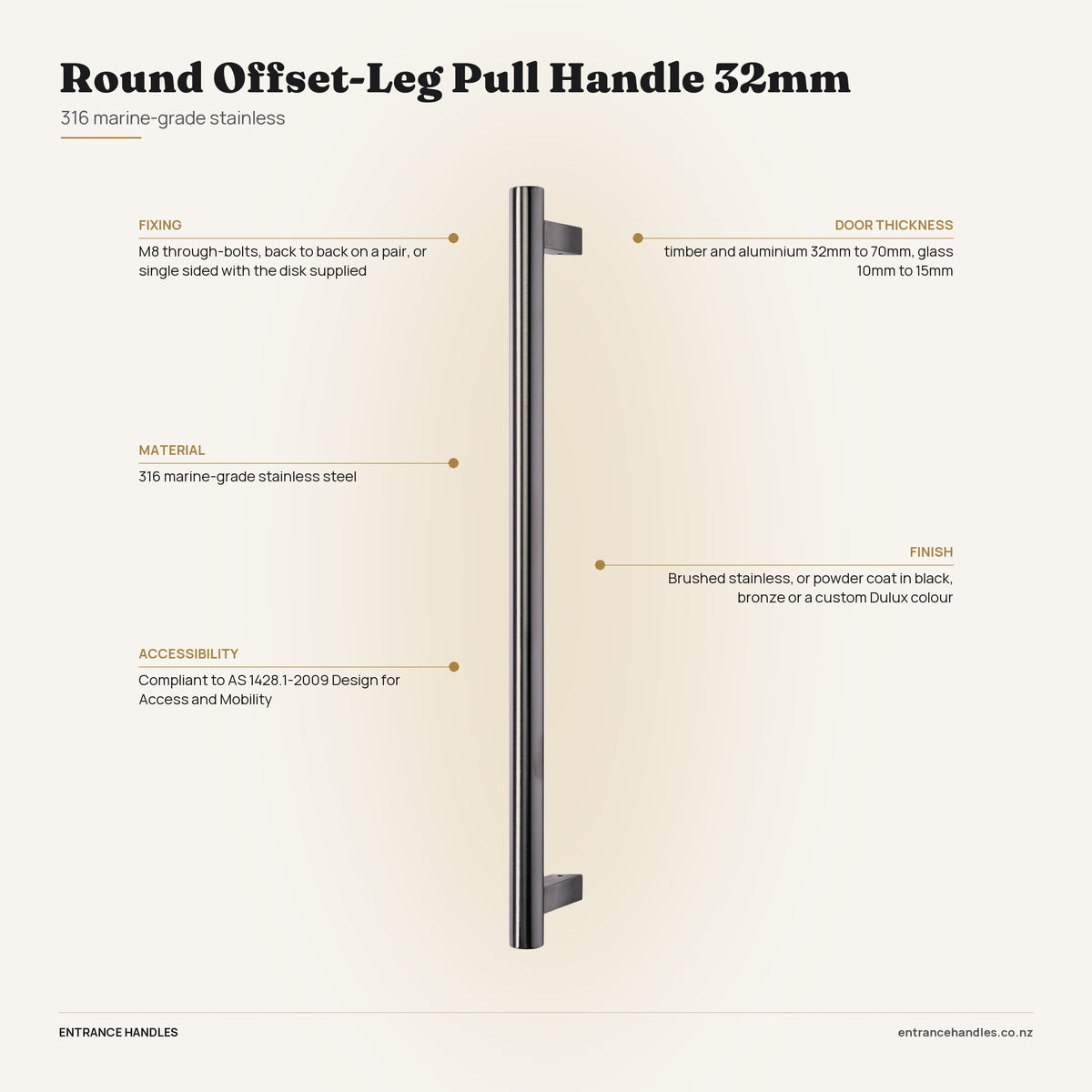

Specifications
- Material: 316 marine-grade stainless steel
- Accessibility: Compliant to AS 1428.1-2009 Design for Access and Mobility
- Design: Straight offset created by angled mounting faces, with no tubular bend
- Appearance: Clean, minimal offset with no tubular bends
- Suitable for: Timber, aluminium, and glass doors
- Door thickness: timber and aluminium 32mm to 70mm, glass 10mm to 15mm
- Fixing: M8 through-bolts, back to back on a pair, or single sided with the disk supplied

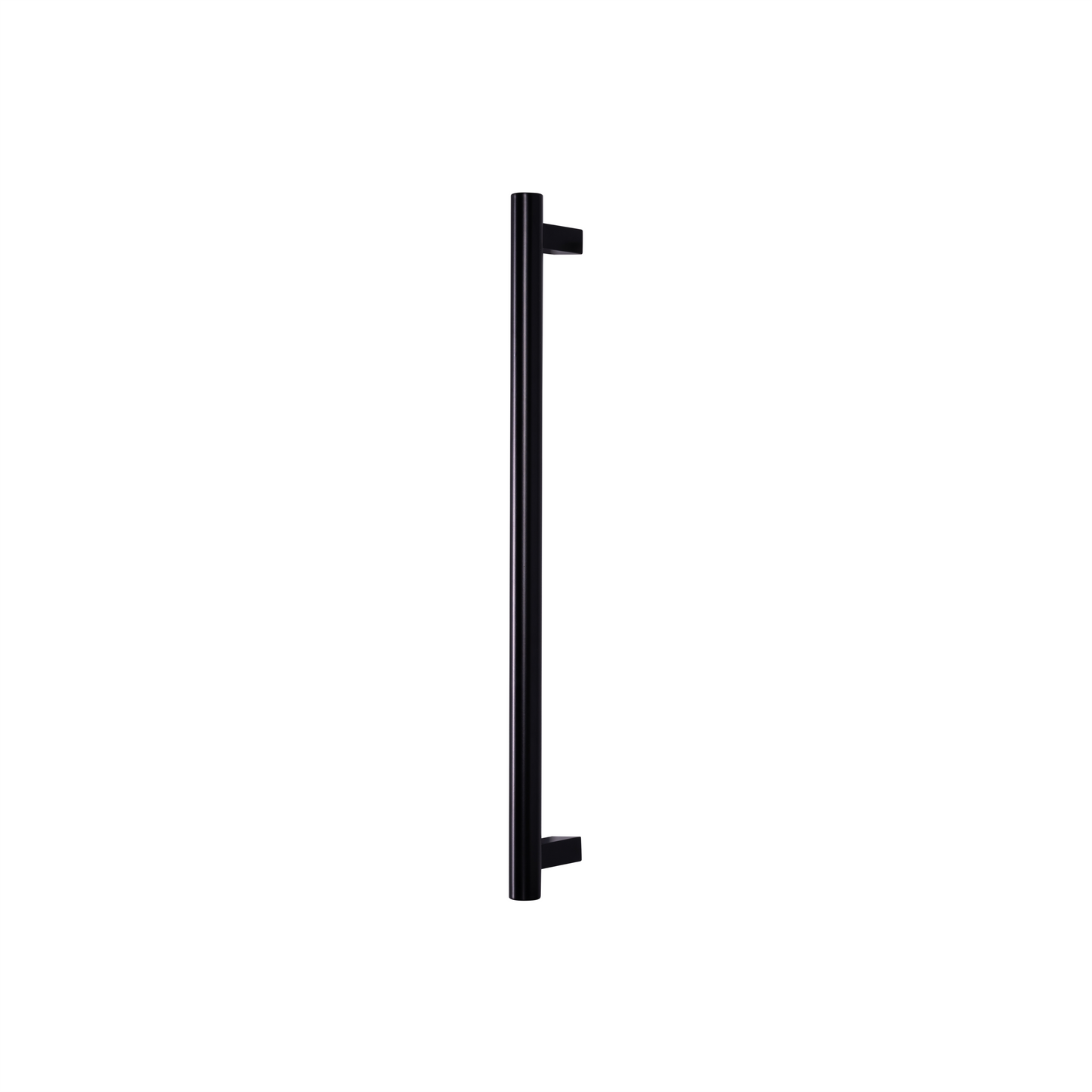

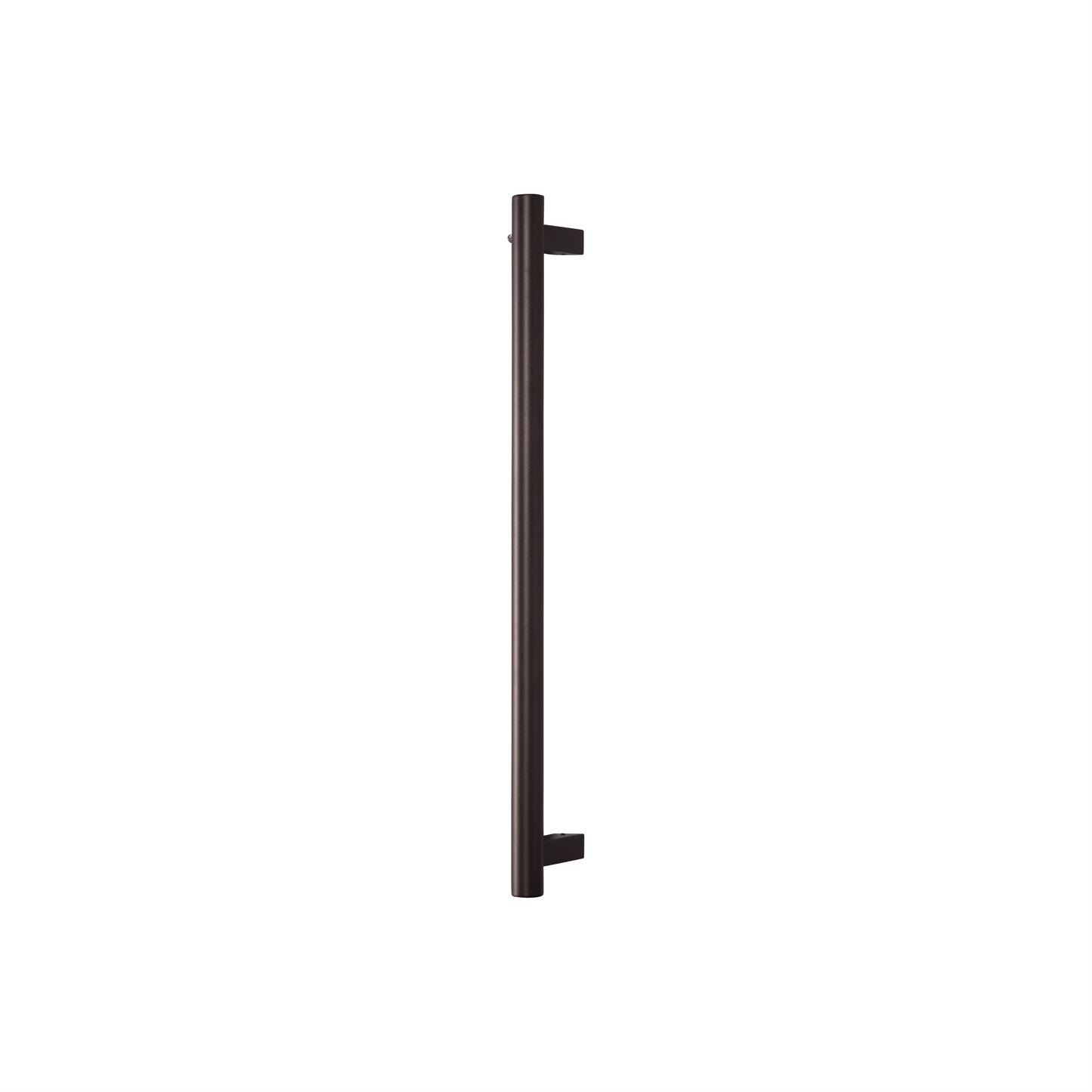

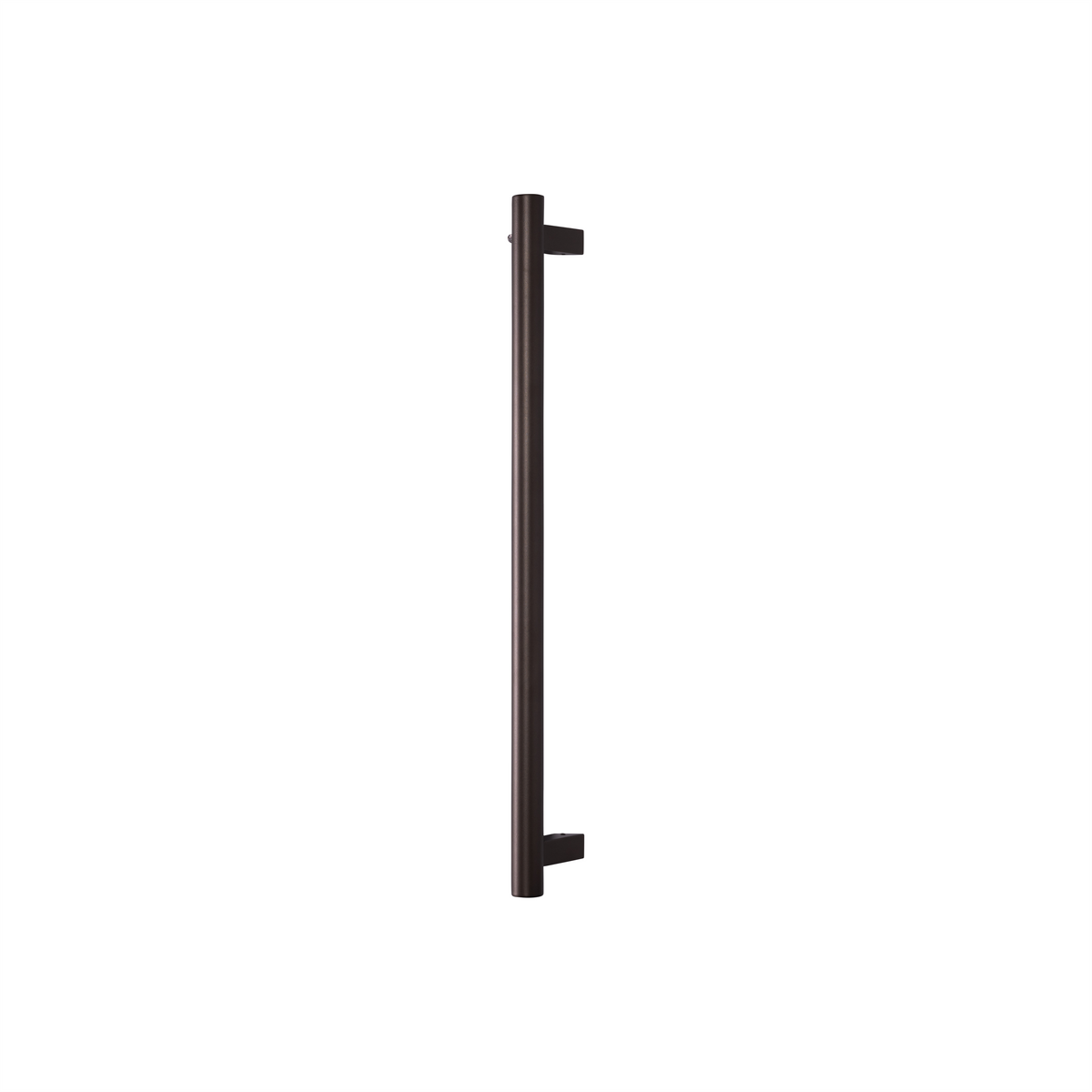

- Finish options: Brushed stainless, or powder coat in black, bronze or a custom Dulux colour
- Applications: Residential and commercial entryways

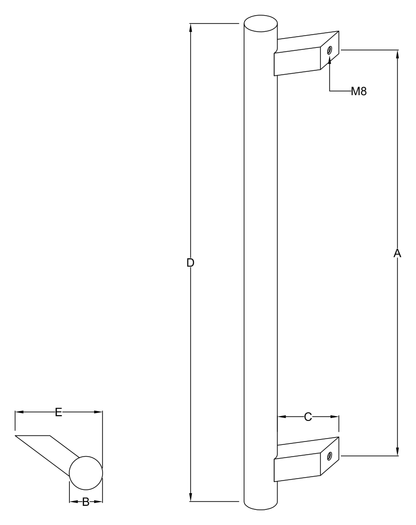

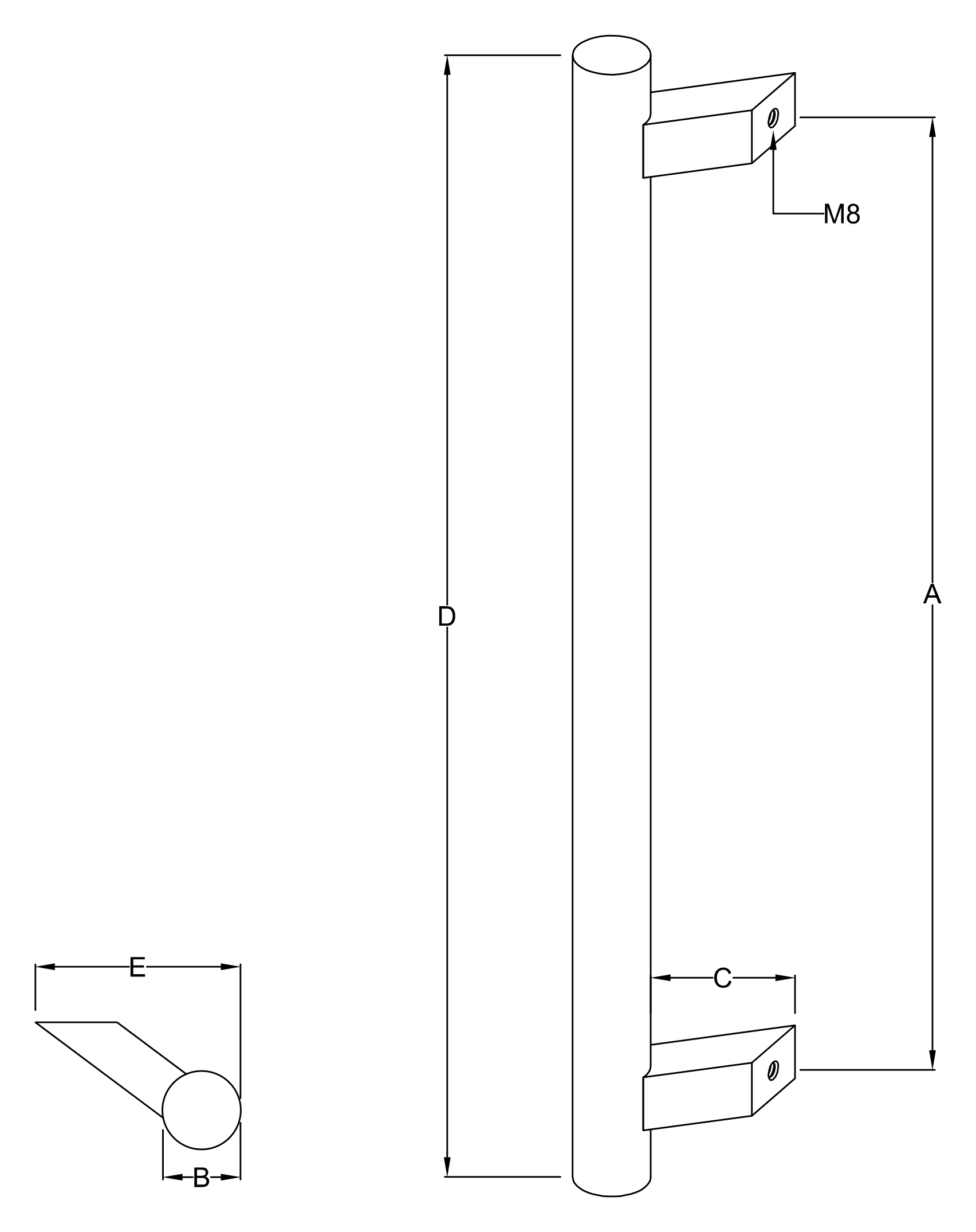

Dimensions
| Fixing centres | Overall length |
|---|---|
| 300mm | 380mm |
| 450mm | 530mm |
| 600mm | 680mm |
| 800mm | 880mm |
| 1000mm | 1080mm |
Profile: 32mm round tube. Clearance from door: 35mm. Offset: 82mm. Projection from door face: 67mm.
Installation
Installation is straightforward and can be completed in minutes. Each handle comes with the correct fixings for standard timber, aluminium or glass doors.
- Measure the fixing centres on the handle and transfer those measurements to the door in the position you want
- Pilot-drill at 3 to 4 mm, then open the holes to 8.5 to 9 mm for the M8 bolts. On a glass door the holes cannot be drilled on site: the panel has to be supplied cut to size and drilled by your glass manufacturer
- Secure the mounting hardware through the door from the inside to outside
- Once the legs are fixed, the handle slides onto the ferrules on the inside of the door and locks tight with grubscrews for a rattle-free finish
For a pair: mark and drill at the fixing centres shown above, then through-bolt the two handles together through the door (an easy DIY back-to-back fit). A printed guide is included with every order.
Everything for this product, downloadable.
The practical information for planning, installing and looking after your entrance, collected in one place.
What arrives.
No mystery at the doorstep. Here is exactly what is included with this product.
- Pull handles as selected (one for a single or two for a pair)
- Through-fix mounting bolts
- Installation template
- Care instructions
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
