Choose single or pair under Sold as. A pair is two handles, one for each side of the door (back-to-back fixing). A single is one handle, for a door you only pull from one side.
The Round Offset Pull Handle 19mm in solid brass, made to order in New Zealand. Choose your finish, polished or brushed, then your coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish that changes over time. Handles are never shipped bare.
The slim one. At 19 mm the bar is a good deal finer than our 32 mm Round Offset, which is what makes it the one to reach for on joinery rather than a front door: drawers, cupboards, wardrobes and office fit-outs, and internal doors where a full entrance bar would look heavy. The lengths below are the standard run. Shorter lengths are made to order, so tell us the size you need and we will price it.

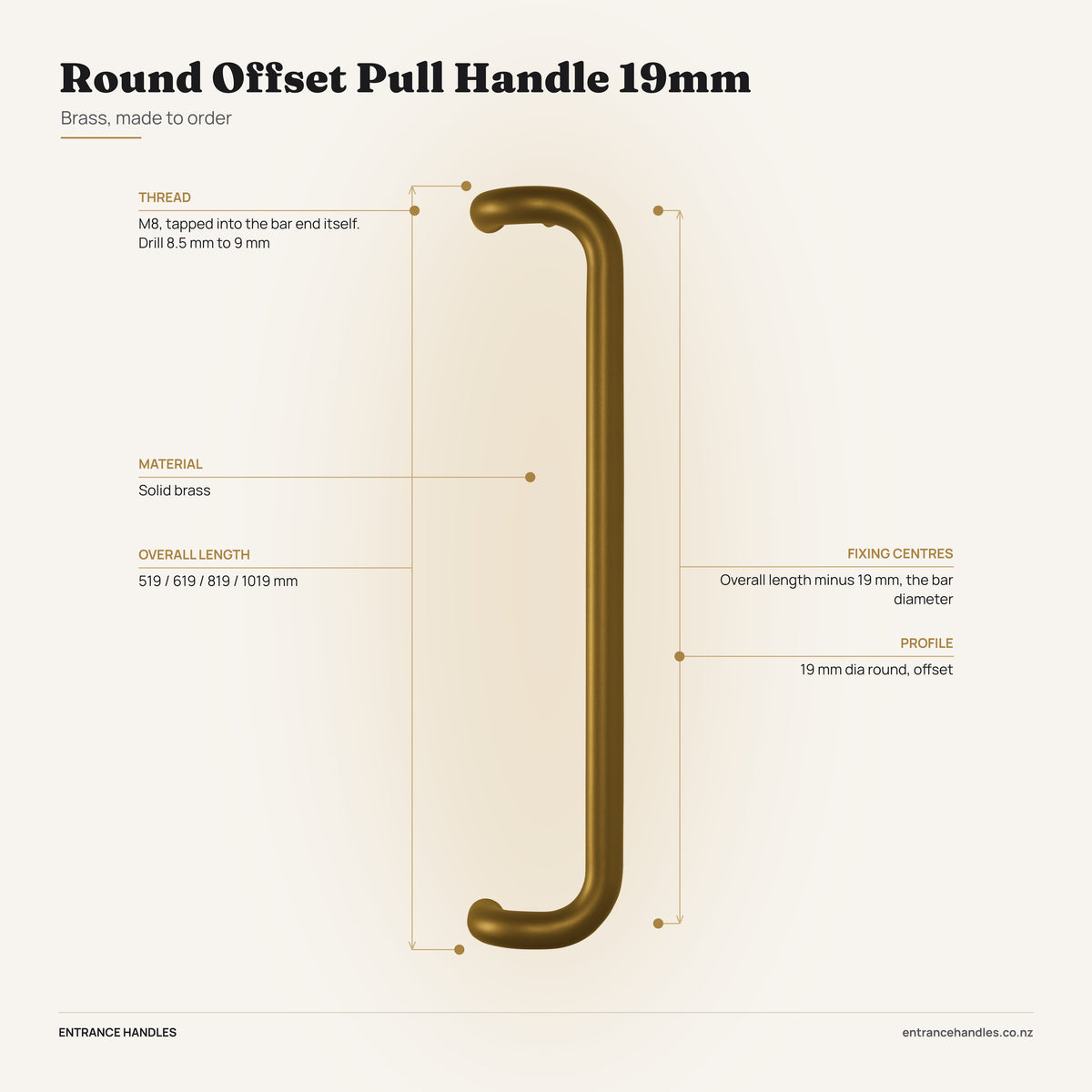

Specifications
- Material: Solid brass
- Finish: Polished or brushed, then a coating: matt clear powder coat, gloss clear powder coat, or a beeswax living finish. Never shipped bare
- Profile: 19 mm dia round, offset
- Sizes (overall length): 519 / 619 / 819 / 1019 mm

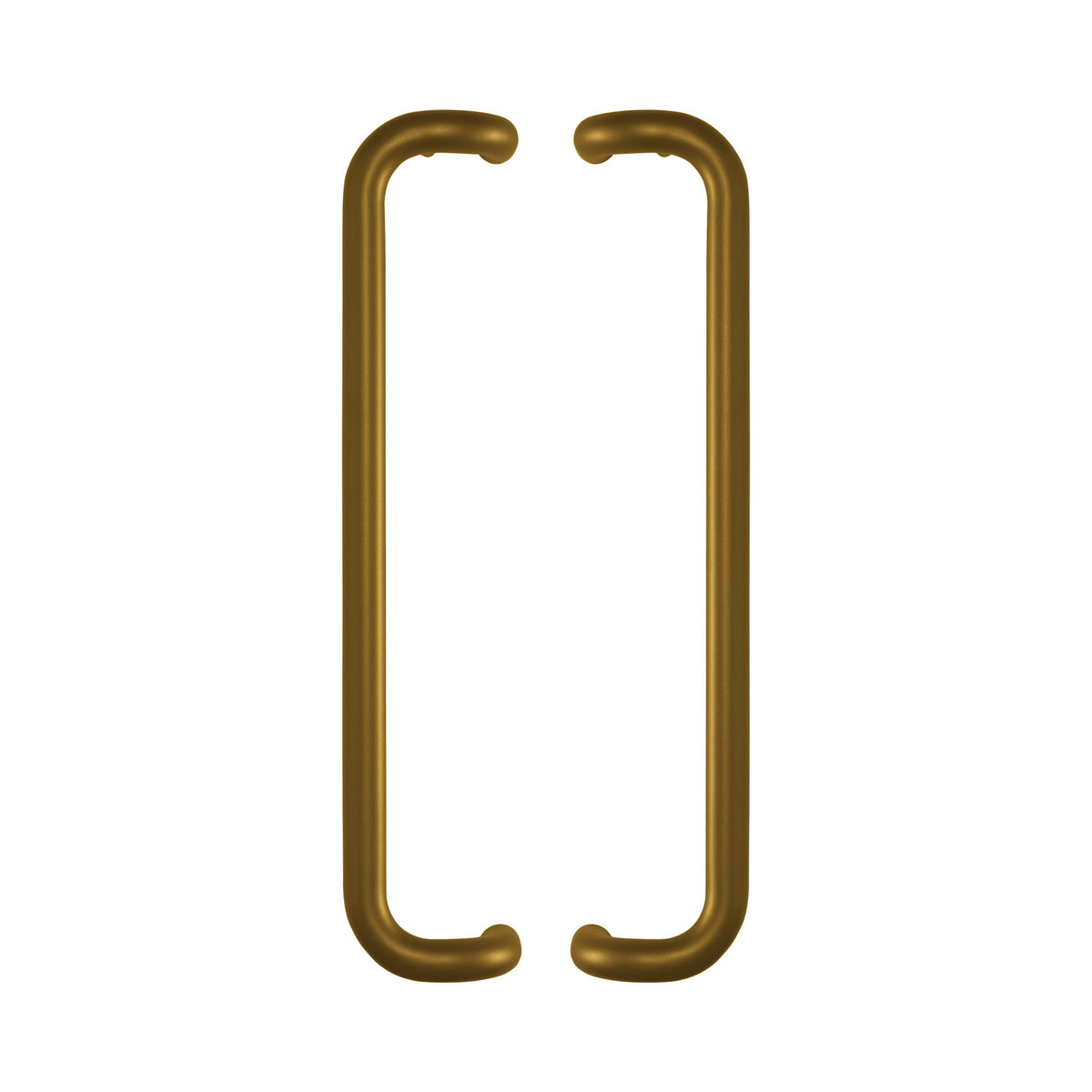

- Configuration: Pair (two handles, back-to-back, through-fixed) or single handle
- Lead time: Made to order - allow 3 to 4 weeks
- Fixing centres: Overall length minus 19 mm, the bar diameter. A 519 mm handle fixes at 500 mm centres.
- Also made to order: shorter lengths for drawers, cupboards and cabinetry. Ask us for a price.
- Thread: M8, tapped into the bar end itself. Drill 8.5 mm to 9 mm
- Screws: 45 mm for glass from 3 mm to 15 mm, 70 mm for doors 25 mm to 40 mm thick. 80 mm screws are available for doors to 50 mm and 90 mm for doors to 60 mm. All figures allow 10 mm of thread engagement
- Single fixing: A single is fixed with a matching round dome on the inside face, threaded into the handle thread
Installation
For a pair: easy DIY back-to-back fit. Mark and drill at the fixing points, then through-bolt the two handles together through the door. A printed guide is included with every order.
Not sure on sizing? Get in touch and we'll help you spec it.
Send us a photo of your door and we will tell you what fits.
A photo, the door thickness, the material, and whether it is a single or a double. That is usually enough for us to come back with the right option and the right size.
